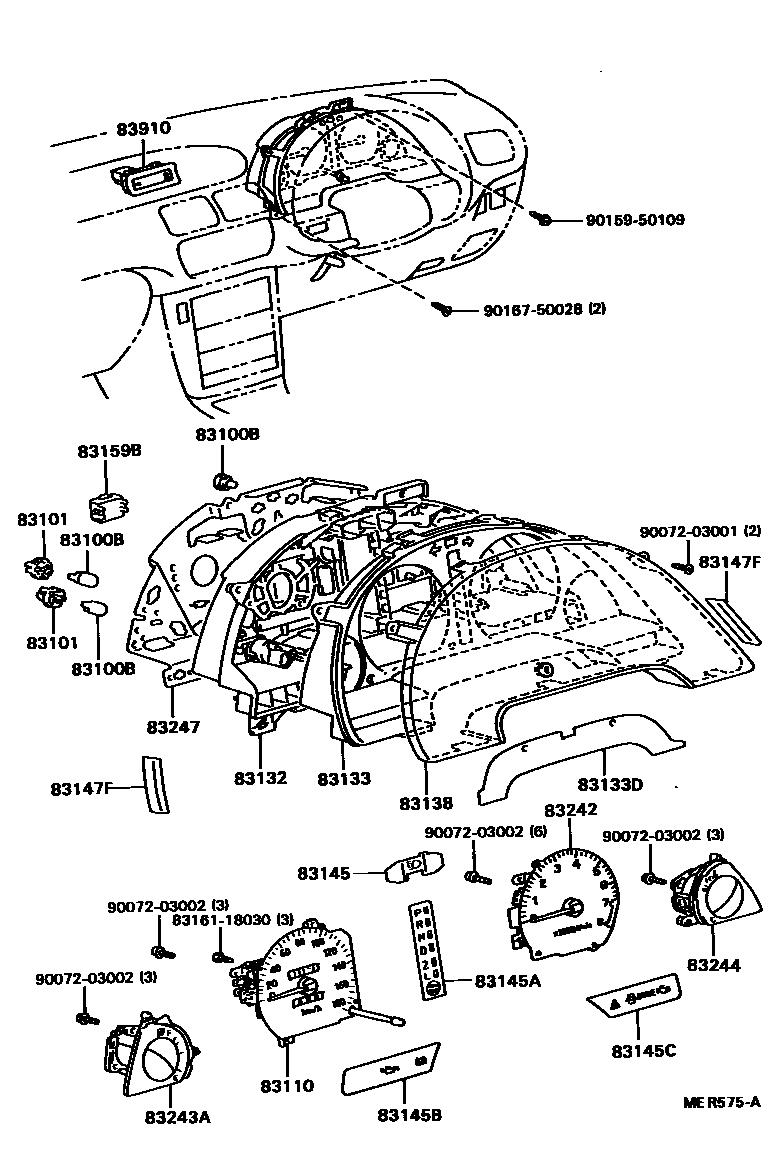

Toyota PASEO — METER

83100BBULB, COMBINATION METER, NO.1

main84999-50010i199104-199508

12V 3.4W

main84999-50020i199104-199208

12V 2.7W

main84999-50040i199104-199208

12V 5.0W

main84999-50180×10i199104-199508

12V 1.2W

main90072-02001×4i199104-199508

12V 3.4W,GREEN CAP

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main84999-50110i199104-199508

12V 3.4W

main90072-01001×4i199104-199508

12V 3.4W,GREEN CAP

83110SPEEDOMETER ASSY

main83110-1G360i199104-199508

83132CASE, COMBINATION METER

main83132-16300i199104-199508

83133PLATE, COMBINATION METER, NO.1

main83133-16220i199104-199508

83133DPLATE, DECORATION

main83133-16180i199104-199508

83138GLASS, SPEEDOMETER

main83138-16240i199104-199508

83145LENS, METER, NO.1

main83145-16340i199104-199508

83145ALENS, METER, NO.2

main83145-16580i199104-199508

83145BLENS, METER, NO.3

main83145-16440i199104-199508

83145CLENS, METER, NO.4

main83145-16660i199104-199508

83147FPACKING, METER

main83147-16150×2i199104-199508

83159BRELAY ASSY, METER

main83159-22170i199104-199508

83242TACHOMETER ASSY, ENGINE

main83242-1G250i199104-199508

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-16220i199104-199508

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83244-16100i199104-199508

83247PLATE, METER CIRCUIT

main83149-16340i199104-199508

83910CLOCK ASSY

main83910-16180-01i199104-199208

BLACK,TRIM2#

main83910-16180-22i199208-199508

BLACK,TRIM2#

8316118030CASE, COMBINATION METER MIRROR, NO.1

main83161-18030

9007203001

main90072-03001

9007203002

main90072-03002

9015950109

main90159-50109

9016750028

main90167-50028

23 parts on this diagram · 2 diagrams in section

METER for Toyota PASEO

This section contains 27 genuine Toyota parts for the METER system of the Toyota PASEO. Key components include: BULB, COMBINATION METER, NO.1, SOCKET SUB-ASSY, COMBINATION METER BULB, SPEEDOMETER ASSY, CASE, COMBINATION METER, PLATE, COMBINATION METER, NO.1.
