Toyota PASEO — DISTRIBUTOR

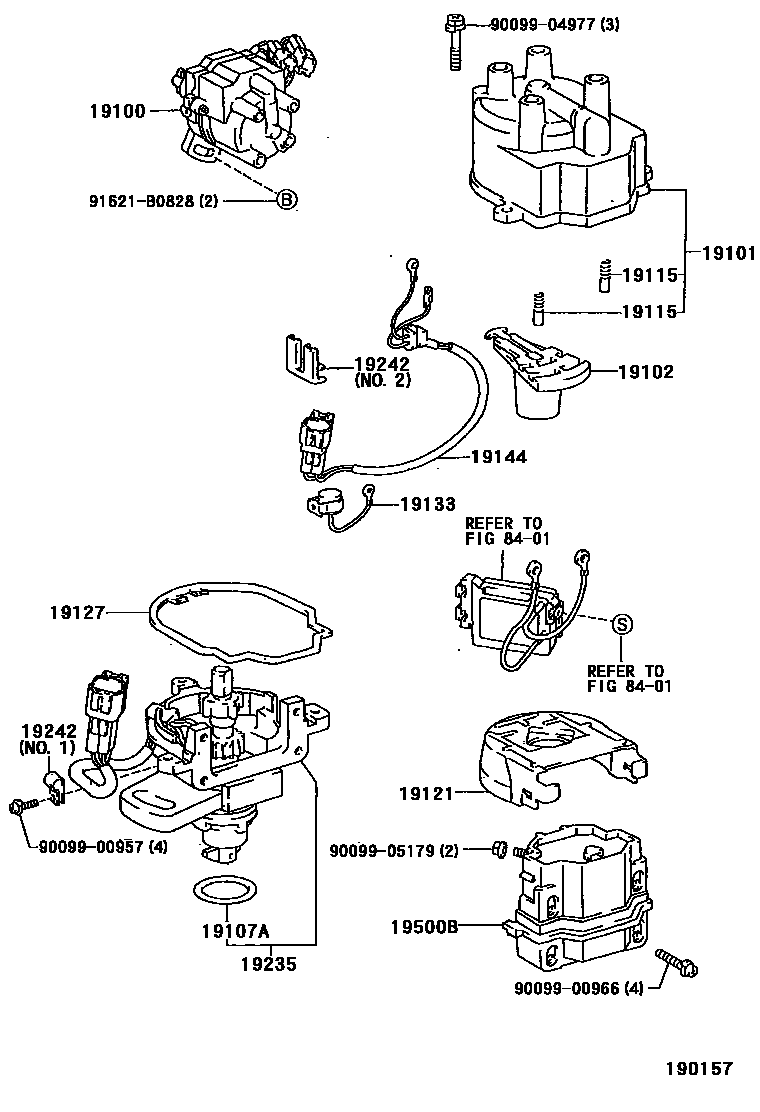

Parts diagram

19100DISTRIBUTOR ASSY

main19020-11410i199512

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-11060i199512

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-16010i199512

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14088i199512

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-63010×2i199512

19121COVER, DUST PROOF

main19121-11080i199512

19127PACKING, DUST PROOF

main19127-15120i199512

19133CONDENSER, DISTRIBUTOR

main19133-16240i199512

19144LEAD, DISTRIBUTOR BREAKER

main19144-11350i199512

19235HOUSING, DISTRIBUTOR

main19235-11340i199512

19242CLAMP, CORD

main19242-11190i199512

NO.1

main19242-11350i199512

NO.2

19500BCOIL ASSY, IGNITION

main90919-02164i199512

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9009900957

main90099-00957

9009900966

main90099-00966

9009904977

main90099-04977

9009905179

main90099-05179

91621B0828

main91621-B0828

18 parts on this diagram · 1 diagram in section

DISTRIBUTOR for Toyota PASEO

This section contains 18 genuine Toyota parts for the DISTRIBUTOR system of the Toyota PASEO. Key components include: DISTRIBUTOR ASSY, CAP SUB-ASSY, DISTRIBUTOR, ROTOR SUB-ASSY, DISTRIBUTOR, RING, O, DISTRIBUTOR HOUSING, PIECE, DISTRIBUTOR CAP, CENTER.
