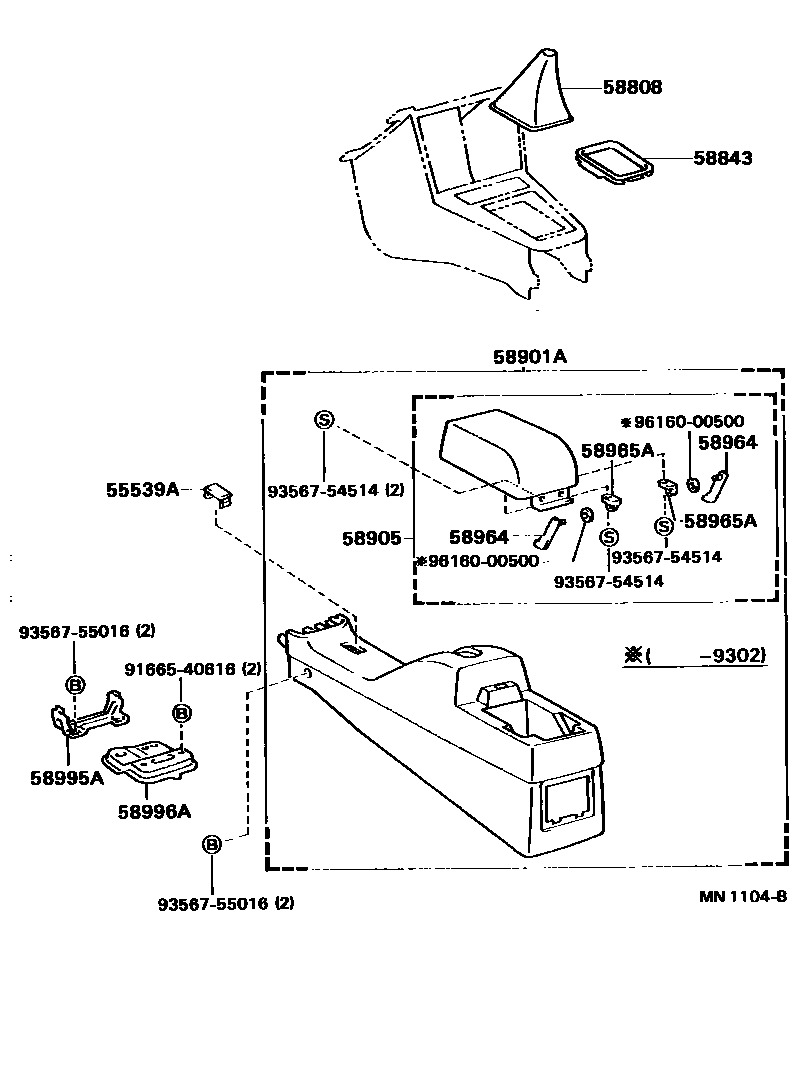

Toyota PASEO — CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-16040-01iEL44199104-199208

BLACK,TRIM2#

main55539-16040-22iEL44..MTM199208-199308

BLACK,TRIM2#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-16090-01iEL44..MTM199104-199208

BLACK,TRIM2#

main58808-16090-22iEL44..MTM199208-199508

BLACK,TRIM2#

58843BEZEL, SHIFTING HOLE

main58843-16030-01iEL44..ATM199104-199208

BLACK,TRIM2#

main58843-16030-22iEL44..ATM199208-199508

BLACK,TRIM2#

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-16090-01iEL44199104-199208

BLACK,TRIM2#

main58901-16090-22iEL44199208-199508

BLACK,TRIM2#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-16030-01iEL44199104-199208

BLACK,TRIM2#

main58905-16030-C0iEL44199208-199508

BLACK,TRIM2#

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-12040iEL44199302-199305

LH

main58964-16010iEL44199305-199508

LH

main58964-30040iEL44199104-199302

LH

main58964-32040iEL44199104-199302

RH

main58965-12040iEL44199302-199305

RH

main58965-16010iEL44199305-199508

RH

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58965-12010iEL44199104-199508

LH

main58965-20020iEL44199104-199508

RH

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-16060iEL44199104-199508

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-16060iEL44199104-199508

9166540616

main91665-40616

9356754514

main93567-54514

9356755016

main93567-55016

9616000500

main96160-00500

13 parts on this diagram · 1 diagram in section
