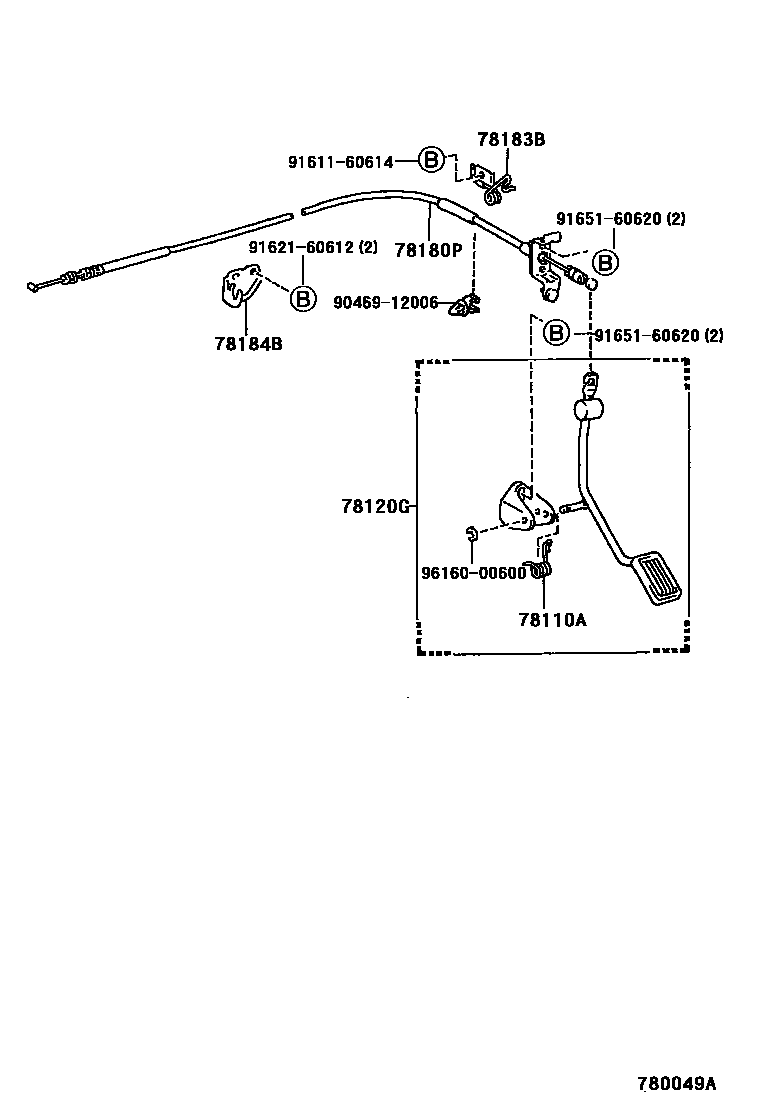

Toyota PASEO — ACCELERATOR LINK

0001 1 0002 1

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-17003iEL54..LHD199508

main90508-20114iEL54..ATM..ARL199508

main90959-03007iEL54..RHD..MTM199508

78120GROD ASSY, ACCELERATOR PEDAL

main78120-16100iEL54..LHD199508

main78120-16120iEL54..ATM..ARL199508

main78120-16130iEL54..RHD..MTM199508

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-16300iEL54..LHD..EUR199512

main78180-16410iEL54..ARL199508

main78180-16420iEL54..RHD..EUR199512

main78180-16440iEL54..GEN199508-199702

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-10061iEL54..RHD199508

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-16070iEL54199508

9046912006

main90469-12006

9161160614

main91611-60614

9162160612

main91621-60612

9165160620

main91651-60620

9616000600

main96160-00600

10 parts on this diagram · 2 diagrams in section
