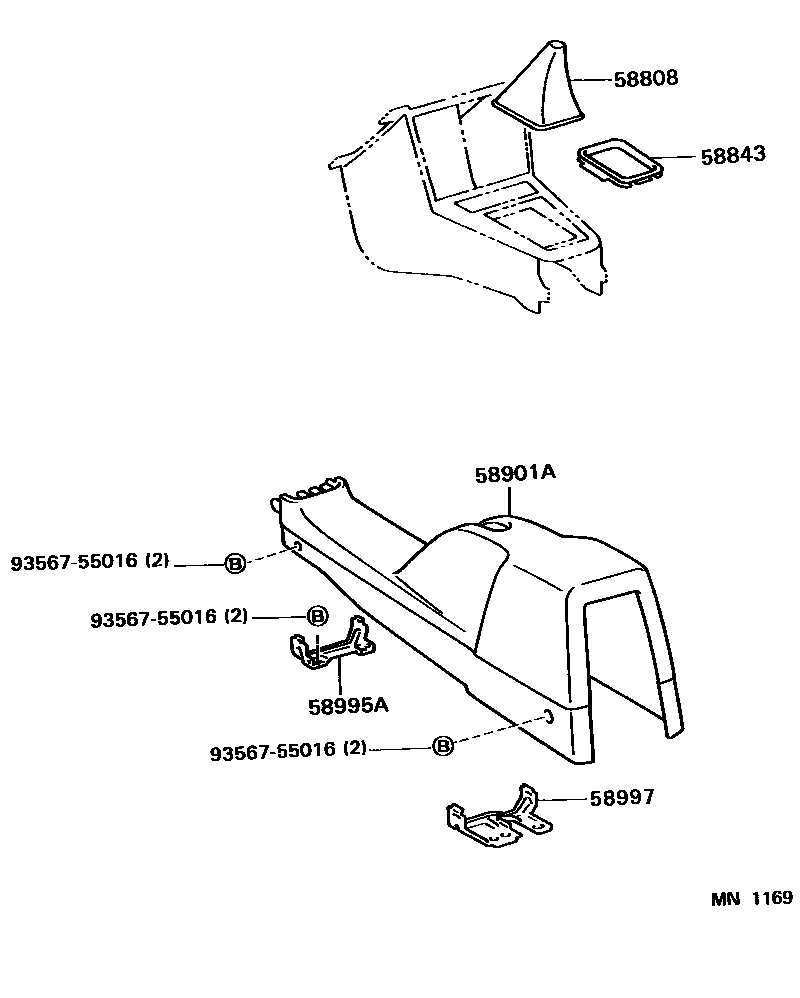

Toyota PASEO — CONSOLE BOX & BRACKET
58808COVER SUB-ASSY, SHIFTING HOLE
BLACK,TRIM2#
GRAYISH BLUE,TRIM8#
BLACK,TRIM2#
EISEN BLUE,TRIM8#
58843BEZEL, SHIFTING HOLE
BLACK,TRIM2#
GRAYISH BLUE,TRIM8#
BLACK,TRIM2#
EISEN BLUE,TRIM8#
58901ABOX SUB-ASSY, CONSOLE, REAR
BLACK,TRIM2#
GRAYISH BLUE,TRIM8#
BLACK,TRIM2#
EISEN BLUE,TRIM8#
BLACK,TRIM2#
GRAYISH BLUE,TRIM8#
BLACK,TRIM2#
EISEN BLUE,TRIM8#
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
58997BRACKET, CONSOLE BOX MOUNTING, NO.3
9356755016
main93567-55016
6 parts on this diagram · 1 diagram in section
CONSOLE BOX & BRACKET for Toyota PASEO
This section contains 6 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota PASEO. Key components include: COVER SUB-ASSY, SHIFTING HOLE, BEZEL, SHIFTING HOLE, BOX SUB-ASSY, CONSOLE, REAR, BRACKET, CONSOLE BOX MOUNTING, NO.1, BRACKET, CONSOLE BOX MOUNTING, NO.3.
