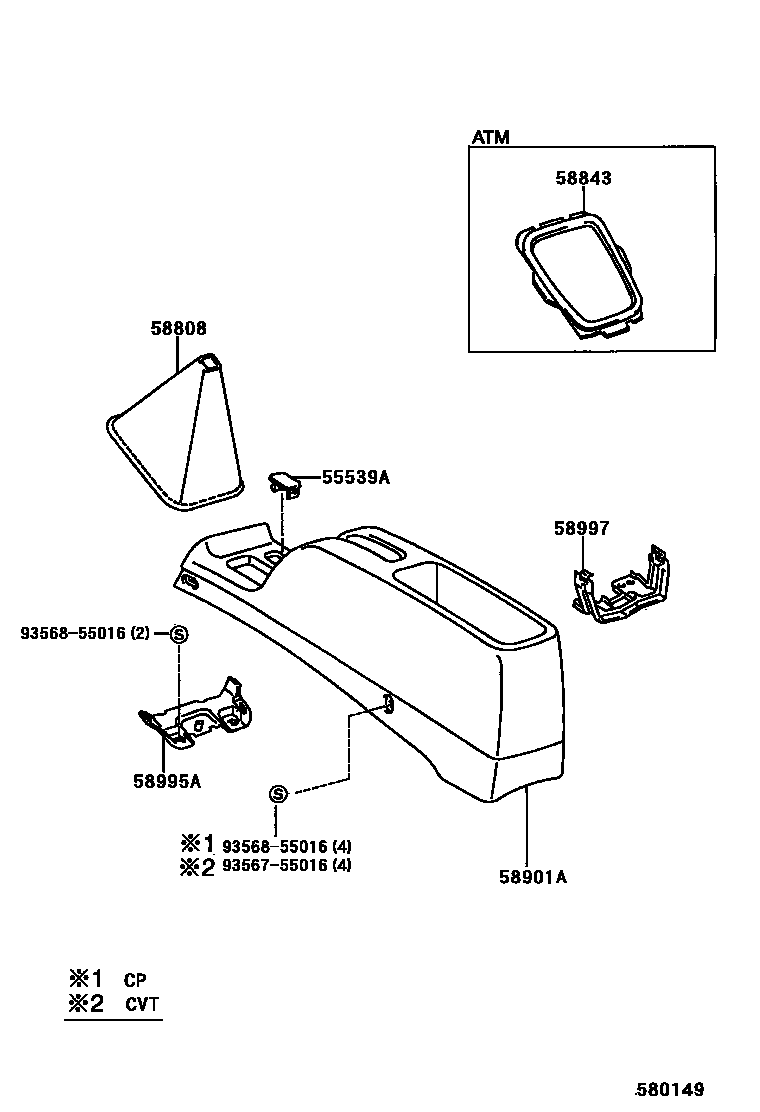

Toyota PASEO — CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-12120-B0iEL54199508-199712

SHADOW GRAY,TRIM1#

sub55539-32010

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-16100-B1iEL54..MTM199508-199907

SHADOW GRAY,TRIM1#

58843BEZEL, SHIFTING HOLE

main58843-16040-B1iEL54..ATM199508

SHADOW GRAY,TRIM1#

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-16150-B1iEL54199508

SHADOW GRAY,TRIM1#

sub58901-16130

sub74109-20080

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-16070iEL54199508

58997BRACKET, CONSOLE BOX MOUNTING, NO.3

main58997-16070iEL54199508

9356755016

main93567-55016

9356855016

main93568-55016

8 parts on this diagram · 1 diagram in section
