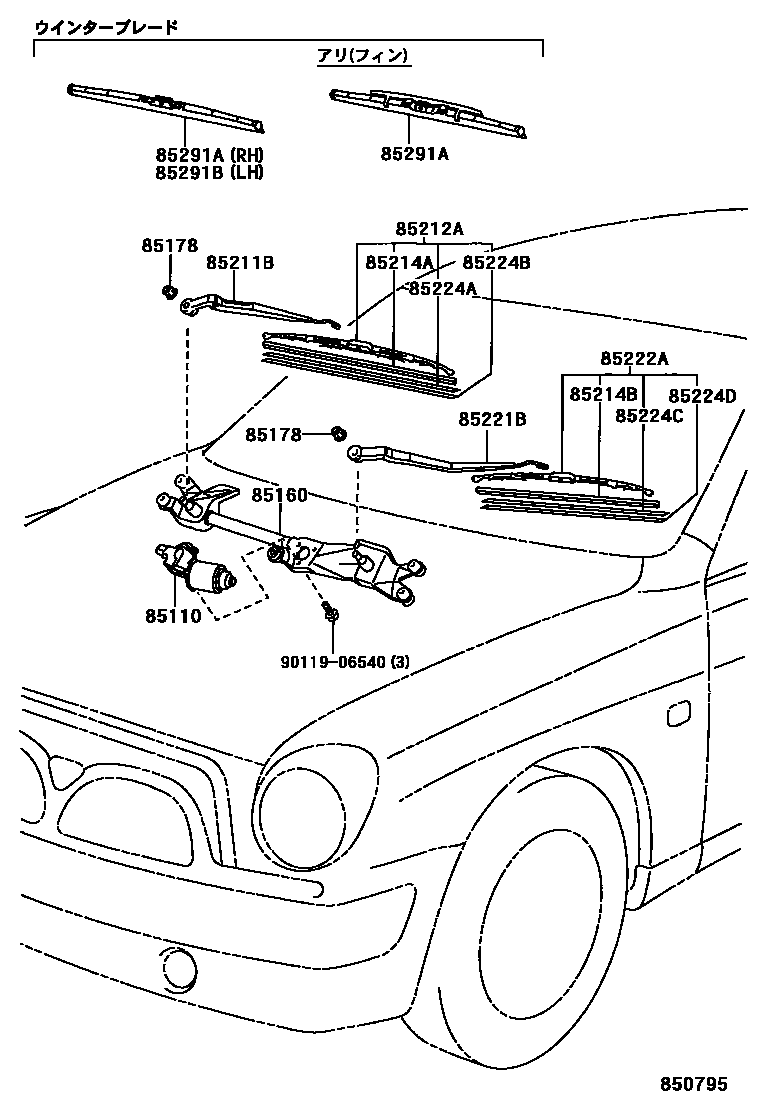

Toyota ORIGIN — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-51010iJCG17200008

main85110-51020iJCG17200008

85160LINK ASSY, WINDSHIELD WIPER

main85150-51010iJCG17200008

main85150-51020iJCG17200008

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-10005×2iJCG17200008

85211BARM, FRONT WIPER, RH

main85211-51010iJCG17200008

main85211-51020iJCG17200008

85212ABLADE, FR WIPER, RH

main85212-51010iJCG17200008

sub85212-50080

85214ARUBBER, WIPER, RH

main85214-51010iJCG17200008

sub85214-50120

85214BRUBBER, WIPER, LH

main85214-51020iJCG17200008

sub85214-51030

85221BARM, FRONT WIPER, LH

main85221-51010iJCG17200008

main85221-51020iJCG17200008

85222ABLADE, FR WIPER, LH

main85222-51010iJCG17200008

sub85222-51020

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-44010iJCG17200008

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-44010iJCG17200008

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-10190iJCG17200008

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-10190iJCG17200008

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-13030iJCG17200008

sub85291-24090

main85291-13040iJCG17200008

sub85291-24100

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-60070iJCG17200008

9011906540

main90119-06540

16 parts on this diagram · 1 diagram in section
