Toyota ORIGIN — WINDSHIELD WIPER
85178NUT (FOR FRONT WIPER ARM SETTING)
85212ABLADE, FR WIPER, RH
85214ARUBBER, WIPER, RH
85214BRUBBER, WIPER, LH
85222ABLADE, FR WIPER, LH
85224APLATE, WIPER RUBBER BACKING, NO.1
85224BPLATE, WIPER RUBBER BACKING, NO.2
85224CPLATE, WIPER RUBBER BACKING, NO.3
85224DPLATE, WIPER RUBBER BACKING, NO.4
85291BBLADE, FRONT WIPER, WINTER, LH
9011906540
main90119-06540

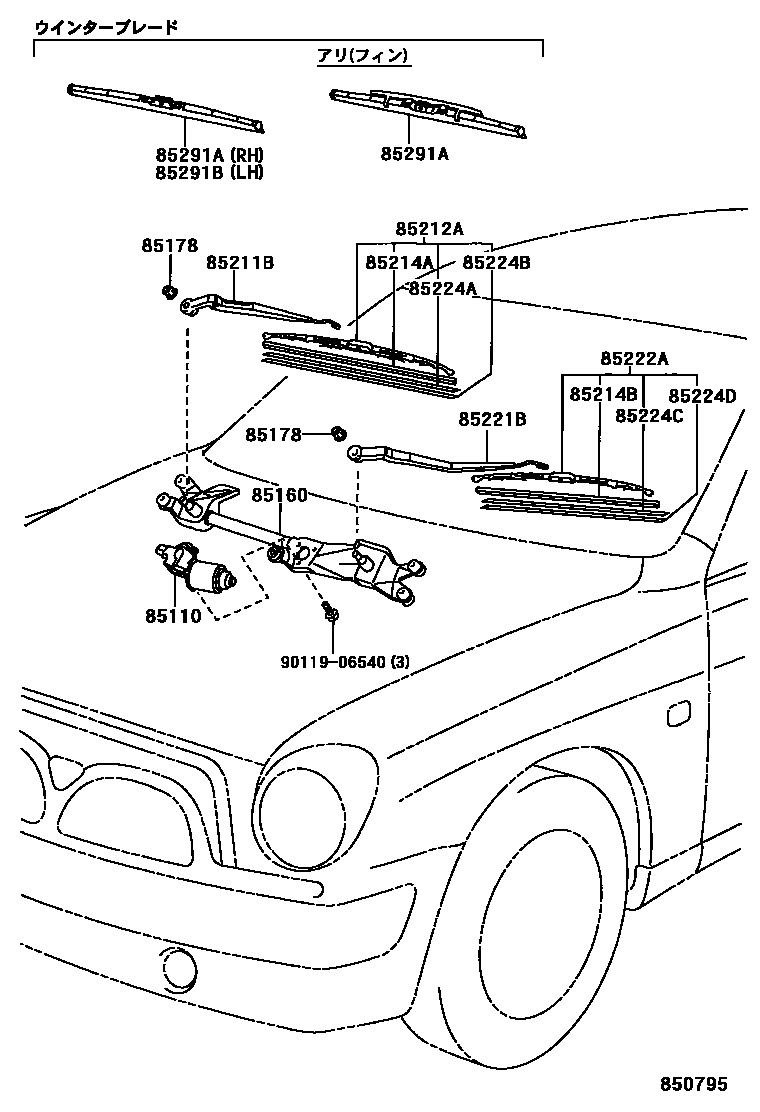

16 parts on this diagram · 1 diagram in section
WINDSHIELD WIPER for Toyota ORIGIN
This section contains 16 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota ORIGIN. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, NUT (FOR FRONT WIPER ARM SETTING), ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH.
