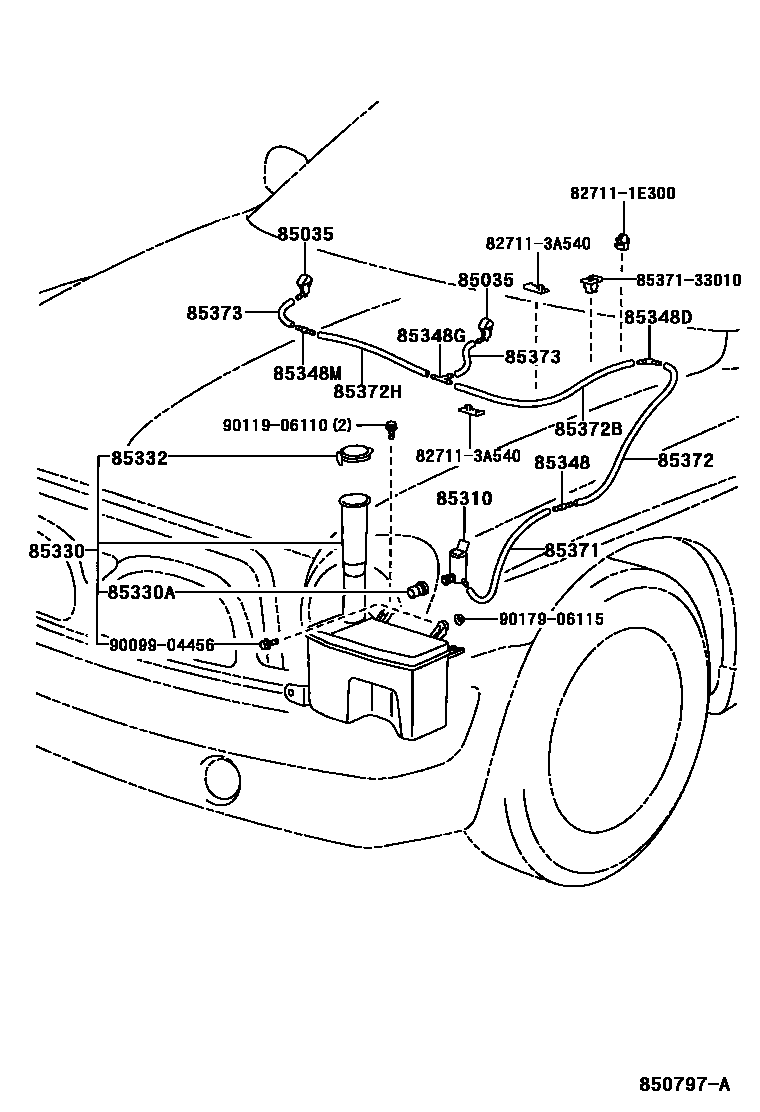

Toyota ORIGIN — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-51010-C0×2iJCG17200008

BLACK,202

sub85381-43010

sub85385-40010

main85381-51010-J0×2iJCG17200008

BLUE MC.,8J9

sub85381-43010

sub85385-40010

main85381-51010-J1×2iJCG17200008

LT.GRAYISH BLUE M.M.,8M3

sub85381-43010

sub85385-40010

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-10280iJCG17200008

85330JAR ASSY, WINDSHIELD WASHER

main85315-51020iJCG17200008

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iJCG17200008

85332CAP, WINDSHIELD WASHER JAR

main85316-26030iJCG17200008

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iJCG17200008

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-20200iJCG17200008

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85348-12250iJCG17200008

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85349-89122iJCG17200008

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33299iJCG17200008

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-07001iJCG17200008

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33299iJCG17200008

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90446-07001iJCG17200008

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33299×2iJCG17200008

827111E300WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E300

827113A540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A540

8537133010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-33010

9009904456

main90099-04456

9011906110

main90119-06110

9017906115

main90179-06115

20 parts on this diagram · 1 diagram in section
