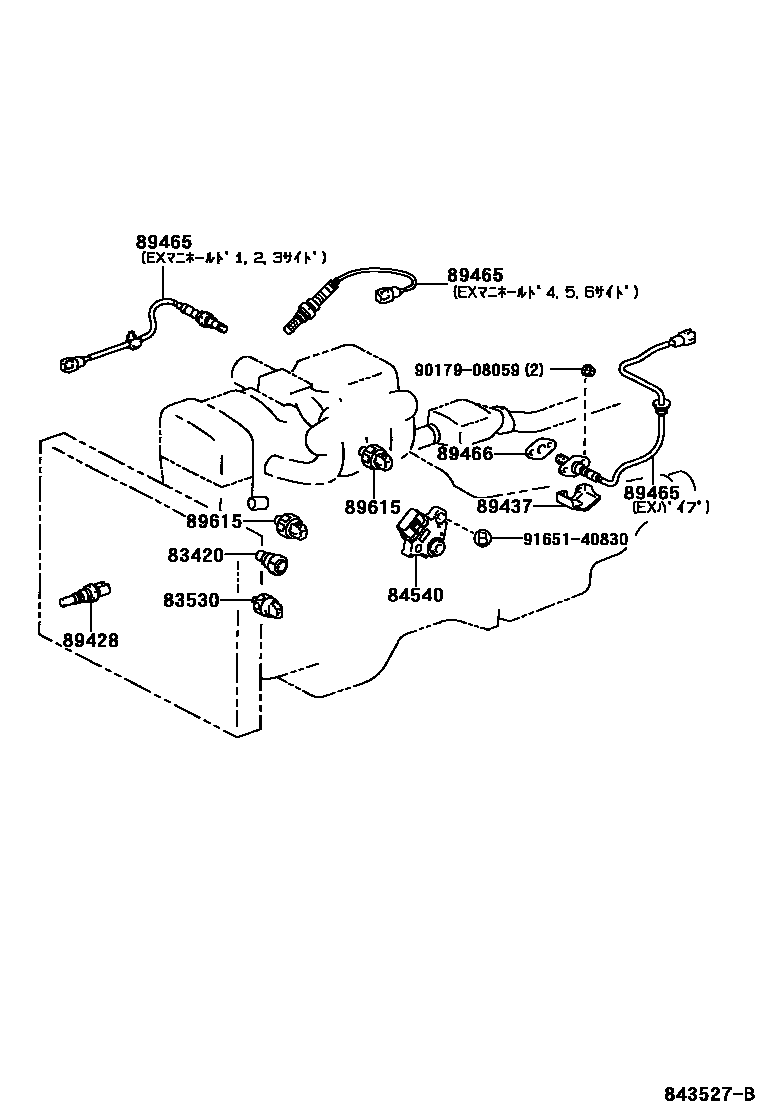

Toyota ORIGIN — SWITCH & RELAY & COMPUTER

0001 1����� & ��������� 0002 1������-� 0003 1��� 0004 1������������ 0005 1�������� & �����-��� ���� 0006 1���,�-�,��� & ����-��

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-30020iJCG17200008

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iJCG17200008

main83530-60020iJCG17200008

84540SWITCH ASSY, NEUTRAL START

main84540-51010iJCG17200008

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-24010iJCG17200008

89437COVER, SENSOR

main89437-51010iJCG17200008

89465SENSOR, OXYGEN

main89465-33200iJCG17200008

main89465-51020iJCG17200008

main89465-51030iJCG17200008

89466GASKET, OXYGEN SENSOR

main89466-20020iJCG17200008

89615SENSOR, KNOCK CONTROL

main89615-12090×2iJCG17200008

9017908059

main90179-08059

9165140830

main91651-40830

10 parts on this diagram · 6 diagrams in section
