Toyota ORIGIN — SWITCH & RELAY & COMPUTER

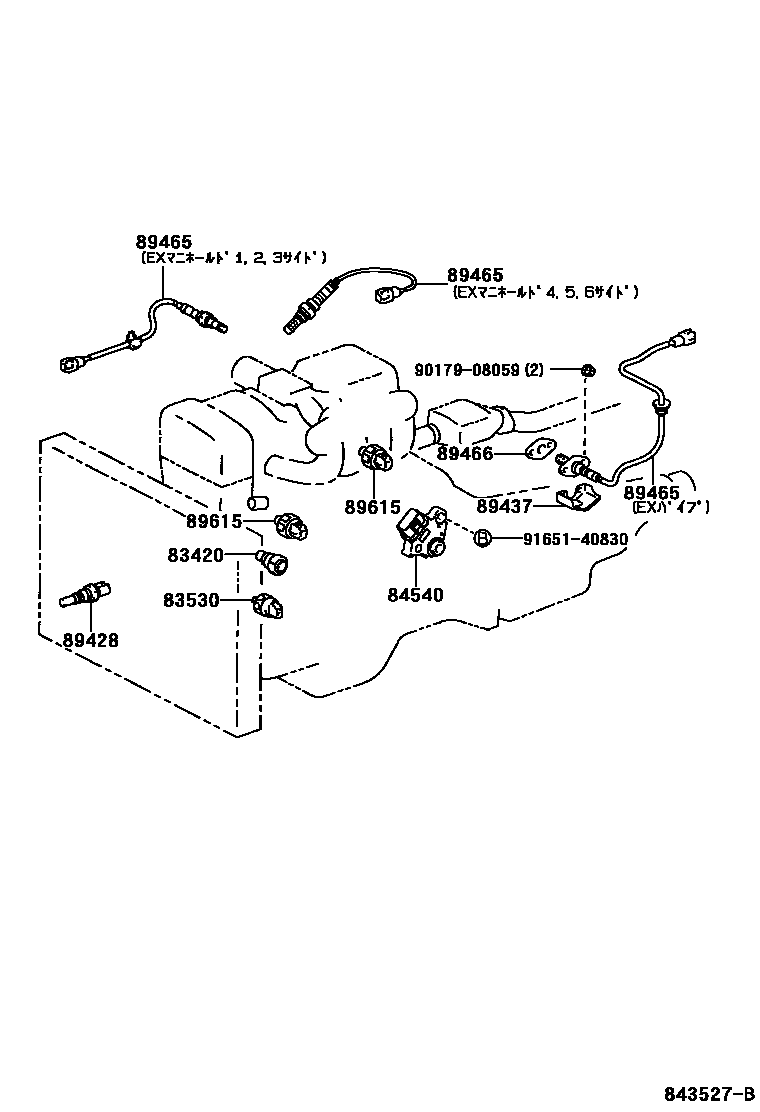

Parts diagram

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-30020i200008

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020i200008

main83530-60020i200008

84540SWITCH ASSY, NEUTRAL START

main84540-51010i200008

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-24010i200008

89437COVER, SENSOR

main89437-51010i200008

89465SENSOR, OXYGEN

main89465-33200i200008

main89465-51020i200008

main89465-51030i200008

89466GASKET, OXYGEN SENSOR

main89466-20020i200008

89615SENSOR, KNOCK CONTROL

main89615-12090×2i200008

9017908059

main90179-08059

9165140830

main91651-40830

10 parts on this diagram · 6 diagrams in section

SWITCH & RELAY & COMPUTER for Toyota ORIGIN

This section contains 122 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota ORIGIN. Key components include: COVER, FUEL PUMP RESISTOR, RELAY ASSY, STARTER, RESISTER, FUEL PUMP, KNOB SUB-ASSY, CONTROL, NO.1, KNOB SUB-ASSY, CONTROL, NO.2.
