Toyota ORIGIN — STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-51050-C0i200008

45130BUTTON ASSY, HORN

main45130-51030-C0i200008

BLACK,TRIM0#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-60030-C0i200008

BLACK,TRIM0#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-50030-C0i200008

BLACK,TRIM0#

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-60010×2i200008

45201PNUT, STEERING WHEEL SET

main90179-12071i200008

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

7 parts on this diagram · 1 diagram in section

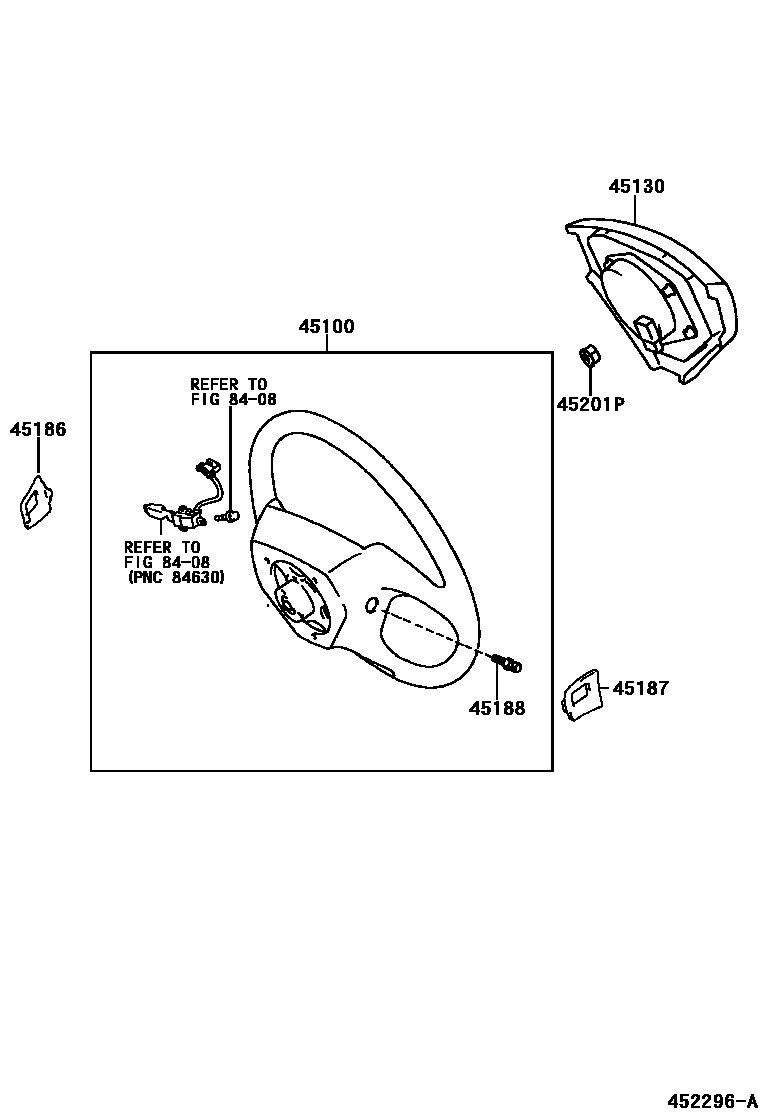

STEERING WHEEL for Toyota ORIGIN

This section contains 7 genuine Toyota parts for the STEERING WHEEL system of the Toyota ORIGIN. Key components include: WHEEL ASSY, STEERING, BUTTON ASSY, HORN, COVER, STEERING WHEEL, LOWER NO.2, COVER, STEERING WHEEL, LOWER NO.3, SCREW, STEERING WHEEL PAD ATTACHING.
