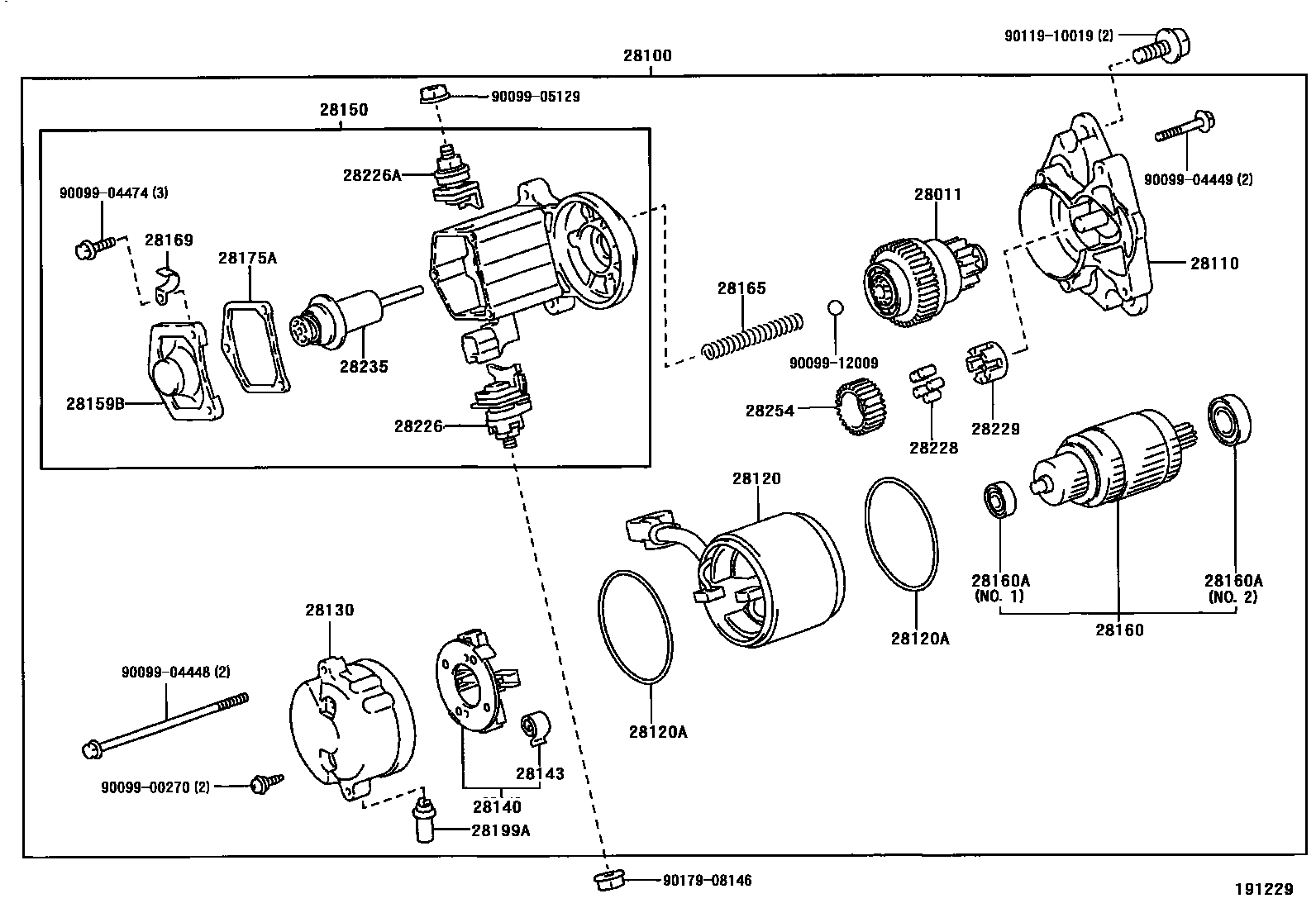

Toyota ORIGIN — STARTER

28011CLUTCH SUB-ASSY, STARTER

main28011-76070i2JZGE..JCG17200008

28100STARTER ASSY

main28100-46140i2JZGE..JCG17200008

28110HOUSING ASSY, STARTER DRIVE

main28110-46090i2JZGE..JCG17200008

28120YOKE ASSY, STARTER

main28120-66040i2JZGE..JCG17200008

28120ARING, O(FOR STARTER YOKE)

main90099-14064×2i2JZGE..JCG17200008

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-46090i2JZGE..JCG17200008

28140HOLDER ASSY, STARTER BRUSH

main28140-76070i2JZGE..JCG17200008

28143SPRING, STARTER BRUSH

main90099-17112×4i2JZGE..JCG17200008

28150SWITCH ASSY, MAGNET STARTER

main28150-46150i2JZGE..JCG17200008

28159BCOVER, MAGNET SWITCH

main28159-55050i2JZGE..JCG17200008

28160ARMATURE ASSY, STARTER

main28160-74070i2JZGE..JCG17200008

28160ABEARING, STARTER ARMATURE

main90099-10196i2JZGE..JCG17200008

main90099-10197i2JZGE..JCG17200008

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-76070i2JZGE..JCG17200008

28169CLAMP, STARTER MOTOR LEAD WIRE

main28169-55050i2JZGE..JCG17200008

28175AGASKET, MAGNET SWITCH COVER

main28175-55050i2JZGE..JCG17200008

28199APROTECTOR, DUST STARTER

main28199-74110i2JZGE..JCG17200008

28226STARTER KIT, BATTERY TERMINAL

main28226-64200i2JZGE..JCG17200008

sub28226-22050

28226ASTARTER KIT, MOTOR TERMINAL

main28226-74070i2JZGE..JCG17200008

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-26040×5i2JZGE..JCG17200008

28229RETAINER, STARTER IDLE GEAR

main28229-74070i2JZGE..JCG17200008

28235PLUNGER, MAGNET SWITCH

main28235-55050i2JZGE..JCG17200008

28254PINION, STARTER IDLE GEAR

main28254-74070i2JZGE..JCG17200008

9009900270

main90099-00270

9009904448

main90099-04448

9009904449

main90099-04449

9009904474

main90099-04474

9009905129

main90099-05129

9009912009

main90099-12009

9011910019

main90119-10019

9017908146

main90179-08146

30 parts on this diagram · 1 diagram in section
