Toyota ORIGIN — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-22230-A0i200008

IVORY,TRIM0#

87816SPRING, INNER REAR VIEW MIRROR

main74372-50010i200008

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-22070-A0i200008

IVORY,TRIM0#

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87901-51010i200008

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87906-51010i200008

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-51010-C0i200008

BLACK,202

main87910-51010-J2i200008

BLUE MC.,8J9

main87910-51010-J3i200008

LT.GRAYISH BLUE M.M.,8M3

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-51010-C0i200008

BLACK,202

main87940-51010-J2i200008

BLUE MC.,8J9

main87940-51010-J3i200008

LT.GRAYISH BLUE M.M.,8M3

9010506102

main90105-06102

9321915014

main93219-15014

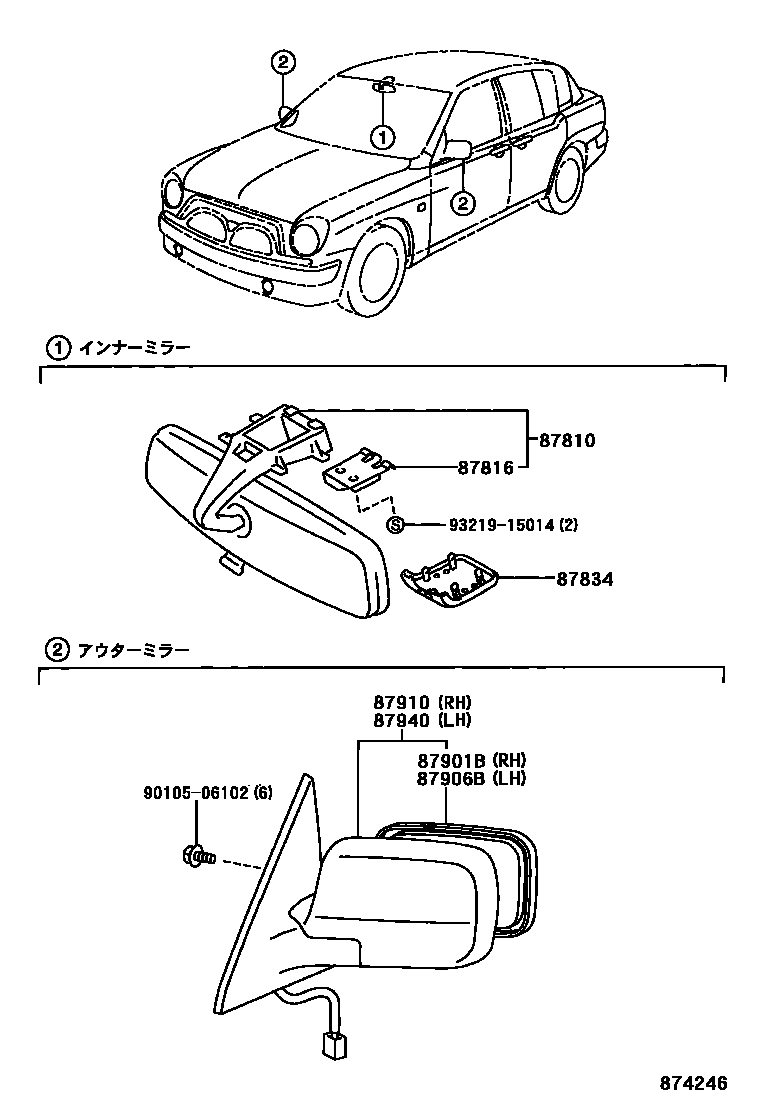

9 parts on this diagram · 1 diagram in section

MIRROR for Toyota ORIGIN

This section contains 9 genuine Toyota parts for the MIRROR system of the Toyota ORIGIN. Key components include: MIRROR ASSY, INNER REAR VIEW, SPRING, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH.
