Toyota ORIGIN — METER

0001 1��������� 0002 1����� & ����

83110SPEEDOMETER ASSY

main83220-51040iJCG17200008-200104

83132CASE, COMBINATION METER

main83841-51010iJCG17200008-200104

83133PLATE, COMBINATION METER, NO.1

main83811-51010iJCG17200008-200104

83133CPLATE, COMBINATION METER,NO.4

main83814-30710×16iJCG17200008-200104

83134COVER, COMBINATION METER, NO.1

main83821-51010iJCG17200008-200104

83138GGLASS, COMBINATION METER

main83852-51010iJCG17200008-200104

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83882-51060iJCG17200008-200104

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83883-51060iJCG17200008-200104

83247PLATE, METER CIRCUIT

main83861-51010iJCG17200008-200104

83247BPLATE, METER CIRCUIT, NO.2

main83812-51010iJCG17200008-200104

83291COMPUTER, COMBINATION METER

main83291-51020iJCG17200008-200104

83864PLATE, METER CIRCUIT, NO.4 (FOR COMPUTER)

main83864-51030iJCG17200008-200104

83910CLOCK ASSY

main83910-51020-C0iJCG17200008

BLACK,TRIM0#

83915BRACKET, CLOCK

main83915-51010iJCG17200008

9009900182

main90099-00182

9009900284

main90099-00284

9009900929

main90099-00929

9356755016

main93567-55016

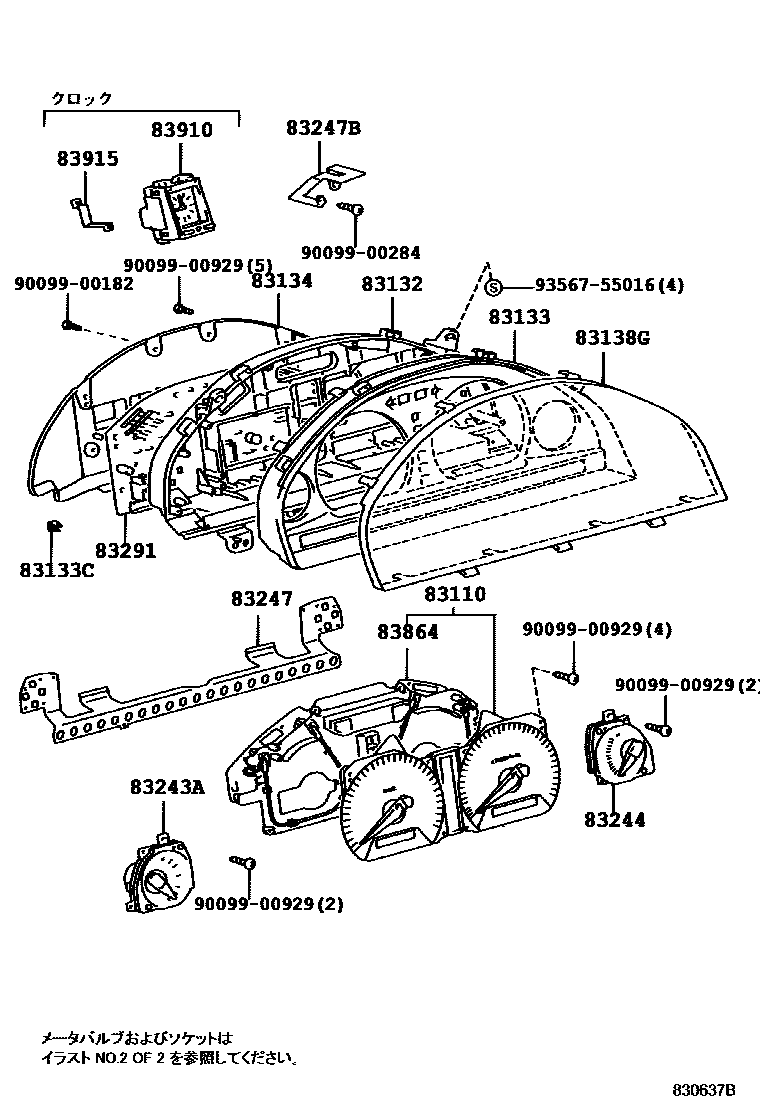

18 parts on this diagram · 2 diagrams in section
