Toyota ORIGIN — METER
83110SPEEDOMETER ASSY
83132CASE, COMBINATION METER
83133PLATE, COMBINATION METER, NO.1
83133CPLATE, COMBINATION METER,NO.4
83134COVER, COMBINATION METER, NO.1
83138GGLASS, COMBINATION METER
83243AGAUGE SUB-ASSY, FUEL RECEIVER
83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER
83247PLATE, METER CIRCUIT
83247BPLATE, METER CIRCUIT, NO.2
83291COMPUTER, COMBINATION METER
83864PLATE, METER CIRCUIT, NO.4 (FOR COMPUTER)
83910CLOCK ASSY
BLACK,TRIM0#
83915BRACKET, CLOCK
9009900182
main90099-00182
9009900284
main90099-00284
9009900929
main90099-00929
9356755016
main93567-55016

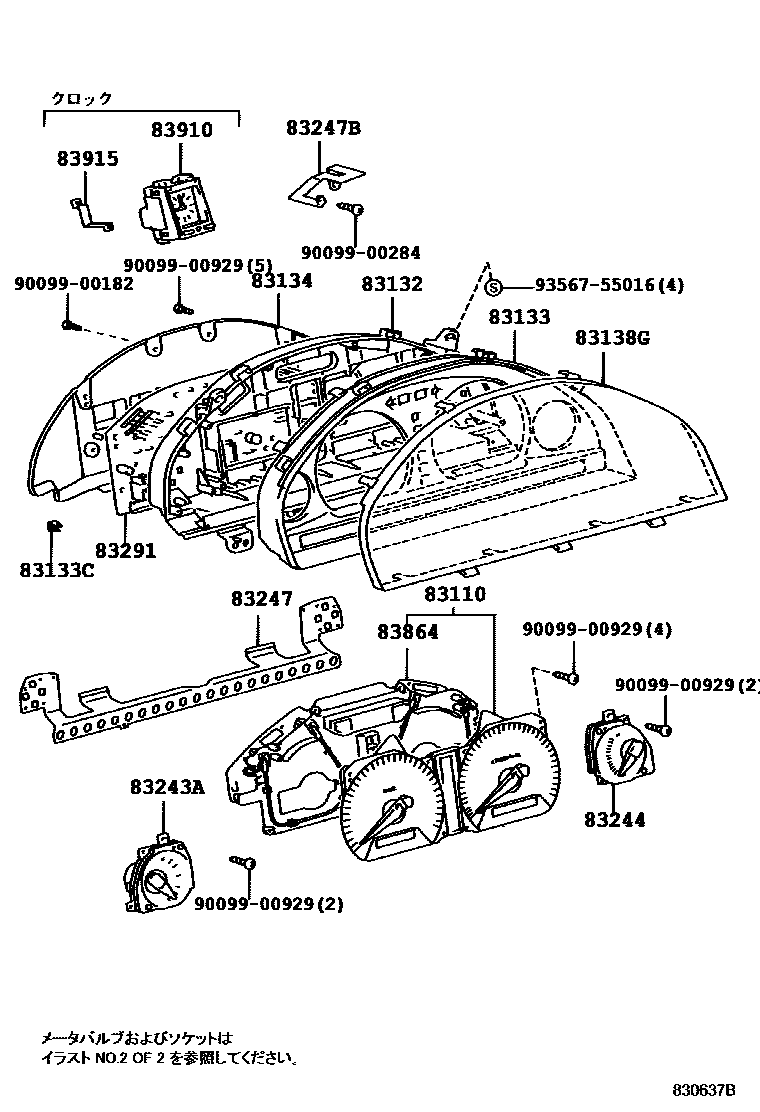

18 parts on this diagram · 2 diagrams in section
METER for Toyota ORIGIN
This section contains 21 genuine Toyota parts for the METER system of the Toyota ORIGIN. Key components include: BULB, COMBINATION METER, NO.1, SOCKET SUB-ASSY, COMBINATION METER BULB, SPEEDOMETER ASSY, BULB ASSY, COMBINATION METER, CASE, COMBINATION METER.
