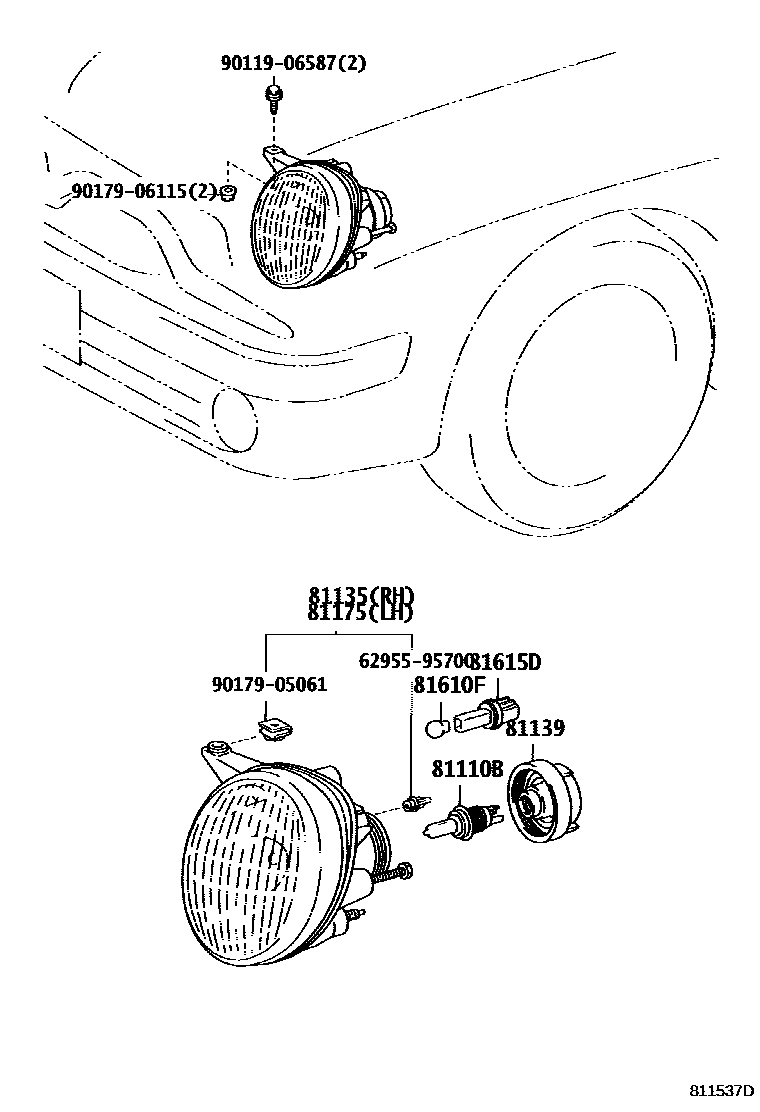

Toyota ORIGIN — HEADLAMP

81110BBULB(FOR HEADLAMP, NO.1)

main90981-22004×2i200008-200104

81135UNIT ASSY, HEADLAMP, RH

main81130-51030i200008-200104

81139COVER, HEADLAMP SOCKET

main90075-65002×2i200008-200104

81175UNIT ASSY, HEADLAMP, LH

main81170-51030i200008-200104

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2i200008-200104

81615DSOCKET, CLEARANCE LAMP

main90075-60004×2i200008-200104

6295595700SEAL, ROOF SIDE VENT

main62955-95700

9011906587

main90119-06587

9017905061

main90179-05061

9017906115

main90179-06115

10 parts on this diagram · 1 diagram in section

HEADLAMP for Toyota ORIGIN

This section contains 10 genuine Toyota parts for the HEADLAMP system of the Toyota ORIGIN. Key components include: BULB(FOR HEADLAMP, NO.1), UNIT ASSY, HEADLAMP, RH, COVER, HEADLAMP SOCKET, UNIT ASSY, HEADLAMP, LH, BULB(FOR CLEARANCE LAMP).
