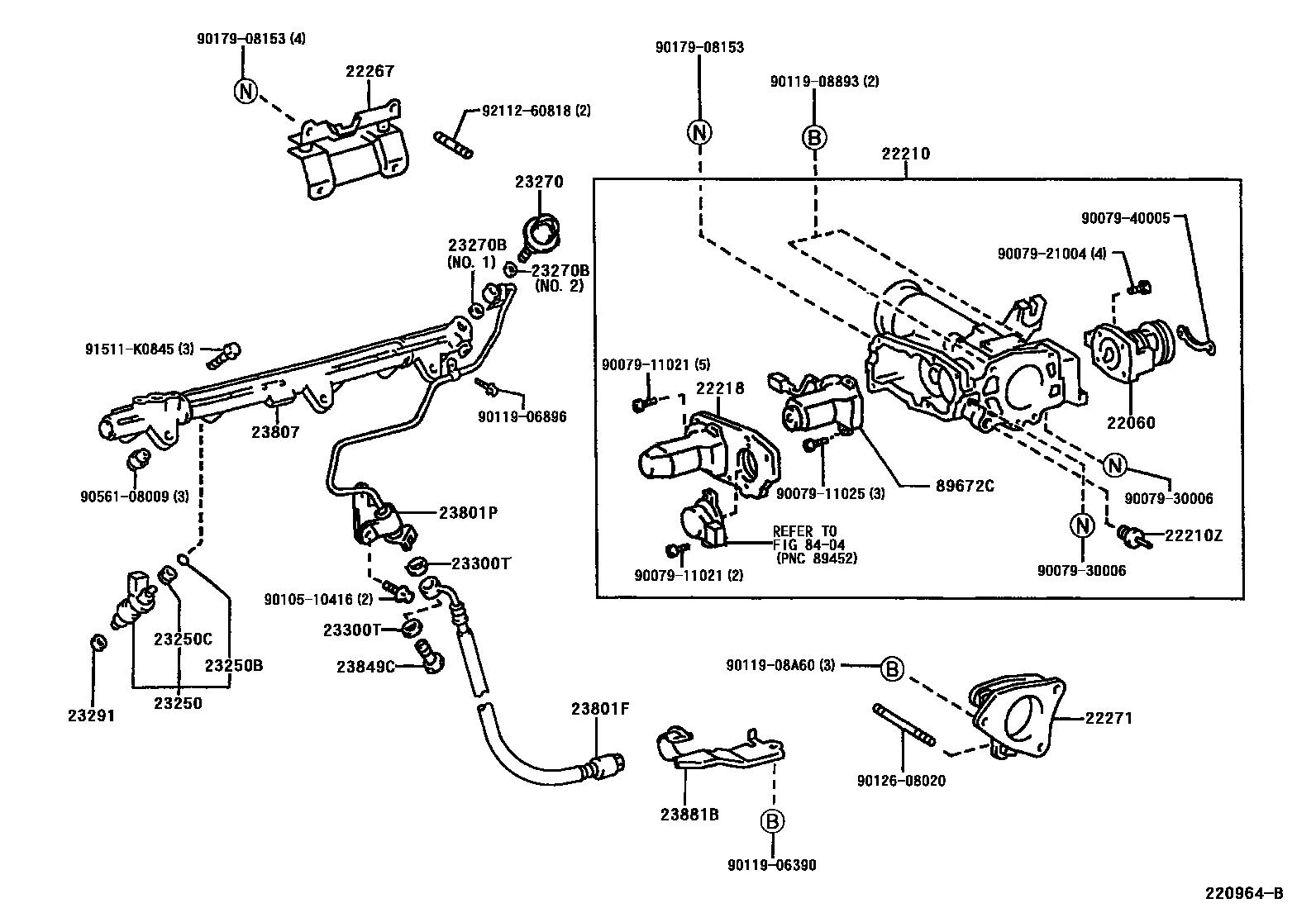

Toyota ORIGIN — FUEL INJECTION SYSTEM

0001 1 0002 1

22060LEVER ASSY, THROTTLE W/SENSOR

main22060-46010i2JZGE..JCG17200008

22210BODY ASSY, THROTTLE

main22030-46130i2JZGE..JCG17200008

22210ZTHERMOSTAT, MANIFOLD

main90916-03104i2JZGE..JCG17200008

22218COVER(FOR THROTTLE BODY)

main22218-46120i2JZGE..JCG17200008

22267BRACKET, THROTTLE BODY

main22267-46030i2JZGE..JCG17200008

22271GASKET, THROTTLE BODY

main22271-46070i2JZGE..JCG17200008

23250INJECTOR ASSY, FUEL

main23209-46090×6i2JZGE..JCG17200008

23250BRING, O(FOR FUEL INJECTOR)

main90301-07024×12i2JZGE..JCG17200008

23250CGROMMET(FOR FUEL INJECTOR)

main90480-13005×6i2JZGE..JCG17200008

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23207-46021i2JZGE..JCG17200008

23270BGASKET(FOR PULSATION DAMPER HOSE)

main90430-12026i2JZGE..JCG17200008

main90430-14008i2JZGE..JCG17200008

23291INSULATOR, INJECTOR VIBRATION

main23291-62010×6i2JZGE..JCG17200008

23300TGASKET(FOR FUEL FILTER)

main90430-12026×2i2JZGE..JCG17200008

23801FHOSE, FUEL, NO.1

main90923-01422i2JZGE..JCG17200008

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-46031i2JZGE..JCG17200008

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-46030i2JZGE..JCG17200008

sub23807-46031

23849CBOLT, UNION(FOR FUEL PIPE SUPPORT)

main90401-12097i2JZGE..JCG17200008

23881BBRACKET, FUEL HOSE

main23881-46030i2JZGE..JCG17200008

8404

89672CMOTOR, THROTTLE CONTROL

main89672-30020iJCG17200008

9007911021

main90079-11021

9007911025

main90079-11025

9007921004

main90079-21004

9007930006

main90079-30006

9007940005

main90079-40005

9010510416

main90105-10416

9011906390

main90119-06390

9011906896

main90119-06896

9011908893

main90119-08893

9011908A60

main90119-08A60

9012608020

main90126-08020

9017908153

main90179-08153

9056108009

main90561-08009

91511K0845

main91511-K0845

9211260818

main92112-60818

35 parts on this diagram · 2 diagrams in section
