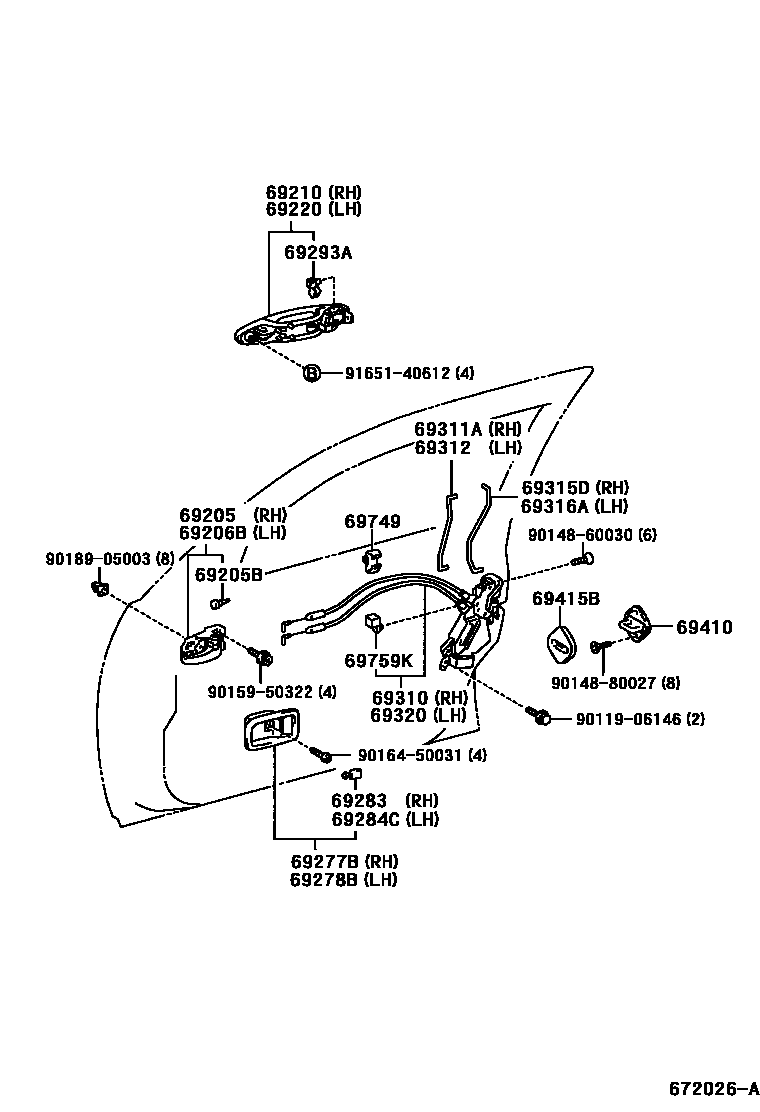

Toyota ORIGIN — FRONT DOOR LOCK & HANDLE

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-51010-A0iJCG17200008

IVORY,TRIM0#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04014×2iJCG17200008

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-51010-A0iJCG17200008

IVORY,TRIM0#

sub69206-47010

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-51010iJCG17200008

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-51010iJCG17200008

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-51010-A0iJCG17200008

IVORY,TRIM0#

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-51010-A0iJCG17200008

IVORY,TRIM0#

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-30040-A1iJCG17200008

IVORY,TRIM0#

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69284-30040-A1iJCG17200008

IVORY,TRIM0#

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12050iJCG17200008

main69293-12060iJCG17200008

69310LOCK ASSY, FRONT DOOR, RH

main69030-51020iJCG17200008

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-51020iJCG17200008

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-51020iJCG17200008

69315DLINK, FRONT DOOR OUTSIDE LOCKING, RH

main69315-51020iJCG17200008

69316ALINK, FRONT DOOR OUTSIDE LOCKING, LH

main69316-51020iJCG17200008

69320LOCK ASSY, FRONT DOOR, LH

main69040-51020iJCG17200008

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-51010×2iJCG17200008

69415BCOVER, DOOR LOCK STRIKER, FRONT

main69415-30020×2iJCG17200008

69749CLAMP, FRONT DOOR LOCK LINK

main69749-30050×2iJCG17200008

69759KSNAP, DOOR LOCK CONTROL LINK

main69759-32120×2iJCG17200008

9011906146

main90119-06146

9014860030

main90148-60030

9014880027

main90148-80027

9015950322

main90159-50322

9016450031

main90164-50031

9018905003

main90189-05003

9165140612

main91651-40612

27 parts on this diagram · 1 diagram in section
