Toyota ORIGIN — FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-22080iJCG17200008

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02070×5iJCG17200008

sub90942-02049

43501EBEARING (FOR FRONT AXLE HUB RH)

main90363-32035iJCG17200008

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90311-48013iJCG17200008

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-77001iJCG17200008

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90179-22022iJCG17200008

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-22080iJCG17200008

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02070×5iJCG17200008

sub90942-02049

43502EBEARING (FOR FRONT AXLE HUB LH)

main90363-32035iJCG17200008

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90311-48013iJCG17200008

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-77001iJCG17200008

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90179-22022iJCG17200008

43512DISC, FRONT

main43512-22220×2iJCG17200008

43514BCAP, FRONT AXLE HUB GREASE, RH

main43514-22040iJCG17200008

43514CCAP, FRONT AXLE HUB GREASE, LH

main43514-22040iJCG17200008

43515ROTOR, SKID CONTROL, FRONT

main43515-22030×2iJCG17200008

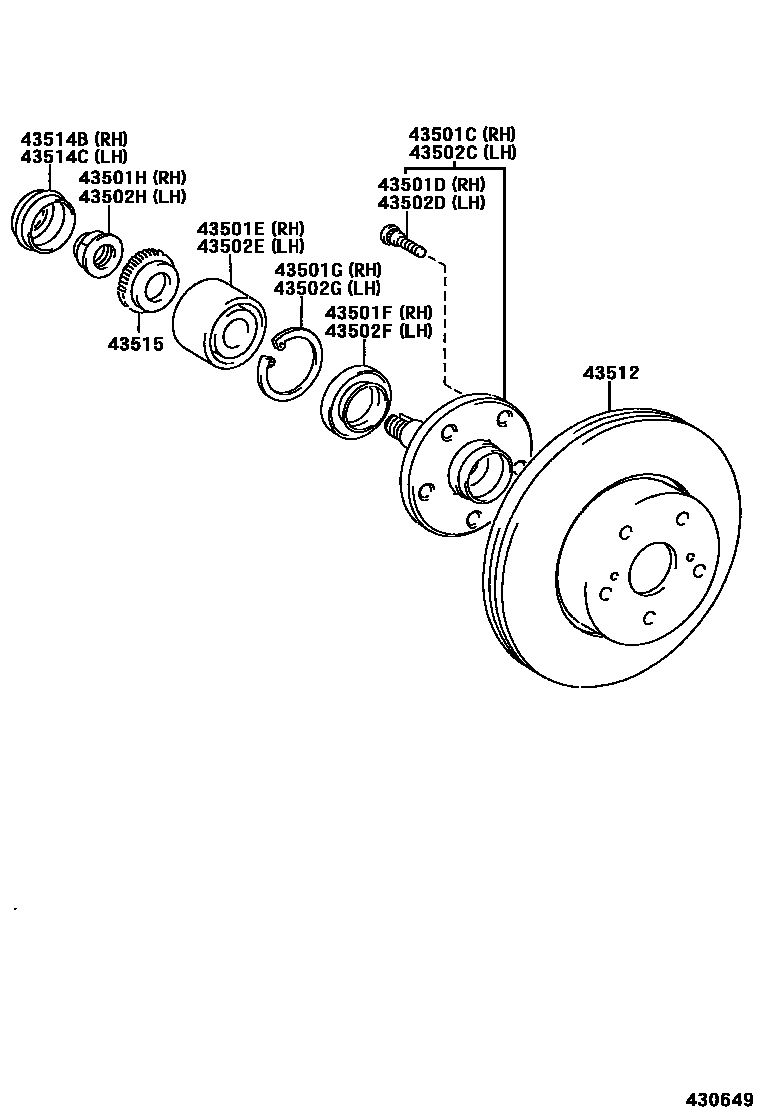

16 parts on this diagram · 1 diagram in section
