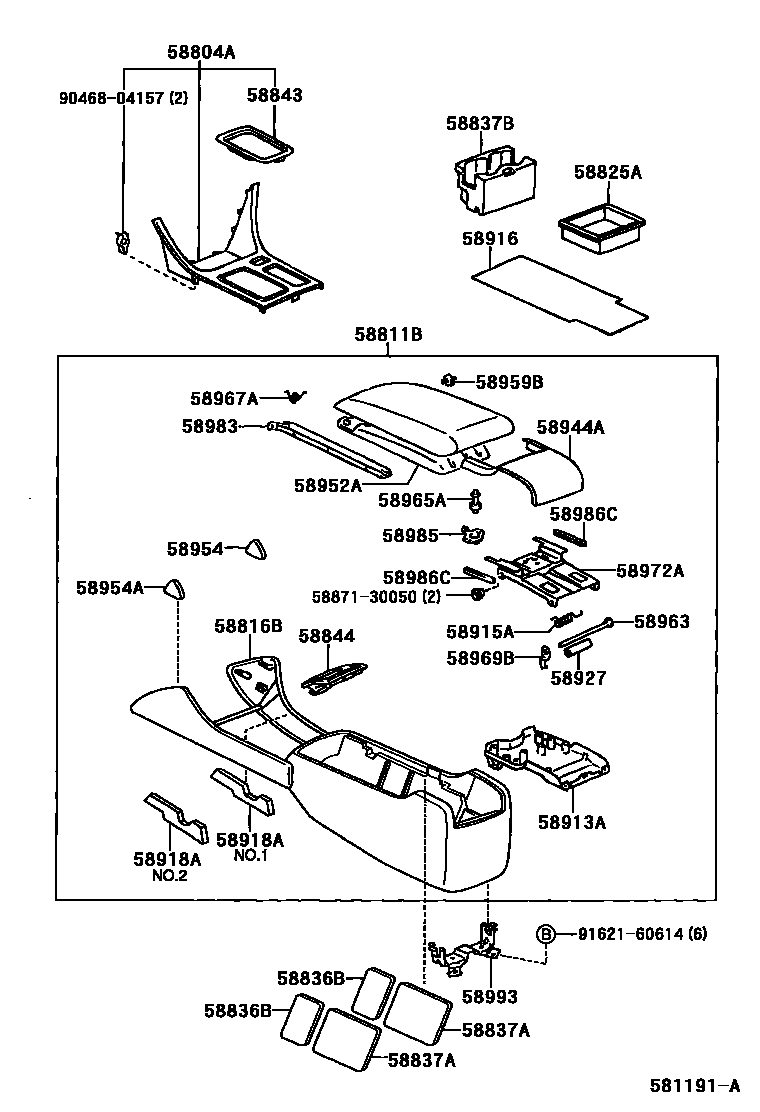

Toyota ORIGIN — CONSOLE BOX & BRACKET
58804APANEL SUB-ASSY, CONSOLE, UPPER
IVORY,TRIM0#
58811BBOX, CONSOLE
IVORY,TRIM0#
58816BINSERT, CONSOLE BOX
IVORY,TRIM0#
58825APOCKET, CONSOLE BOX
58836BPAD, CONSOLE BOX SILENCER, NO.1
58837APAD, CONSOLE BOX SILENCER, NO.2
58837BBOX, CONSOLE CUP HOLDER
58843BEZEL, SHIFTING HOLE
IVORY,TRIM0#
58844BEZEL, CONSOLE BOX
IVORY,TRIM0#
58913APANEL, BOX, NO.3
58915ADAMPER, CONSOLE BOX, REAR
58916MAT, BOX BOTTOM
58927INSULATOR, CONSOLE COMPARTMENT DOOR
58944ACOVER, CONSOLE, REAR
IVORY,TRIM0#
58952ADOOR, CONSOLE COMPARTMENT, INNER
58954COVER, REAR LOCK HANDLE GRIP
58954ATABLE, CONSOLE, LH
58959BCUSHION, CONSOLE COMPARTMENT DOOR
58963SHAFT, CONSOLE COMPARTMENT DOOR HINGE
58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2
58967ASPRING, CONSOLE DOOR STOPPER
58969BSTOPPER, CONSOLE COMPARTMENT DOOR, NO.3
58972ABASE, CONSOLE COMPARTMENT DOOR LOCK
58983RETAINER, UPPER CONSOLE
58985RETAINER, CONSOLE BOX
58986CRETAINER, CONSOLE BOX, NO.6
58993BRACKET, CONSOLE BOX MOUNTING, REAR
5887130050CUSHION, CONSOLE BOX
main58871-30050
9046804157
main90468-04157
9162160614
main91621-60614
31 parts on this diagram · 1 diagram in section
