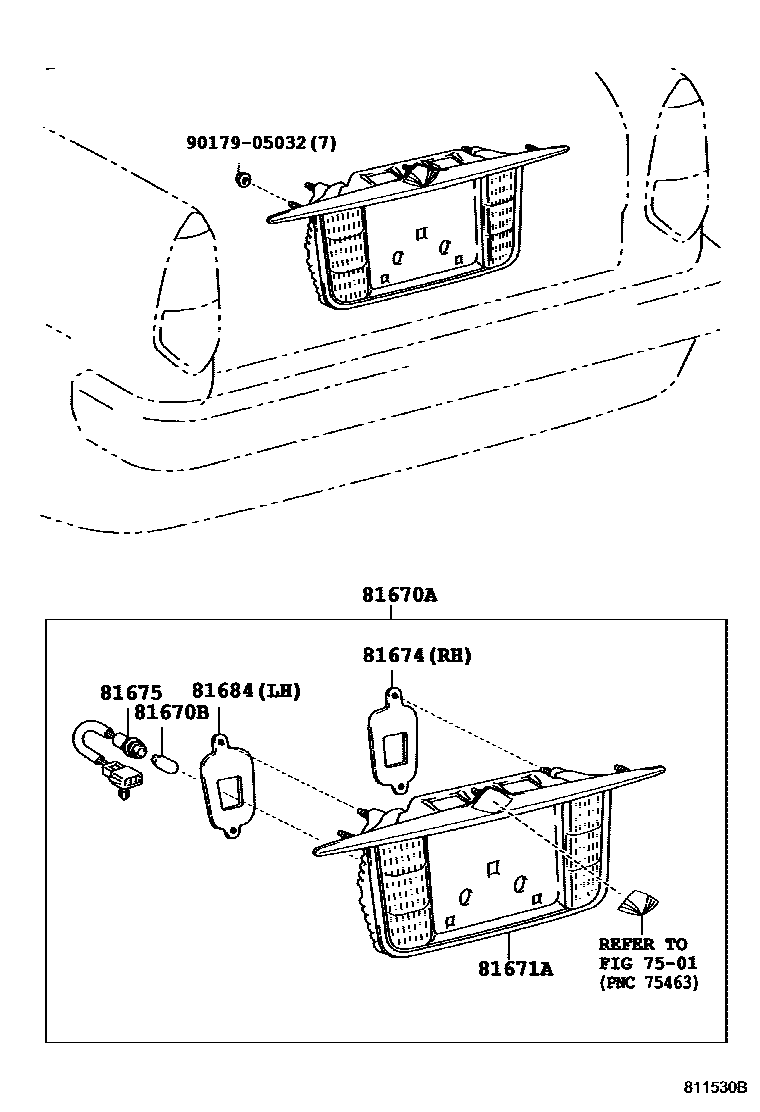

Toyota ORIGIN — BACK UP LAMP

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

81670ALAMP ASSY, BACK-UP

main81670-51030i200008-200104

81670BBULB(FOR BACK-UP LAMP)

main90981-11059×2i200008

81671ALENS & BODY, BACK-UP LAMP

main81671-51030i200008

81674GASKET, BACK-UP LAMP BODY, RH

main81674-51030i200008

81675SOCKET & WIRE, BACK-UP LAMP

main81675-51030×2i200008

81684GASKET, BACK UP LAMP BODY, LH

main81674-51030i200008

9017905032

main90179-05032

8 parts on this diagram · 1 diagram in section

BACK UP LAMP for Toyota ORIGIN

This section contains 8 genuine Toyota parts for the BACK UP LAMP system of the Toyota ORIGIN. Key components include: EMBLEM & NAME PLATE (EXTERIOR & INTERIOR), LAMP ASSY, BACK-UP, BULB(FOR BACK-UP LAMP), LENS & BODY, BACK-UP LAMP, GASKET, BACK-UP LAMP BODY, RH.
