Toyota ORIGIN — ABS & VSC
86652ABUZZER ASSY, SKID CONTROL
88263ARELAY, SKID CONTROL
88263ERELAY, SKID CONTROL NO.2
89183ASENSOR, YAWRATE
89245ASENSOR, STEERING
89441ASENSOR, DECELERATION
89540COMPUTER ASSY, SKID CONTROL
89542SENSOR, SPEED, FRONT RH
89543SENSOR, SPEED, FRONT LH
89545SENSOR, SPEED, REAR RH
89546SENSOR, SPEED, REAR LH
89549BRACKET, SKID CONTROL COMPUTER
89633ARELAY, TRACTION CONTROL OR VSC
9011906375
main90119-06375
9017906161
main90179-06161
9161560825
main91615-60825
91626B0616
main91626-B0616
9163560616
main91635-60616
9163560620
main91635-60620
91651B0616
main91651-B0616

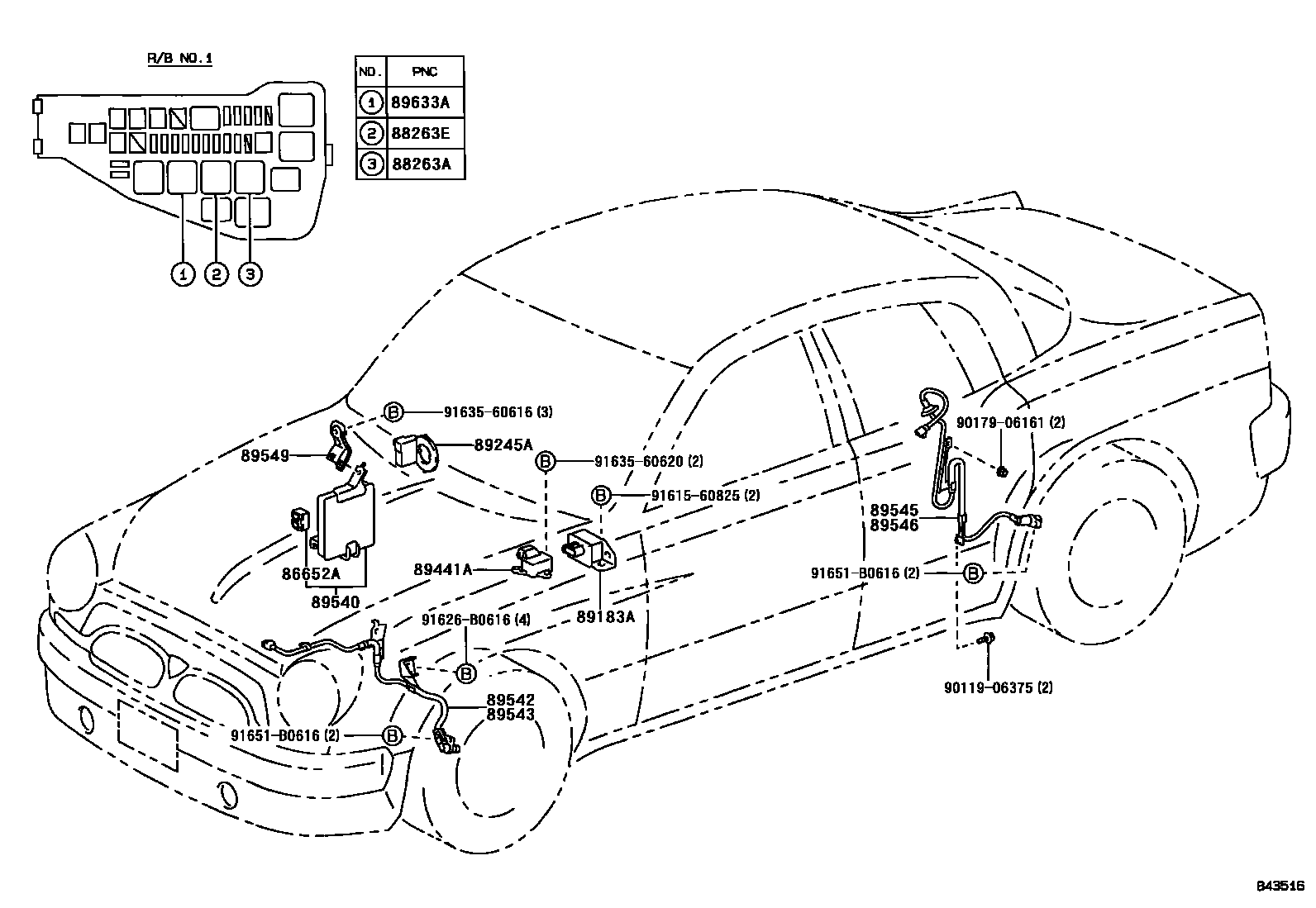

20 parts on this diagram · 1 diagram in section
ABS & VSC for Toyota ORIGIN
This section contains 20 genuine Toyota parts for the ABS & VSC system of the Toyota ORIGIN. Key components include: BUZZER ASSY, SKID CONTROL, RELAY, SKID CONTROL, RELAY, SKID CONTROL NO.2, SENSOR, YAWRATE, SENSOR, STEERING.
