Toyota OPA — WIRING & CLAMP

0001 1������-� 0002 1����� 0003 1����� 0004 1������������ & ��� 0005 1������������ & ��� 0006 1���,�-�,��� & ������� 0007 1����� & ������ 0008 1�-�������� 0009 1���� ��� 0010 1����

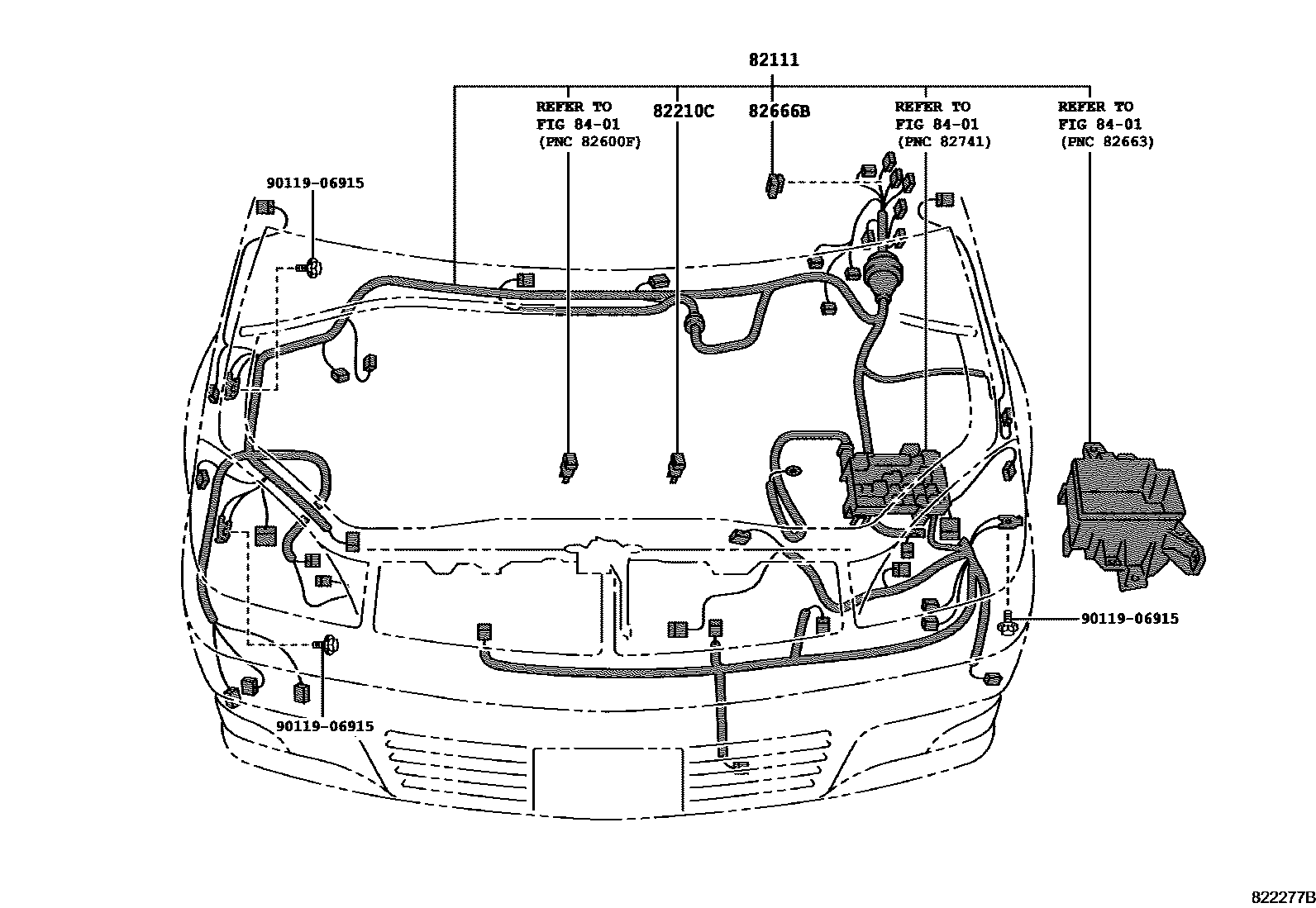

82111WIRE, ENGINE ROOM MAIN

main82111-63010iZCT10..A200004-200205

main82111-63011iZCT10..A200205

main82111-63020iZCT10..I200004-200205

main82111-63021iZCT1#200205

main82111-63030iZCT15200004-200205

main82111-63031iZCT1#200205

main82111-63040iACT10..A200008-200205

main82111-63041iACT10200205

main82111-63050iACT10..A200008-200205

main82111-63051iACT10200205

main82111-63060iZCT1#..I200004-200205

main82111-63061iZCT1#..I200205

main82111-63070iACT10..I200008-200205

main82111-63071iACT10200205

main82111-63080iZCT1#..I200205

main82111-63090iACT10200205

82210CFUSIBLE LINK

main90982-08254iACT10,ZCT1#200004-200205

main90982-08283iACT10,ZCT1#200004-200205

main90982-08284iACT10,ZCT1#200004-200205

82666BHOLDER, CONNECTOR NO.3

main82666-21040iACT10,ZCT1#200004-200205

8401

9011906915

main90119-06915

5 parts on this diagram · 10 diagrams in section
