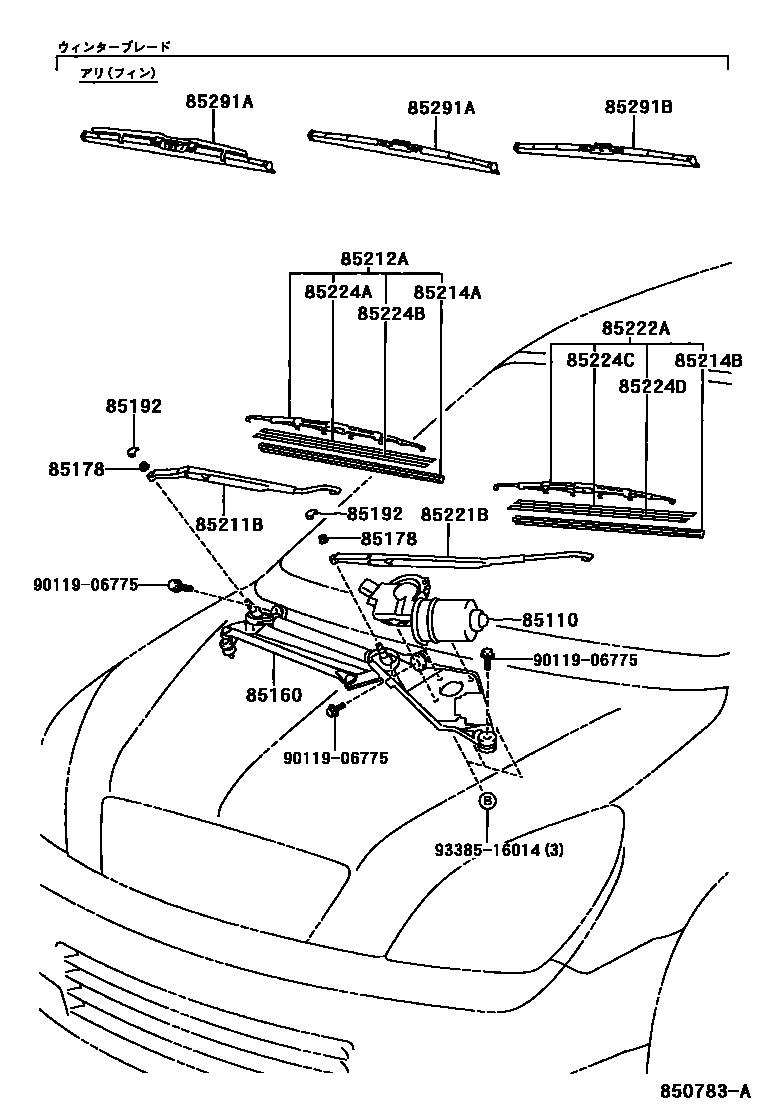

Toyota OPA — WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-63010iACT10,ZCT1#200004-200205

sub85110-63020

main85110-63020iACT10,ZCT1#200004-200205

85160LINK ASSY, WINDSHIELD WIPER

main85150-63010iACT10,ZCT1#200004-200205

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-10223iACT10,ZCT1#200004-200205

85192COVER, WINDSHIELD WIPER ARM

main85292-13010iACT10,ZCT1#200004-200205

85211BARM, FRONT WIPER, RH

main85211-63010iACT10,ZCT1#200004-200205

85212ABLADE, FR WIPER, RH

main85212-44020iACT10,ZCT1#200004-200205

sub85212-44100

main85212-44100iACT10,ZCT1#200205

sub85212-68010

85214ARUBBER, WIPER, RH

main85214-44070iACT10,ZCT1#200004-200106

sub85214-44130

main85214-44130iACT10,ZCT1#200106-200405

sub85214-44140

main85214-44140iACT10,ZCT1#200405

85214BRUBBER, WIPER, LH

main85214-10090iACT10,ZCT1#200004-200205

sub85214-51030

main85214-12300iACT10,ZCT1#200405

sub85214-12301

main85214-51030iACT10,ZCT1#200205-200405

sub85214-12300

85221BARM, FRONT WIPER, LH

main85221-63010iACT10,ZCT1#200004-200205

85222ABLADE, FR WIPER, LH

main85222-12770iACT10,ZCT1#200405

sub85222-12771

main85222-51020iACT10,ZCT1#200205-200405

sub85222-12770

main85222-63010iACT10,ZCT1#200004-200205

sub85222-51020

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-44060iACT10,ZCT1#200004-200205

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-44060iACT10,ZCT1#200004-200205

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-10190iACT10,ZCT1#200004-200205

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-10190iACT10,ZCT1#200004-200205

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-44050iACT10,ZCT1#200004-200205

sub85291-44070

main85291-44060iACT10,ZCT1#200004-200205

sub85291-44090

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-63020iACT10,ZCT1#200004-200205

sub85291-44080

9011906775

main90119-06775

9338516014

main93385-16014

18 parts on this diagram · 2 diagrams in section
