Toyota OPA — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-63010i200004-200205

8504REAR WASHER

→ Go to FIG 85-04

85301INLET SUB-ASSY, WASHER

main85301-63010i200004-200205

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-10280i200004-200205

85330JAR ASSY, WINDSHIELD WASHER

main85315-63010i200004-200205

main85315-63020i200004-200205

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i200004-200205

85332CAP, WINDSHIELD WASHER JAR

main85316-16070i200004-200205

85333FILTER, WINDSHIELD WASHER JAR

main85312-63010i200004-200205

85336DPACKING, WINDSHIELD WASHER JAR

main85336-30160i200004-200205

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i200004-200205

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85348-12250i200004-200205

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85349-89122i200004-200205

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080i200012-200205

main90099-33080i200004-200005

main90099-33956i200005-200012

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001i200004-200005

main90446-07001i200005-200205

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90446-07001i200004-200205

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080i200004-200205

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-22410i200004-200205

8537133010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-33010

9011906767

main90119-06767

9046901005

main90469-01005

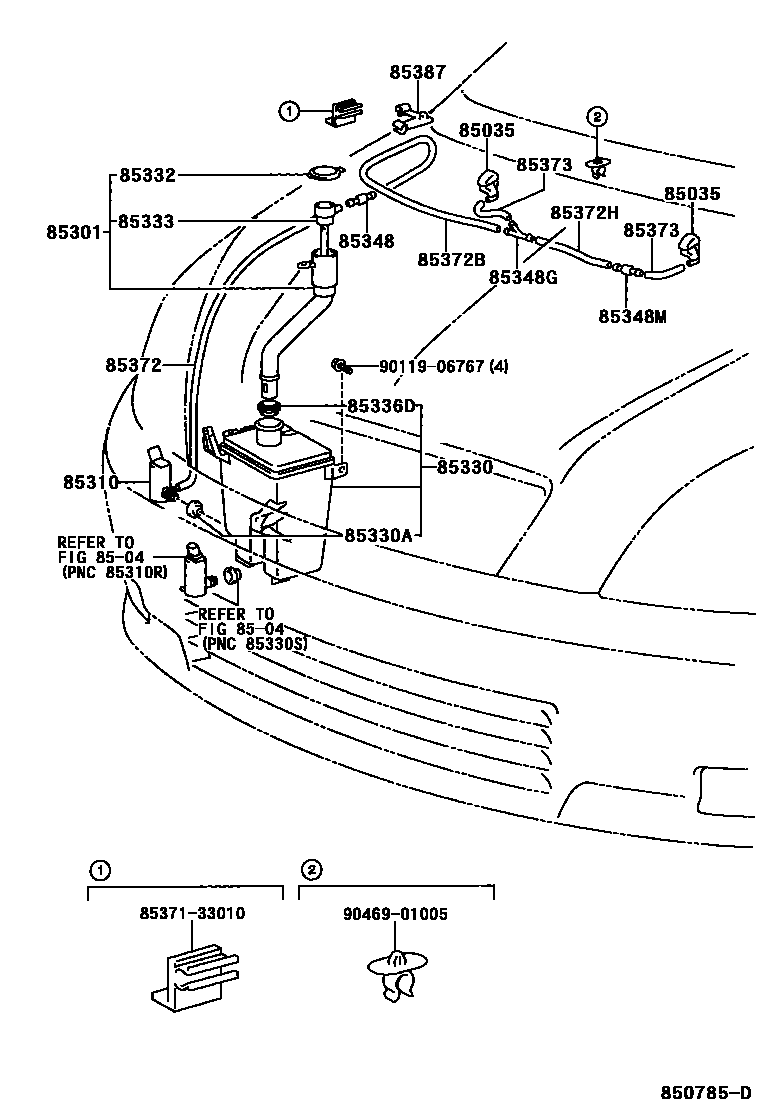

20 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota OPA

This section contains 20 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota OPA. Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER.
