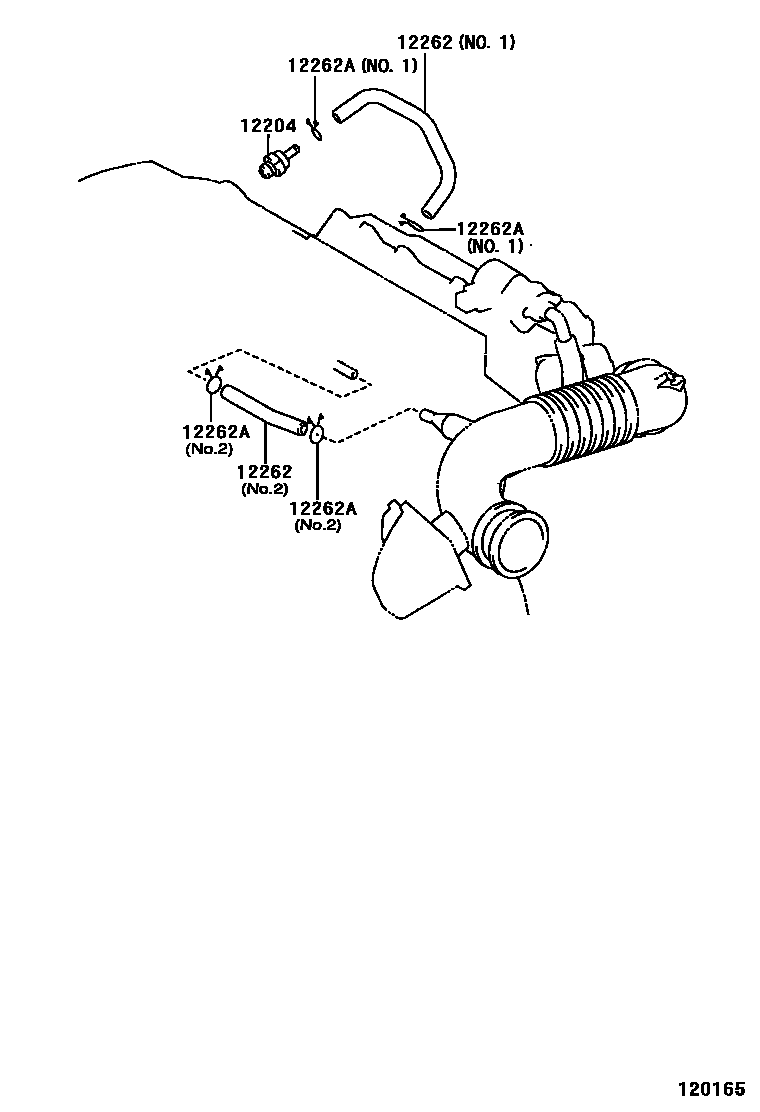

Toyota OPA — VENTILATION HOSE

0001 1 0002 1

12204VALVE SUB-ASSY, VENTILATION

main12204-22050i1ZZFE..ZCT1#200004-200405

sub12204-22051

main12204-22051i1ZZFE..ZCT1#200405

main12204-28020i1AZFSE..ACT10200008-200205

12262HOSE, VENTILATION, NO.2

main12262-0D050i1ZZFE..ZCT1#200406

main12262-22040i1ZZFE..ZCT1#200406

main12262-22040i1ZZFE..ZCT1#200004-200406

main12262-28030i1AZFSE..ACT10200008-200205

main12262-28040i1AZFSE..ACT10200008-200205

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90466-18002i1ZZFE..ZCT1#200403

main90467-13103i1ZZFE..ZCT1#200004-200205

main90467-19003i1AZFSE..ACT10200004-200403

3 parts on this diagram · 2 diagrams in section
