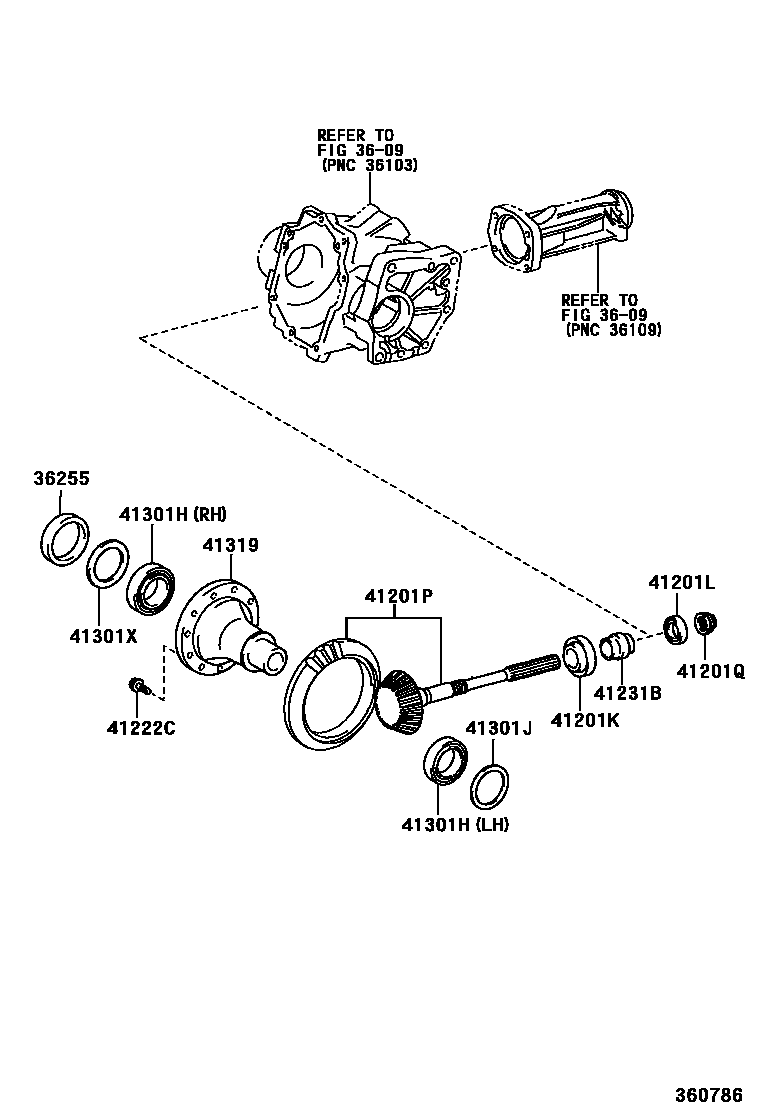

Toyota OPA — TRANSFER GEAR
3609
36255SPACER, TRANSFER OUTPUT SHAFT, NO.1
41201KBEARING (FOR TRANSFER DRIVEN PINION FRONT)
sub90366-35154
41201LBEARING (FOR TRANSFER DRIVEN PINION REAR)
41201PGEAR KIT, TRANSFER
sub41201-21021
41201QNUT (FOR TRANSFER GEAR)
41222CBOLT (FOR TRANSFER RING GEAR)
41231BSPACER, TRANSFER PINION BEARING
sub41231-48010
41301JWASHER, PLATE(FOR RING GEAR MOUNTING CASE)
sub36265-48C40
sub36265-48C70
sub36265-48D00
sub36265-48D30
sub36265-48D60
sub36265-48D90
sub36265-48E20
sub36265-48E50
sub36265-48E80
sub36265-48F10
sub36265-48F40
sub36265-48F70
sub36265-48G00
sub36265-48G30
sub36265-48G60
sub36265-48G90
sub36265-48J20
sub36265-48J50
41301XWASHER, TRANSFER RING GEAR MOUNTING CASE, NO.2
sub36266-48220
sub36266-48250
sub36266-48280
sub36266-48310
sub36266-48340
sub36266-48370
sub36266-48400
sub36266-48430
sub36266-48460
sub36266-48490
sub36266-48520
sub36266-48550
sub36266-48580
sub36266-48610
sub36266-48640
sub36266-48670
sub36266-48700
sub36266-48730
sub36266-48760
sub36266-48790
sub36266-48820
sub36266-48850
sub36266-48880
41319CASE, TRANSFER RING GEAR MOUNTING
12 parts on this diagram · 1 diagram in section
