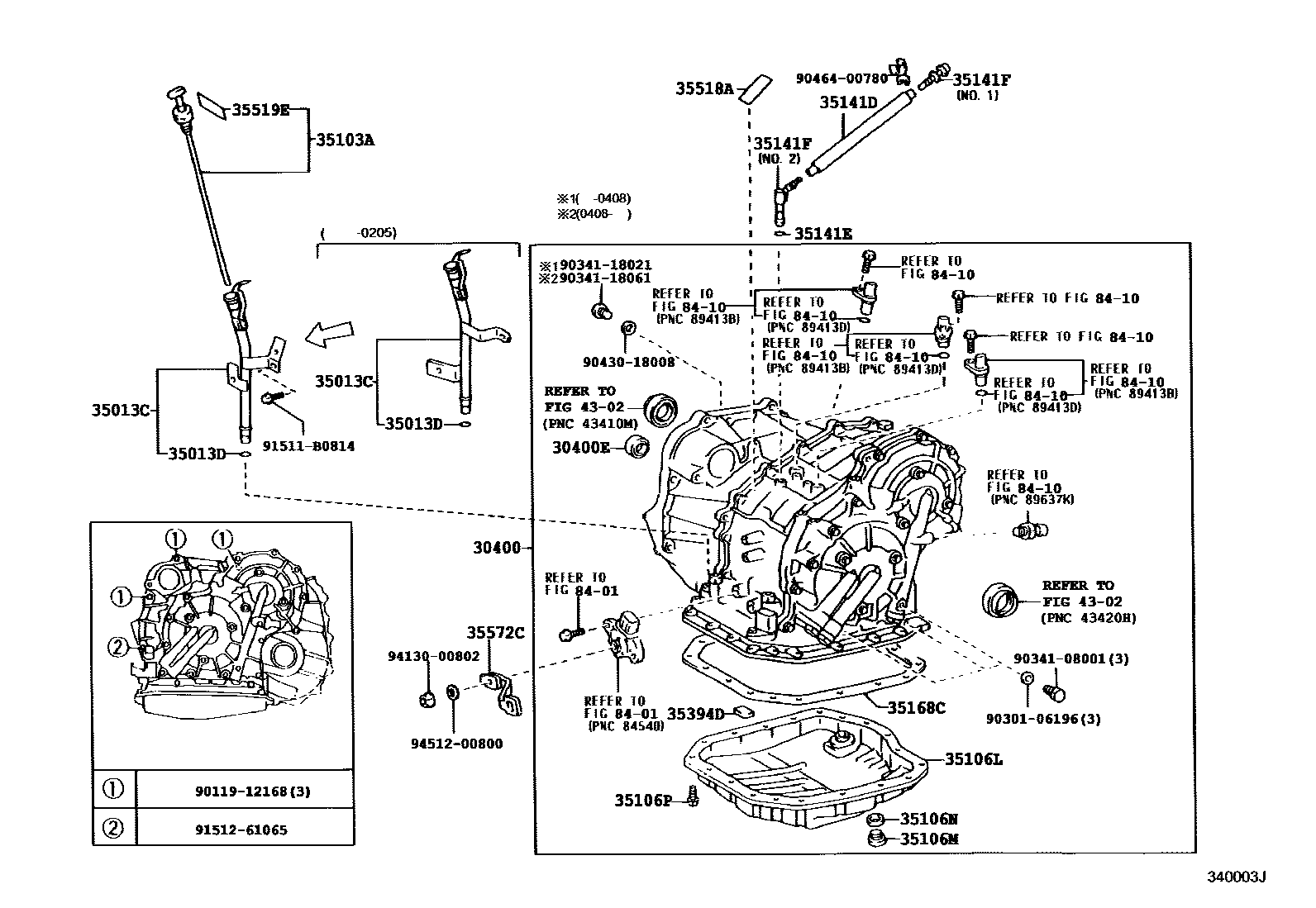

Toyota OPA — TRANSAXLE ASSY(CVT)
30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE
30400ESEAL, TYPE T OIL(FOR CVT OIL PUMP)
35013CTUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013DRING, O(FOR TRANSMISSION OIL FILLER TUBE)
35103AGAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35106LPAN SUB-ASSY, TRANSAXLE OIL(CVT)
35106MPLUG SUB-ASSY, DRAIN(CVT)
35106NGASKET, DRAIN PLUG(CVT)
35106PBOLT(FOR TRANSAXLE OIL PAN)
35141DHOSE(FOR BREATHER PLUG)
35141ERING, O(FOR BREATHER PLUG)
35168CGASKET, TRANSAXLE OIL PAN(CVT)
35394DMAGNET, OIL CLEANER(CVT)
35518ALABEL, AUTOMATIC TRANSAXLE INFORMATION, NO.2
35519ELABEL, AUTOMATIC TRANS INFORMATION
35572CLEVER, TRANSMISSION CONTROL SHAFT
4302FRONT DRIVE SHAFT
8401SWITCH & RELAY & COMPUTER
8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION
9011912168
main90119-12168
9030106196
main90301-06196
9034108001
main90341-08001
9034118021
main90341-18021
9034118061
main90341-18061
9043018008
main90430-18008
9046400780
main90464-00780
91511B0814
main91511-B0814
9151261065
main91512-61065
9413000802
main94130-00802
9451200800
main94512-00800
31 parts on this diagram · 1 diagram in section
TRANSAXLE ASSY(CVT) for Toyota OPA
This section contains 31 genuine Toyota parts for the TRANSAXLE ASSY(CVT) system of the Toyota OPA. Key components include: TRANSAXLE ASSY, CONTINUOUSLY VARIABLE, SEAL, TYPE T OIL(FOR CVT OIL PUMP), TUBE SUB-ASSY, TRANSMISSION OIL FILLER, RING, O(FOR TRANSMISSION OIL FILLER TUBE), GAGE SUB-ASSY, TRANSMISSION OIL LEVEL.
