Toyota OPA — SWITCH & RELAY & COMPUTER

0001 1����� & ��������� 0002 1����� & ��������� 0003 1����� & ��������� 0004 1������-� 0005 1��� 0006 1������������ 0007 1������������ 0008 1�������� & �����-��� ���� 0009 1���,�-�,��� & �������

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iACT10200205

main83530-60020iACT10200008-200205

84540SWITCH ASSY, NEUTRAL START

main84540-52050iZCT1#200004-200205

main84540-63010iACT10200205

89465SENSOR, OXYGEN

main89465-12710iZCT15200205

main89465-13030iZCT10200207

main89465-63010iZCT10200004-200205

main89465-63020iZCT15200004-200205

main89465-63030iACT10200008-200205

main89465-63050iZCT10200205-200207

89615SENSOR, KNOCK CONTROL

main89615-12120iZCT1#200004-200205

main89615-20090iZCT1#200205

main89615-30080iACT10200008-200105

main89615-32030iACT10200008-200105

main89615-44010iACT10200105-200205

9165140625

main91651-40625

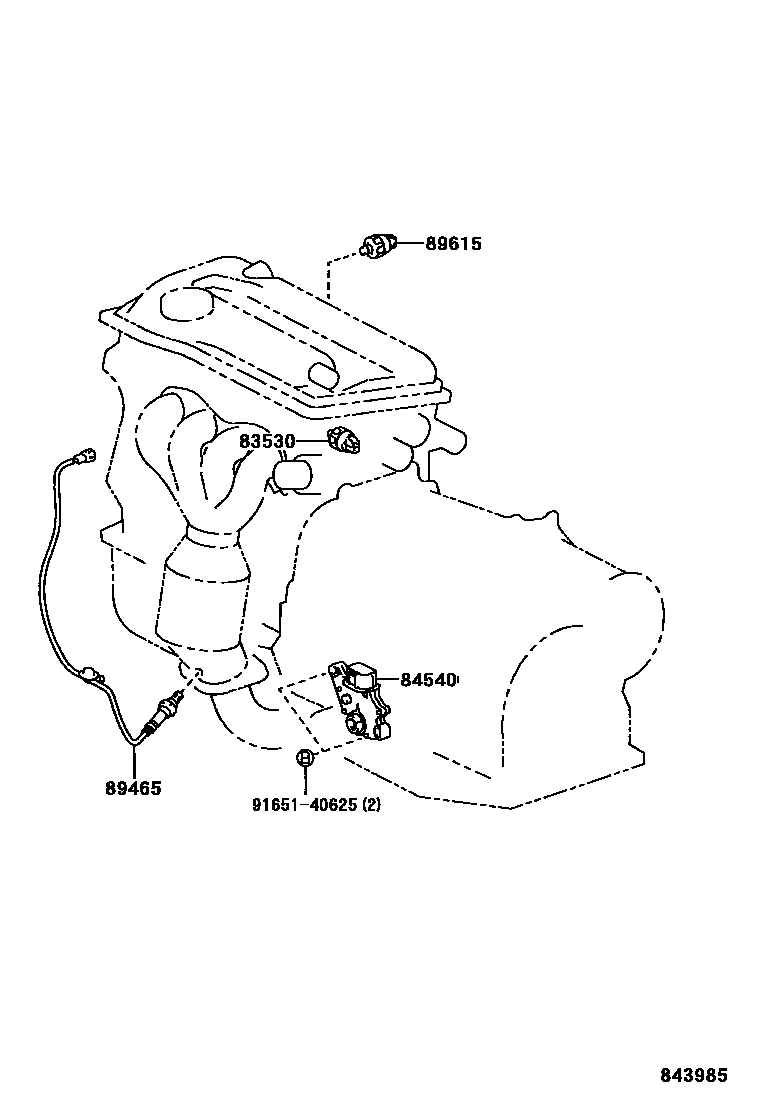

5 parts on this diagram · 9 diagrams in section
