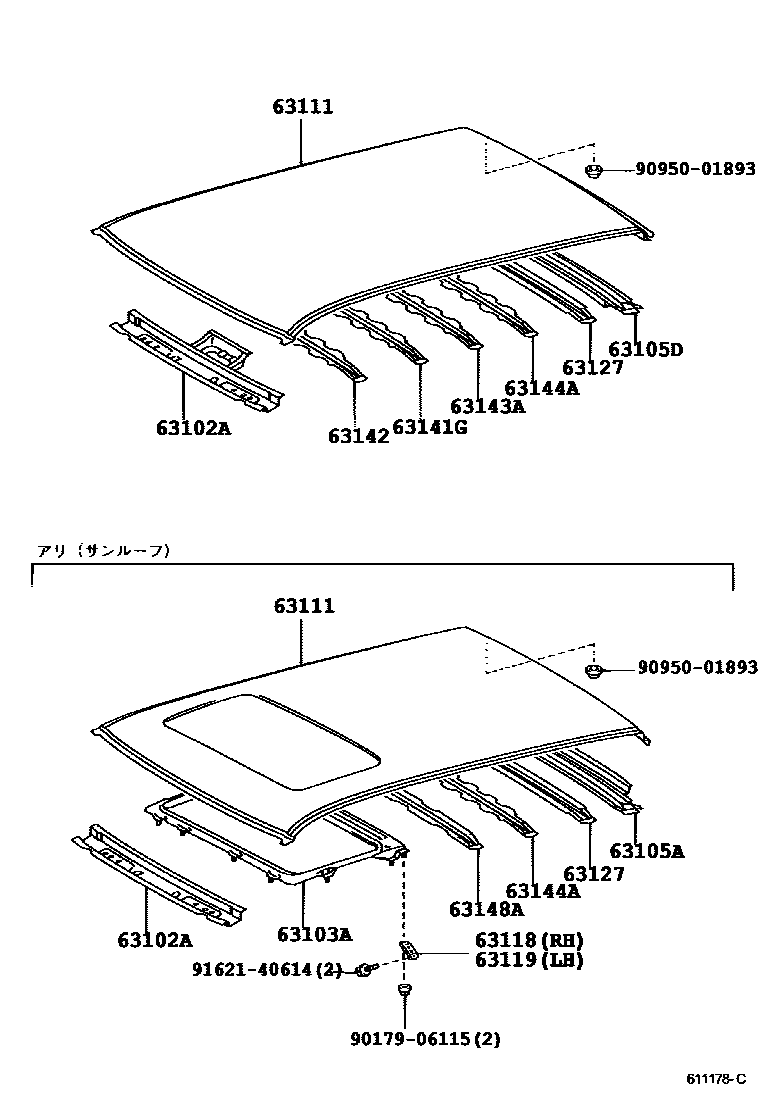

Toyota OPA — ROOF PANEL & BACK WINDOW GLASS

0001 1�-� ���� 0002 1�-� �-�

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-63010iACT10,ZCT1#200004-200205

main63132-63010iACT10,ZCT1#200205

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-63010iACT10,ZCT1#200205

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-63010iACT10,ZCT1#200205

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-63010iACT10,ZCT1#200004-200205

63111PANEL, ROOF

main63111-63010iACT10,ZCT1#..A200004-200205

main63111-63020iACT10,ZCT1#200004-200205

main63111-63030iACT10,ZCT1#200205

main63111-63040iACT10,ZCT1#200205

63118SUPPORT, ROOF PANEL, RH

main63118-63010iACT10,ZCT1#200205

63119SUPPORT, ROOF PANEL, LH

main63118-63010iACT10,ZCT1#200205

63127REINFORCEMENT, ROOF PANEL, NO.5

main63127-63010iACT10,ZCT1#200004-200205

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-63010iACT10,ZCT1#200004-200205

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-63010iACT10,ZCT1#200004-200205

63143AREINFORCEMENT, ROOF PANEL

main63143-63010iACT10,ZCT1#200004-200205

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-63010iACT10,ZCT1#200004-200205

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-63010iACT10,ZCT1#200205

9017906115

main90179-06115

9095001893

main90950-01893

9162140614

main91621-40614

16 parts on this diagram · 2 diagrams in section
