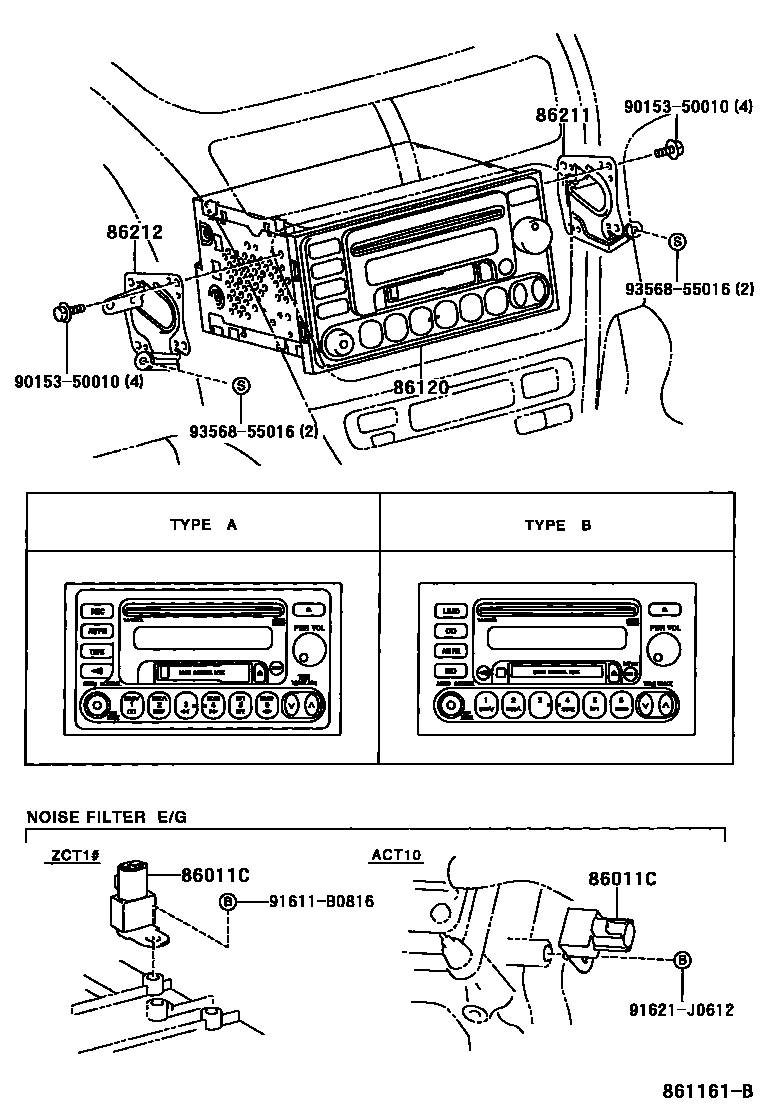

Toyota OPA — RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

86011CFILTER, NOISE

main90980-05314iACT10,ZCT1#200004-200205

86120RECEIVER ASSY, RADIO

main86120-2B660iACT10,ZCT1#..A200004-200205

main86120-63010iACT10,ZCT1#200004-200205

main86120-63020iZCT1#..A200205-200303

sub86120-63021

main86120-63021iZCT1#..A200303

main86120-63030iACT10,ZCT1#..I200205

86211BRACKET, RADIO, NO.1

main86211-63010iACT10,ZCT1#200004-200205

86212BRACKET, RADIO, NO.2

main86212-63010iACT10,ZCT1#200004-200205

9015350010

main90153-50010

91611B0816

main91611-B0816

91621J0612

main91621-J0612

9356855016

main93568-55016

8 parts on this diagram · 2 diagrams in section
