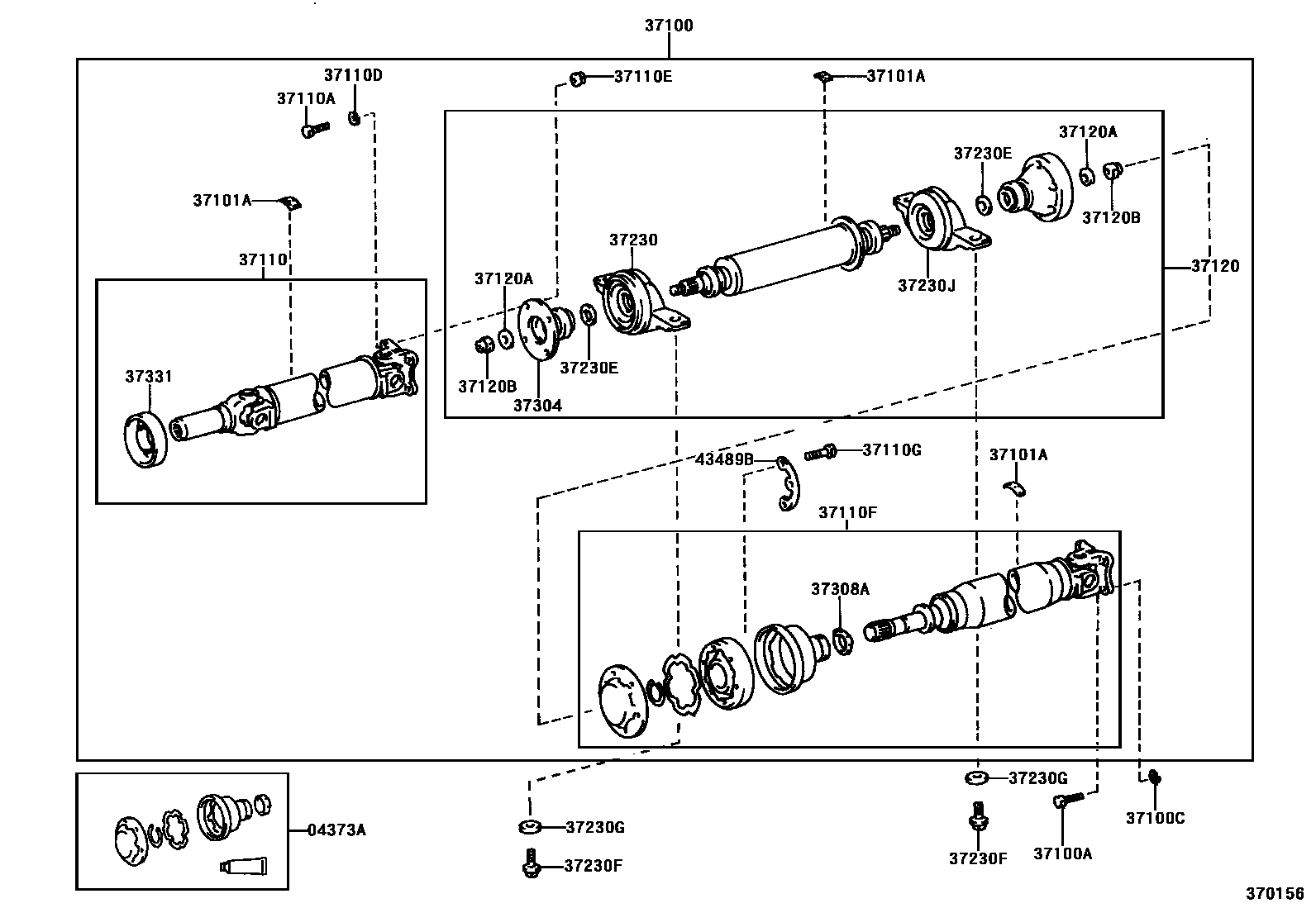

Toyota OPA — PROPELLER SHAFT & UNIVERSAL JOINT
04373ABOOT KIT, UNIVERSAL
37100SHAFT ASSY, PROPELLER W/CENTER BEARING
37100ABOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37100CWASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
sub90560-10H00
37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
37110SHAFT ASSY, PROPELLER
37110ABOLT (FOR PROPELLER SHAFT)
37110DNUT (FOR PROPELLER SHAFT)
37110EWASHER (FOR PROPELLER SHAFT)
sub90560-10H00
37110FSHAFT ASSY, PROPELLER, REAR
37120SHAFT ASSY, PROPELLER INTERMEDIATE
37120AWASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET)
37120BNUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
37230BEARING ASSY, CENTER SUPPORT, NO.1
37230EWASHER, NO.1 (FOR CENTER SUPPORT BEARING)
37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)
37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)
37230JBEARING ASSY, CENTER SUPPORT, NO.2
37304FLANGE SUB-ASSY, UNIVERSAL JOINT
37308ACLAMP (FOR UNIVERSAL JOINT COVER)
37331COVER, SLIDING SHAFT DUST
43489BWASHER, CONSTANT VELOCITY UNIVERSAL JOINT
23 parts on this diagram · 2 diagrams in section
