Toyota OPA — PARTIAL ENGINE ASSEMBLY

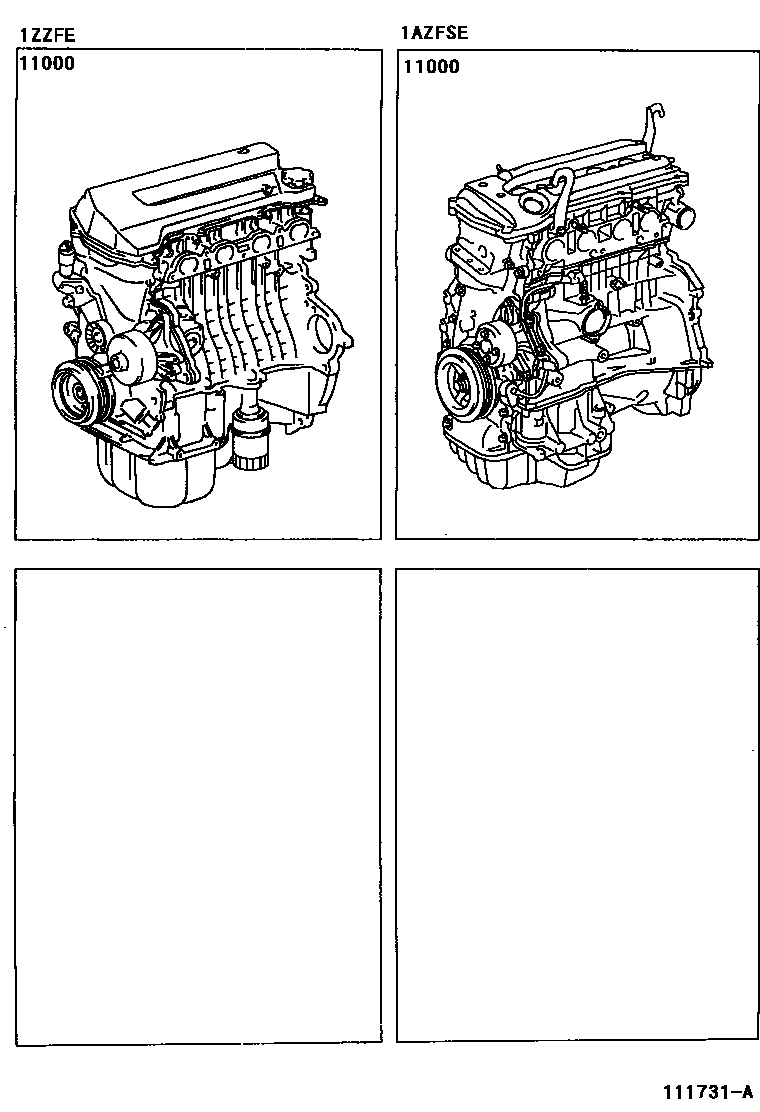

11000ENGINE ASSY, PARTIAL

main19000-22080i1ZZFE..ZCT10200004-200202

sub19000-22081

main19000-22081i1ZZFE..ZCT10200202-200205

sub19000-22320

main19000-22190i1ZZFE..ZCT15200004-200202

sub19000-22191

main19000-22191i1ZZFE..ZCT15200202-200205

sub19000-22192

sub16258-28030

sub16268-22101

main19000-22300i1ZZFE..ZCT10200205-200504

sub19000-22302

sub16258-28030

sub16268-22101

sub16268-22161

main19000-22301i1ZZFE..ZCT10200301-200311

sub19000-22300

main19000-22310i1ZZFE..ZCT15200205-200504

sub19000-22311

sub16258-28030

sub16268-22101

main19000-28150i1AZFSE..ACT10200008-200504

sub19000-28151

1 parts on this diagram · 1 diagram in section
