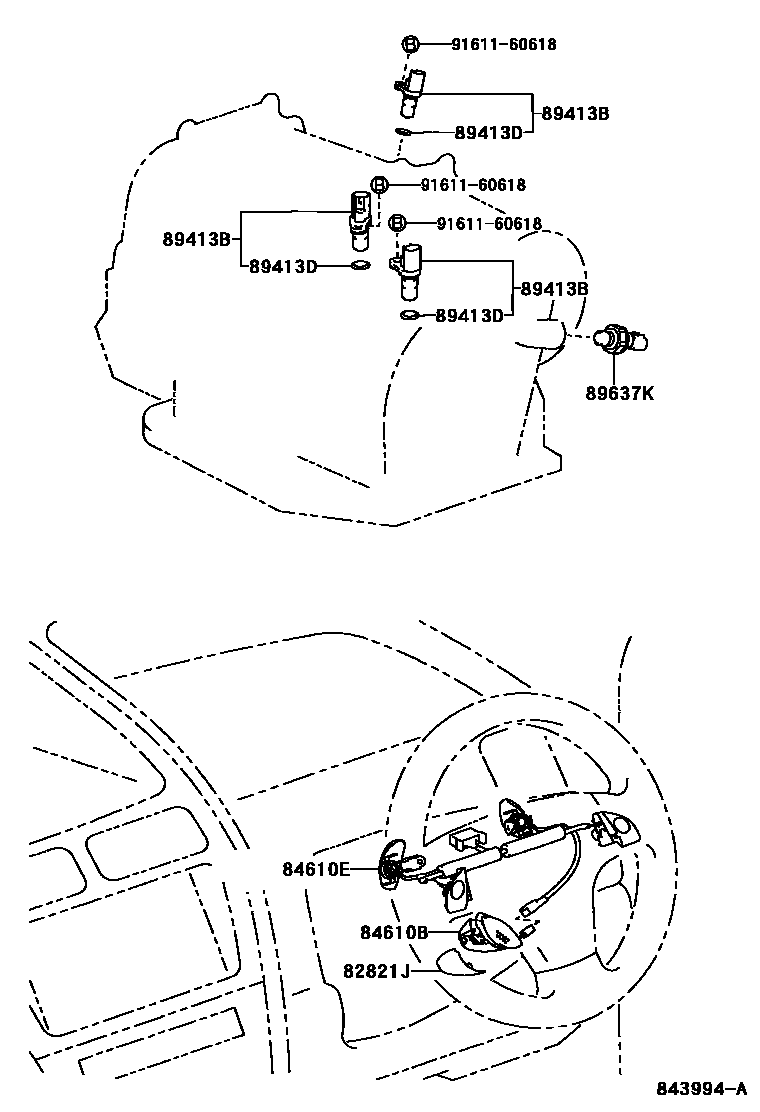

Toyota OPA — OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1

82821JCOVER, CONNECTOR(FOR SHIFT CONTOROL SWITCH)

main82821-52040iACT10200008-200205

84610BSWITCH ASSY, TRANSMISSION SHIFT, MAIN

main84610-63010iACT10..I200008-200205

sub84610-52010

84610ESWITCH ASSY, TRANSMISSION SHIFT, UP & DOWN

main84610-52020-B1iACT10..I200008-200205

DK.GRAY,TRIM1#

sub84610-52020

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-32010iZCT1#200004-200205

sub89413-32011

main89413-60020iACT10200008-200205

sub89413-60021

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90301-11008iZCT1#200004-200504

89637KSENSOR, OIL PRESSURE

main89637-63010iACT10200008-200205

9161160618

main91611-60618

7 parts on this diagram · 2 diagrams in section
