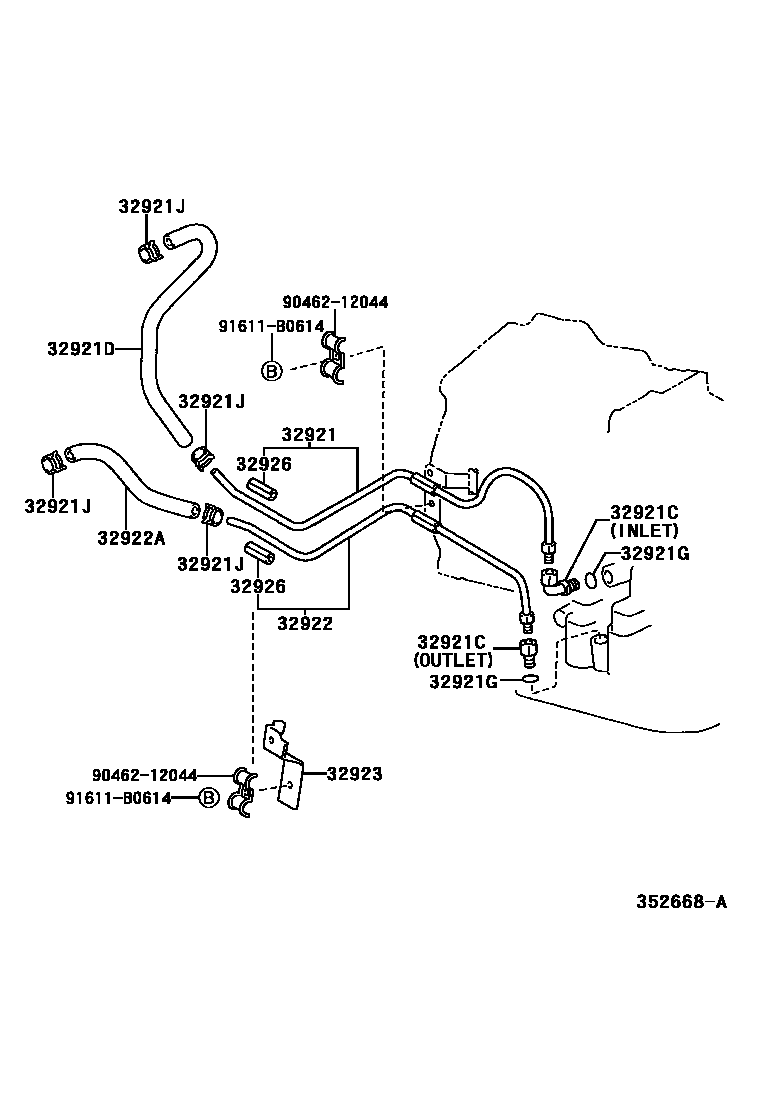

Toyota OPA — OIL COOLER & TUBE (ATM)

0001 1U341E,U341F 0003 1U341E 0004 1U341E

32921TUBE, OIL COOLER INLET, NO.1

main32921-63020iZCT1#200004-200205

32921CUNION(FOR OIL COOLER TUBE)

main90404-13004iZCT10200205

sub90404-13010

main90404-16031iZCT15200004-200205

main90407-16010iZCT15200004-200205

32921DHOSE(FOR OIL COOLER INLET)

main32941-63020iZCT1#200004-200205

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iZCT1#200004-200504

32921JCLIP(FOR OIL COOLER HOSE)

main90467-16013iZCT1#200004-200205

sub90467-16022

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-63020iZCT1#200004-200205

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-17104iZCT1#200004-200205

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-32080iZCT1#200004-200205

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30020iZCT1#200004-200205

9046212044

main90462-12044

91611B0614

main91611-B0614

11 parts on this diagram · 3 diagrams in section
