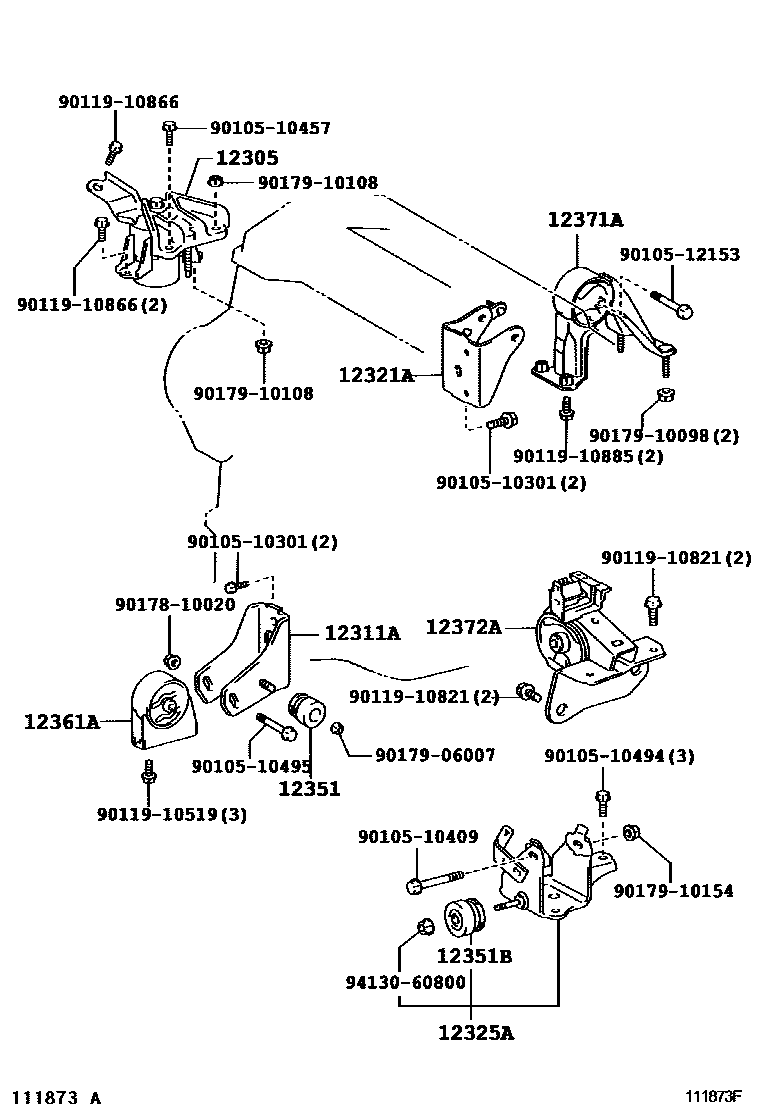

Toyota OPA — MOUNTING
12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12351DAMPER, ENGINE MOUNTING
12351BDAMPER, ENGINE MOUNTING
12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12371AINSULATOR, ENGINE MOUNTING, REAR
12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
9010510301
main90105-10301
9010510409
main90105-10409
9010510457
main90105-10457
9010510494
main90105-10494
9010510495
main90105-10495
9010512153
main90105-12153
9011910519
main90119-10519
9011910821
main90119-10821
9011910866
main90119-10866
9011910885
main90119-10885
9017810020
main90178-10020
9017906007
main90179-06007
9017910098
main90179-10098
9017910108
main90179-10108
9017910154
main90179-10154
9413060800
main94130-60800
25 parts on this diagram · 3 diagrams in section
MOUNTING for Toyota OPA
This section contains 36 genuine Toyota parts for the MOUNTING system of the Toyota OPA. Key components include: INSULATOR SUB-ASSY, ENGINE MOUNTING, RH, BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING, NO.2 RH, BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE).
