Toyota OPA — MIRROR

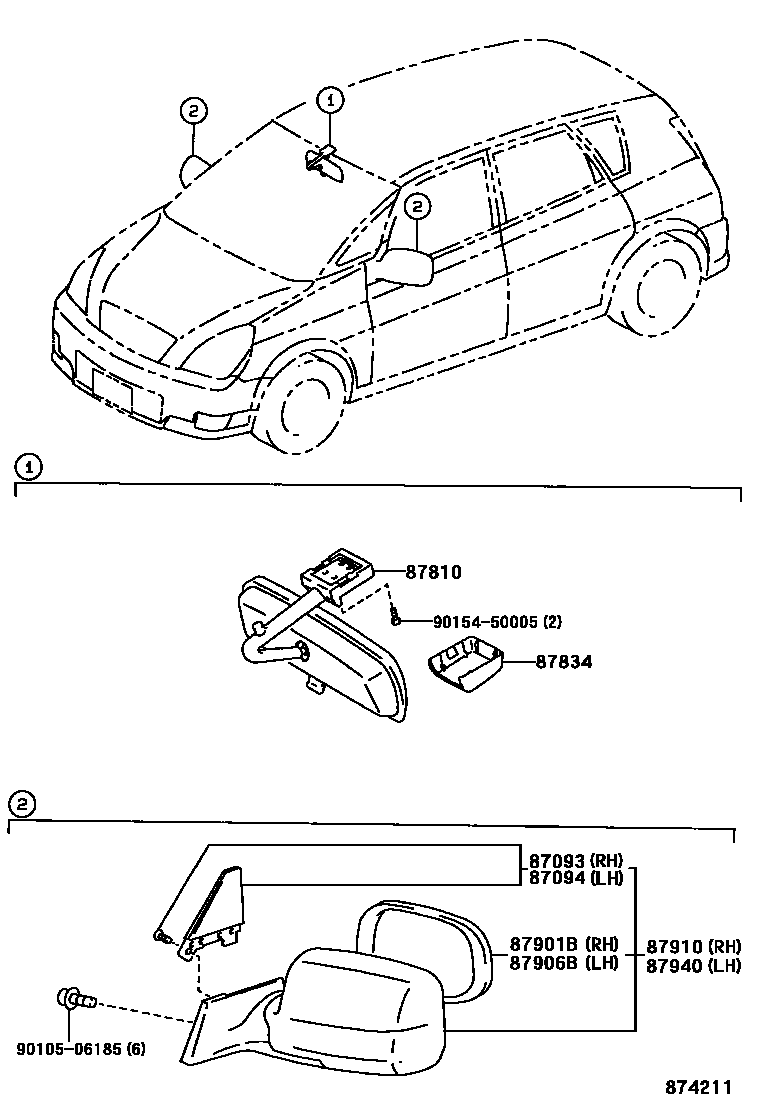

87093STAY SUB-ASSY, OUTER REAR VIEW MIRROR, UPPER RH
87094STAY SUB-ASSY, OUTER REAR VIEW MIRROR, UPPER LH
87810MIRROR ASSY, INNER REAR VIEW
BLACK,TRIM1#
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
LIGHT GRAY,TRIM1#
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
SUPER WHITE 2,040
SU. WHITE PM.,051
SILVER ME.,1C0
BLACK MC.,209
RED MC.,3M8
PALE ROSE ME.OP.,3N7
CHAMPAGNE ME.,586
DK.BLUE M.M.,8P4
BLUE M.M.,8P5
SU. WHITE PM.,051
SILVER ME.,1C0
BLACK MC.,209
RED M.M.,3N8
BEIGE ME.,4P7
JADE GREEN M.M.,6S9
87940MIRROR ASSY, OUTER REAR VIEW, LH
SUPER WHITE 2,040
SU. WHITE PM.,051
SILVER ME.,1C0
BLACK MC.,209
RED MC.,3M8
PALE ROSE ME.OP.,3N7
CHAMPAGNE ME.,586
DK.BLUE M.M.,8P4
BLUE M.M.,8P5
SU. WHITE PM.,051
SILVER ME.,1C0
BLACK MC.,209
RED M.M.,3N8
BEIGE ME.,4P7
JADE GREEN M.M.,6S9
9010506185
main90105-06185
9015450005
main90154-50005
10 parts on this diagram · 1 diagram in section
MIRROR for Toyota OPA
This section contains 10 genuine Toyota parts for the MIRROR system of the Toyota OPA. Key components include: STAY SUB-ASSY, OUTER REAR VIEW MIRROR, UPPER RH, STAY SUB-ASSY, OUTER REAR VIEW MIRROR, UPPER LH, MIRROR ASSY, INNER REAR VIEW, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH.
