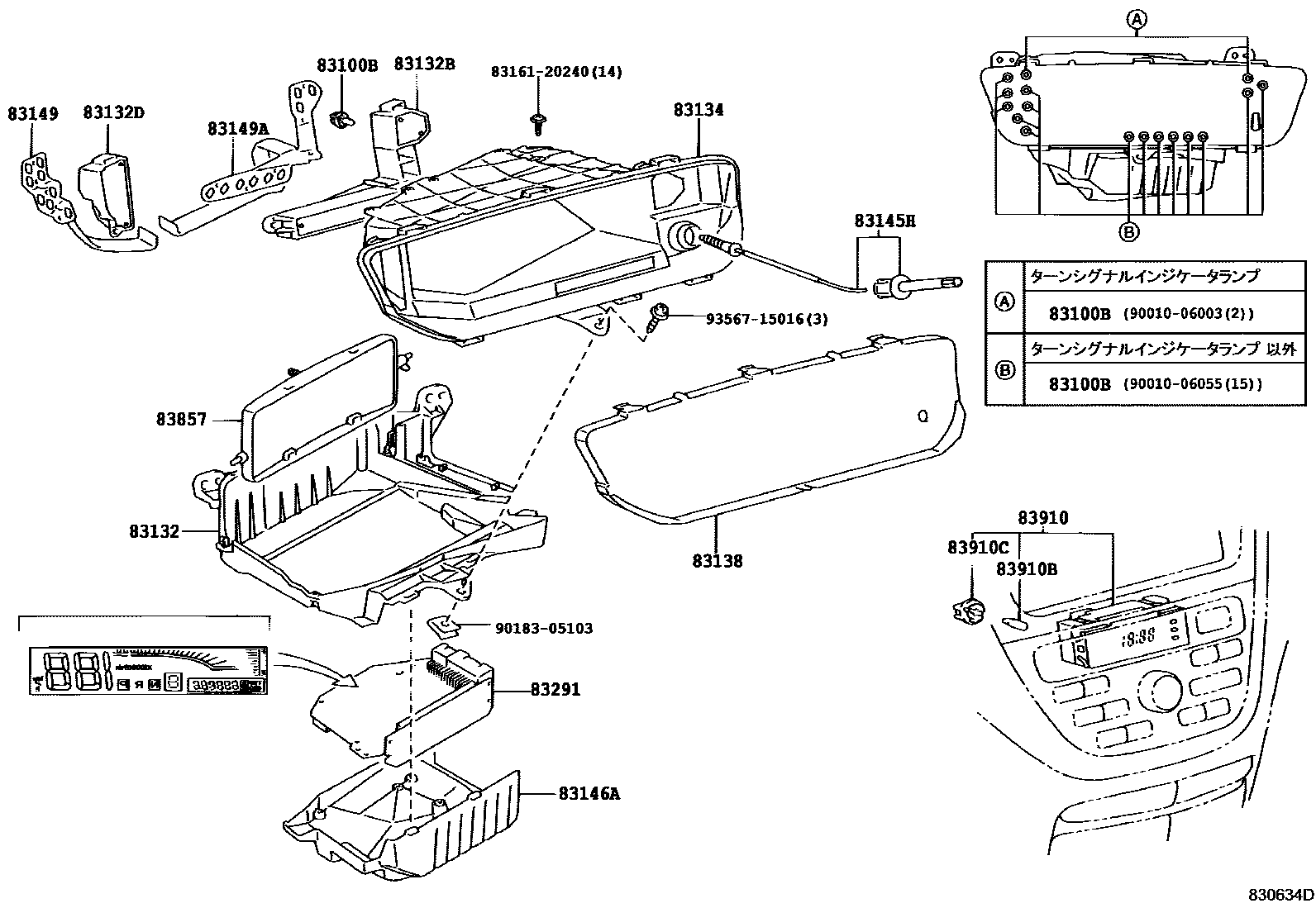

Toyota OPA — METER

0001 1 0002 1

83100BBULB, COMBINATION METER, NO.1

main90010-06003iACT10,ZCT1#200004-200205

main90010-06055iACT10,ZCT1#200004-200205

83132CASE, COMBINATION METER

main83841-63010iACT10,ZCT1#200004-200205

main83841-63060iACT10,ZCT1#200205

83132BCASE, COMBINATION METER NO.3

main83843-63010iACT10,ZCT1#200004-200205

83132DCASE, COMBINATION METER, NO.2

main83841-63020iACT10200008-200205

main83842-63010iZCT1#200004-200205

83134COVER, COMBINATION METER, NO.1

main83821-63010iACT10,ZCT1#200004-200205

main83821-63060iACT10,ZCT1#200205

83138GLASS, SPEEDOMETER

main83852-63010iACT10,ZCT1#200004-200205

83145LENS, METER, NO.1

main83831-63060iACT10,ZCT1#200205

83145HKNOB, COMBINATION METER

main83808-63010iACT10,ZCT1#200004-200205

83146ACOVER, SPEEDMETER

main83845-63010iACT10,ZCT1#200004-200205

83149PLATE, METER CIRCUIT

main83861-63010iACT10,ZCT1#200004-200205

83149APLATE, METER CIRCUIT, NO.2

main83862-63010iACT10,ZCT1#200004-200205

83291COMPUTER, COMBINATION METER

main83291-63010iACT10,ZCT1#200004-200205

main83291-63020iACT10..I200008-200205

main83291-63040iACT10,ZCT1#200205

main83291-63050iACT10200205

83857REFLECTOR, COMBINATION METER, NO.1

main83857-63010iACT10,ZCT1#200004-200205

83910CLOCK ASSY

main83910-44020iACT10,ZCT1#200205

main83910-63010iACT10,ZCT1#200004-200205

83910BBULB, CLOCK INDICATOR

main90072-02004iACT10,ZCT1#200004-200205

83910CSOCKET SUB-ASSY, CLOCK BULB

main90072-01003iACT10,ZCT1#200004-200205

8316120240CASE, COMBINATION METER MIRROR, NO.1

main83161-20240

9018305103

main90183-05103

9356715016

main93567-15016

19 parts on this diagram · 2 diagrams in section
