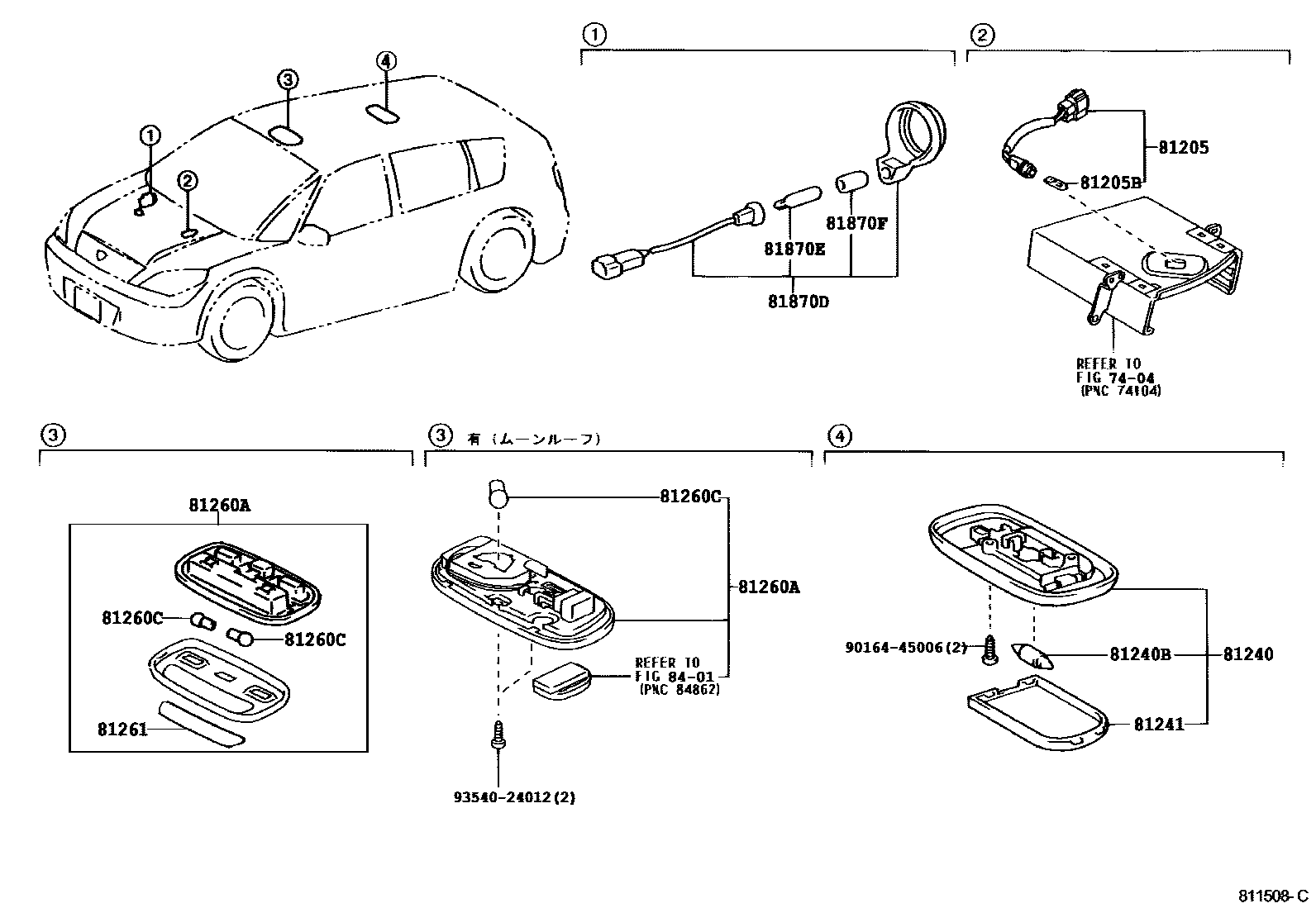

Toyota OPA — INTERIOR LAMP

7404ASH RECEPTACLE

→ Go to FIG 74-04

81205LAMP SUB-ASSY, ASH RECEPTACLE

main81850-63010i200108-200205

81205BBULB, ASH RECEPTACLE LAMP

main90981-11014i200108-200205

81240LAMP ASSY, ROOM, NO.1

main81240-12060-B3i200004-200205

LT.GRAY,TRIM1#

main81240-12060-P0i200205

LT.GRAY,TRIM1#

81240BBULB, ROOM LAMP, NO.1

main90981-14011i200004-200205

81241LENS, ROOM LAMP, NO.1

main81241-12020i200004-200205

81260ALAMP ASSY, MAP

main81260-16061-B0i200004-200205

LT.GRAY,TRIM1#

main81260-16061-B3i200205

LT.GRAY,TRIM1#

main81260-63010-B0i200205

81260CBULB(FOR MAP LAMP)

main90981-12005×2i200004-200205

main90981-12014i200205

81261LENS AND COVER, MAP LAMP

main81261-16060i200004-200205

81870DLAMP ASSY, KEY CYLINDER

main81870-32060i200004-200205

81870EBULB, KEY CYLINDER LAMP

main90981-11014i200004-200205

81870FCAP, KEY CYLINDER LAMP BULB

main84998-10070i200004-200205

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9016445006

main90164-45006

9354024012

main93540-24012

15 parts on this diagram · 1 diagram in section

INTERIOR LAMP for Toyota OPA

This section contains 15 genuine Toyota parts for the INTERIOR LAMP system of the Toyota OPA. Key components include: ASH RECEPTACLE, LAMP SUB-ASSY, ASH RECEPTACLE, BULB, ASH RECEPTACLE LAMP, LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1.
