Toyota OPA — INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

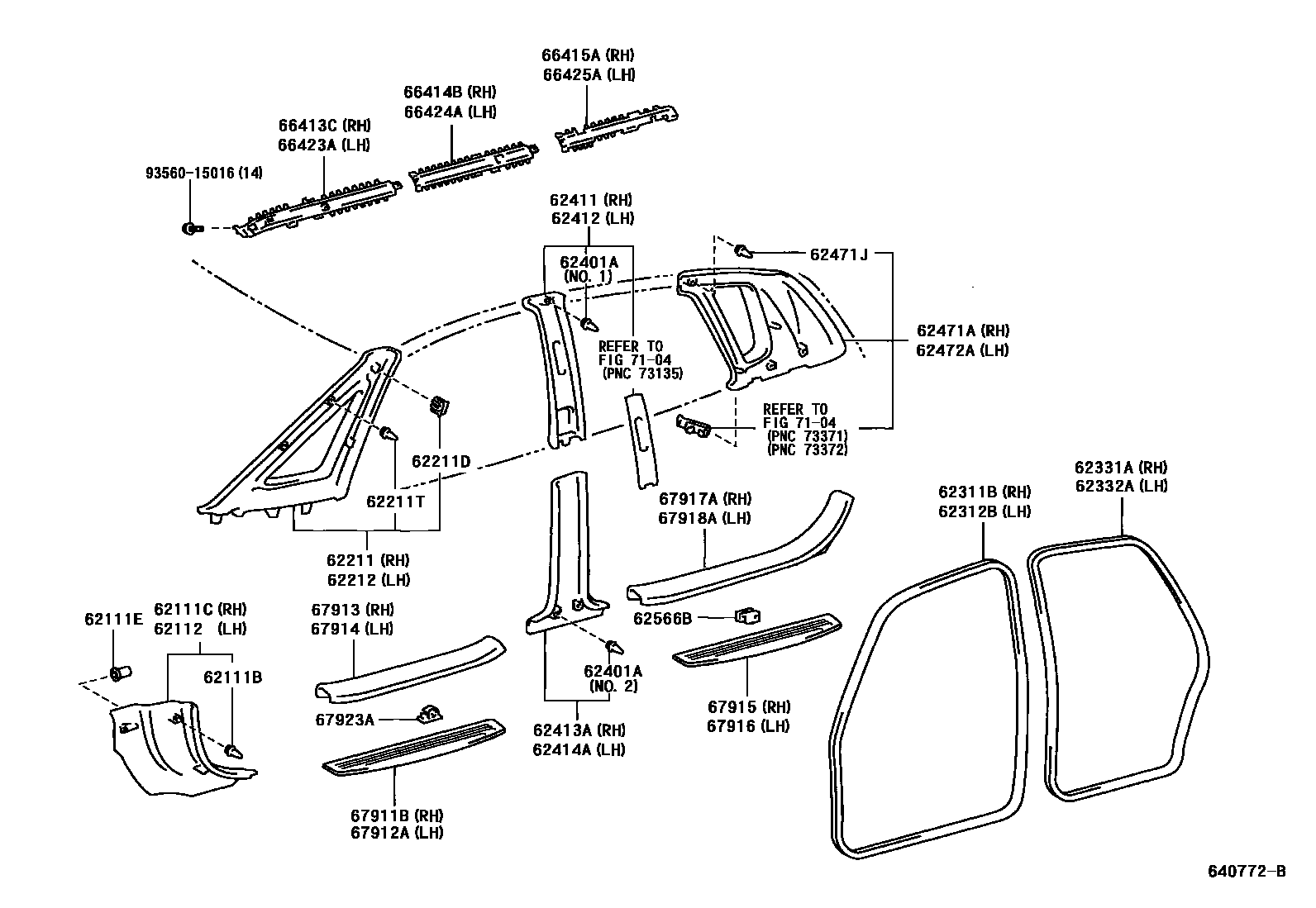

Parts diagram
62111BCLIP(FOR COWL SIDE TRIM)
main67771-35010i200004-200108
sub67771-42010
main90467-10161i200108-200205
62111CBOARD, COWL SIDE TRIM, RH
main62111-63020-B0i200004-200205
LT.GRAY,TRIM1#
62111ERETAINER, COWL SIDE TRIM
main90467-06158-C0i200004-200205
BLACK,TRIM1#
62112BOARD, COWL SIDE TRIM, LH
main62112-63020-B0i200004-200205
LT.GRAY,TRIM1#
62211GARNISH, FRONT PILLAR, RH
main62210-63010-B0i200004-200108
LT. GRAY,TRIM1#
sub62210-63020
main62210-63020-B2i200108-200205
LIGHT GRAY,TRIM1#
main62210-63030-B0i200205
LT. GRAY,TRIM1#
62211DCLIP(FOR FRONT BODY PILLAR GARNISH)
main90468-06082i200004-200205
62211TCLIP(FOR FRONT PILLAR GARNISH)
main67771-35010i200004-200108
sub67771-42010
main90467-10161i200108-200205
62212GARNISH, FRONT PILLAR, LH
main62220-63010-B0i200004-200108
LT. GRAY,TRIM1#
sub62220-63020
main62220-63020-B2i200108-200205
LIGHT GRAY,TRIM1#
main62220-63030-B0i200205
LT. GRAY,TRIM1#
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
main62311-63010-B0i200004-200205
LT.GRAY,TRIM1#
main62311-63020-B1i200205
LT. GRAY,TRIM1#
sub62311-63010
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
main62312-63010-B0i200004-200205
LT.GRAY,TRIM1#
main62312-63020-B1i200205
LT. GRAY,TRIM1#
sub62312-63010
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
main62331-63010-B0i200004-200205
LT.GRAY,TRIM1#
main62331-63020-B1i200205
LT. GRAY,TRIM1#
sub62331-63010
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
main62332-63010-B0i200004-200205
LT.GRAY,TRIM1#
main62332-63020-B1i200205
LT. GRAY,TRIM1#
sub62332-63010
62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)
main67771-35010i200004-200205
NO.1 OR NO.2
sub67771-42010
main67771-35010i200205
NO.1
sub67771-42010
main90467-10161i200205
NO.2
62411GARNISH, CENTER PILLAR, RH
main62410-63010-B1i200004-200108
LT. GRAY,TRIM1#
main62410-63020-B2i200108-200205
LIGHT GRAY,TRIM1#
sub62410-63020
main62410-63020-B3i200205
LT. GRAY,TRIM1#
sub62410-63020
62412GARNISH, CENTER PILLAR, LH
main62420-63010-B1i200004-200108
LT. GRAY,TRIM1#
main62420-63020-B2i200108-200205
LIGHT GRAY,TRIM1#
sub62420-63020
main62420-63020-B3i200205
LT. GRAY,TRIM1#
sub62420-63020
62413AGARNISH, CENTER PILLAR, LOWER RH
main62413-63010-B0i200004-200205
LT.GRAY,TRIM1#
62414AGARNISH, CENTER PILLAR, LOWER LH
main62414-63010-B0i200004-200205
LT.GRAY,TRIM1#
62471AGARNISH, ROOF SIDE, INNER RH
main62471-63010-B1i200004-200108
LT. GRAY,TRIM1#
sub62471-63020
main62471-63020-B2i200108-200205
LIGHT GRAY,TRIM1#
sub62471-63020
main62471-63020-B3i200205
LT. GRAY,TRIM1#
sub62471-63020
62471JCLIP (FOR ROOF SIDE GARNISH)
main67771-35010i200004-200205
sub67771-42010
62472AGARNISH, ROOF SIDE, INNER LH
main62472-63010-B1i200004-200108
LT. GRAY,TRIM1#
sub62472-63020
main62472-63020-B2i200108-200205
LIGHT GRAY,TRIM1#
sub62472-63020
main62472-63020-B3i200205
LT. GRAY,TRIM1#
sub62472-63020
62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1
main62566-32010i200004-200205
66413CSPACER, SIDE RAIL, FRONT RH
main66413-63010i200004-200205
main66413-63020i200205
66414BSPACER, SIDE RAIL, REAR RH
main66414-63010i200004-200205
main66414-63020i200205
66415ASPACER, SIDE RAIL, REAR NO.2 RH
main66415-63010i200004-200205
main66415-63020i200205
66423ASPACER, SIDE RAIL, FRONT LH
main66423-63010i200004-200205
main66423-63020i200205
66424ASPACER, SIDE RAIL, REAR LH
main66424-63010i200004-200205
main66424-63020i200205
66425ASPACER, SIDE RAIL, REAR NO.2 LH
main66425-63010i200004-200205
main66425-63020i200205
67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH
main67911-63010-C0i200004-200205
BLACK,TRIM1#
sub67911-47020
67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH
main67911-63010-C0i200004-200205
BLACK,TRIM1#
sub67911-47020
67913PLATE, FRONT DOOR SCUFF, RH
main67913-63010-B0i200004-200205
LT.GRAY,TRIM1#
67914PLATE, FRONT DOOR SCUFF, LH
main67914-63010-B0i200004-200205
LT.GRAY,TRIM1#
67915PLATE, REAR DOOR SCUFF, OUTSIDE RH
main67915-63010-C0i200004-200205
BLACK,TRIM1#
sub67915-47020
67916PLATE, REAR DOOR SCUFF, OUTSIDE LH
main67915-63010-C0i200004-200205
BLACK,TRIM1#
sub67915-47020
67917APLATE, REAR DOOR SCUFF, RH
main67917-63010-B0i200004-200205
LT.GRAY,TRIM1#
67918APLATE, REAR DOOR SCUFF, LH
main67918-63010-B0i200004-200205
LT.GRAY,TRIM1#
67923ACLAMP, DOOR SCUFF PLATE, NO.1
main67923-32050i200004-200205
7104
9356015016
main93560-15016

38 parts on this diagram · 1 diagram in section
