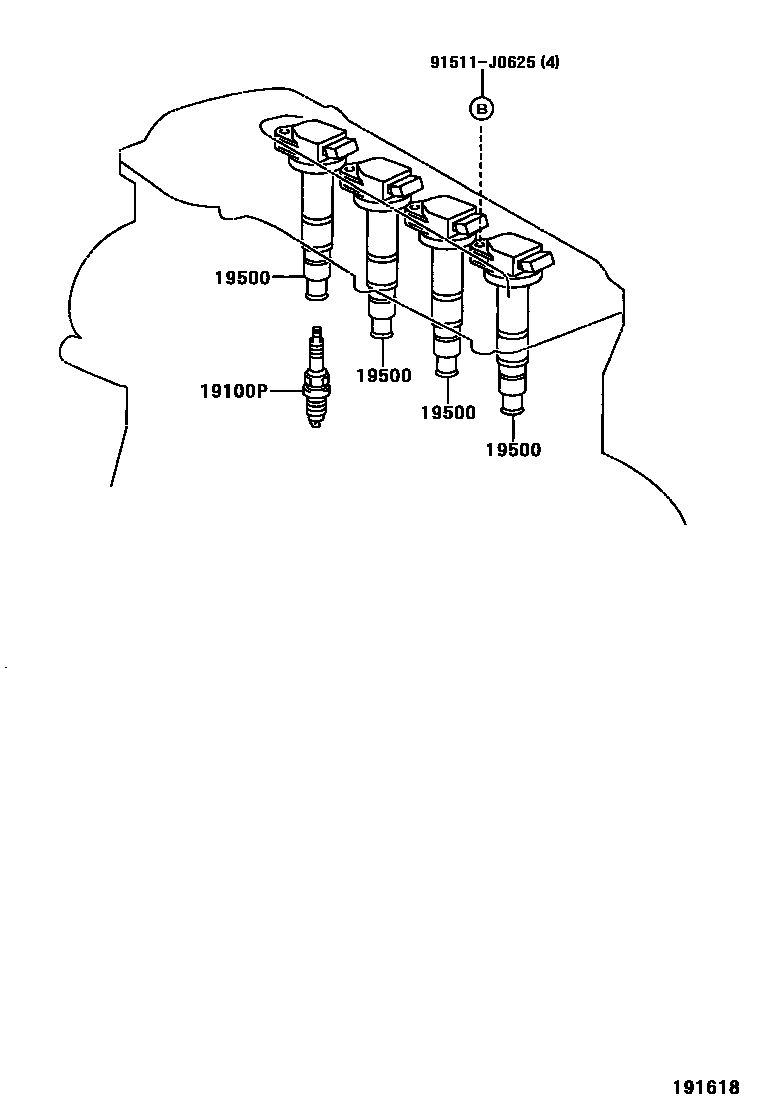

Toyota OPA — IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1

19100PPLUG, SPARK

main90919-01164i1ZZFE..ZCT1#200004-200205

main90919-01221i1AZFSE..ACT10200008-200205

19500COIL ASSY, IGNITION

main90080-19015i1ZZFE..ZCT1#200502

sub90919-02262

main90080-19019i1ZZFE..ZCT1#200502

sub90919-W2001

main90919-02239i1ZZFE..ZCT1#200502

sub90919-02262

main90919-02239i1ZZFE..ZCT1#200004-200502

sub90919-02262

main90919-02247i1AZFSE..ACT10200008-200209

sub90919-02248

main90919-02248i1AZFSE..ACT10200204-200205

sub90919-02260

main90919-T2002i1ZZFE..ZCT1#200502

sub90919-T2006

91511J0625

main91511-J0625

3 parts on this diagram · 2 diagrams in section
