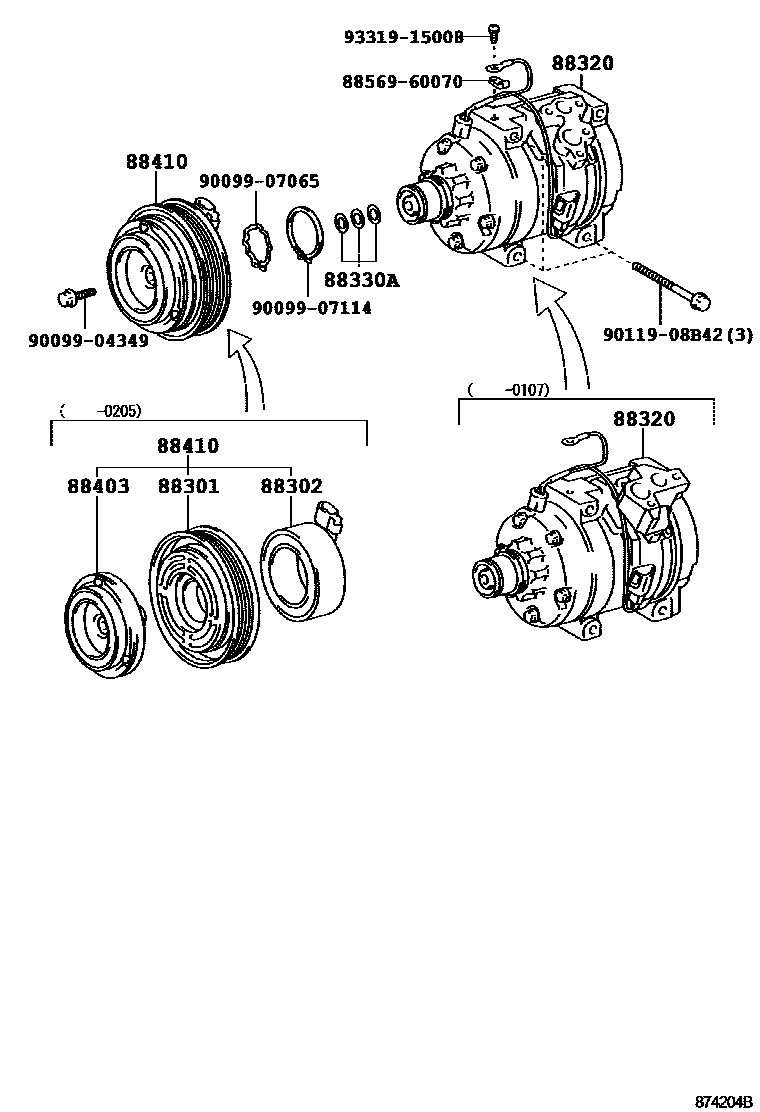

Toyota OPA — HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-32120iZCT1#200004-200205

main88412-42010iACT10200008-200205

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-44010iACT10,ZCT1#200004-200205

88320COMPRESSOR ASSY, COOLER

main88320-2B430iZCT1#200205

main88320-32250iACT10200107-200205

main88320-63010iZCT1#200004-200107

main88320-63020iACT10200008-200107

main88320-63030iZCT1#200107-200205

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iACT10,ZCT1#200004-200205

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-32010iACT10,ZCT1#200004-200205

88410CLUTCH ASSY, MAGNET

main88410-02110iZCT1#200205

main88410-32200iZCT1#200004-200205

main88410-42040iACT10200008-200205

8856960070CLAMP (FOR COOLER RELAY)

main88569-60070

9009904349

main90099-04349

9009907065

main90099-07065

9009907114

main90099-07114

9011908B42

main90119-08B42

9331915008

main93319-15008

12 parts on this diagram · 2 diagrams in section
