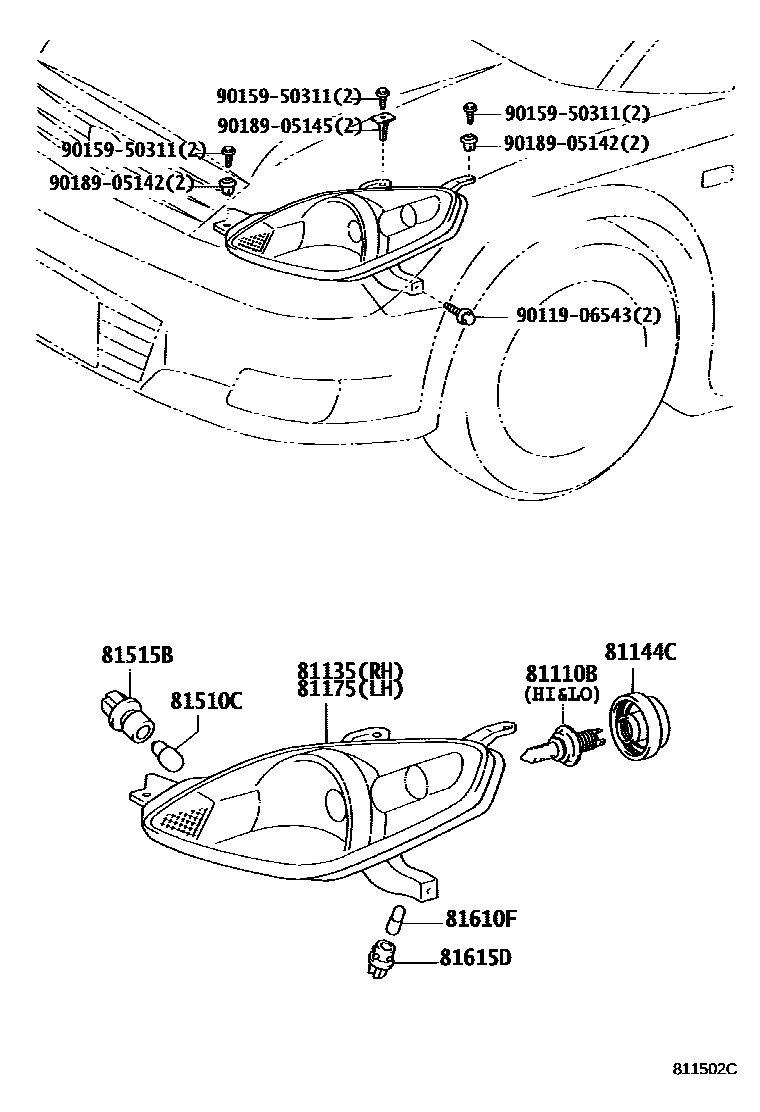

Toyota OPA — HEADLAMP

0001 1 0002 1 0003 1������-�� �������� 0004 1

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13058iACT10,ZCT1#200205-200504

main90981-22004iACT10,ZCT1#200004-200205

sub90981-13055

81135UNIT ASSY, HEADLAMP, RH

main81130-63010iACT10,ZCT1#200004-200205

main81130-63020iACT10,ZCT1#..I200008-200205

81144COVER, HEADLAMP, NO.1

main81135-63040iACT10,ZCT1#200205

81144CCOVER, HEADLAMP SOCKET

main90075-65002iACT10,ZCT1#200004-200205

81175UNIT ASSY, HEADLAMP, LH

main81170-63010iACT10,ZCT1#200004-200205

main81170-63020iACT10..I200008-200205

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15011iACT10,ZCT1#200004-200205

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028iACT10,ZCT1#200004-200205

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050iACT10,ZCT1#200004-200205

81615DSOCKET, CLEARANCE LAMP

main90075-60001iACT10,ZCT1#200004-200205

9011906543

main90119-06543

9015950311

main90159-50311

9018905142

main90189-05142

9018905145

main90189-05145

13 parts on this diagram · 4 diagrams in section
