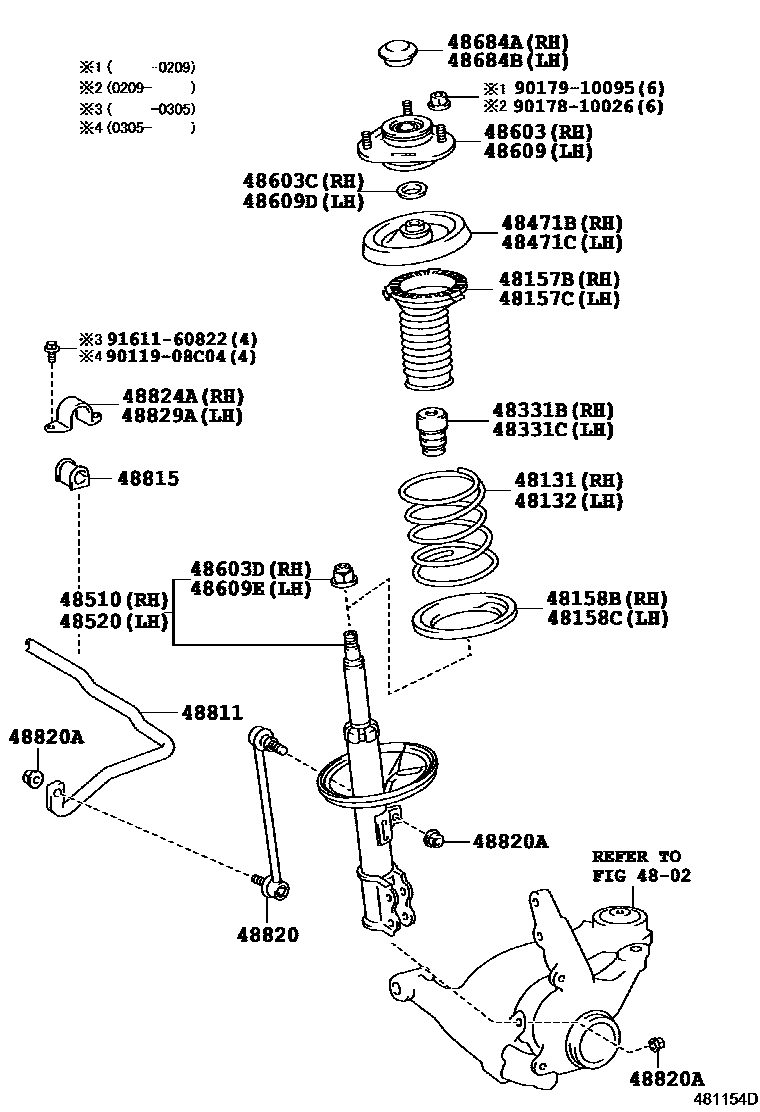

Toyota OPA — FRONT SPRING & SHOCK ABSORBER

4802

48131SPRING, FRONT COIL, RH

main48131-63010iZCT10200004-200205

main48131-63020iACT10200008-200205

main48131-63030iZCT15200004-200205

48132SPRING, FRONT COIL, LH

main48131-63010iZCT10200205

main48131-63020iACT10200008-200205

main48131-63030iZCT15200004-200205

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-47010iACT10,ZCT1#200205

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-47010iACT10,ZCT1#200004-200103

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-47010iACT10,ZCT1#200004-200205

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-47010iACT10,ZCT1#200205

48331BBUMPER, FRONT SPRING, RH

main48331-63010iZCT10200205

main48331-63020iACT10,ZCT15200205

48331CBUMPER, FRONT SPRING, LH

main48331-63010iZCT10200004-200103

main48331-63020iACT10,ZCT15200004-200205

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48044-47010iACT10,ZCT1#200004-200205

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48044-47010iACT10,ZCT1#200004-200103

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-69135iZCT10200004-200205

main48510-69145iACT10200008-200205

main48510-69155iZCT15200205-200405

main48510-69275iZCT15200405

main48510-80228iACT10200405

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-69015iZCT10200004-200205

main48520-69025iACT10200205-200405

main48520-69035iZCT15200205-200405

main48520-69115iACT10200405

main48520-69125iZCT15200405

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-63010iACT10,ZCT1#200004-200205

48603CSEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)

main90303-22002iACT10,ZCT1#200204-200205

main90303-22049iACT10,ZCT1#200004-200204

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90179-14015iACT10,ZCT1#200004-200205

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-63010iACT10,ZCT1#200205

48609DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)

main90303-22002iACT10,ZCT1#200204-200205

main90303-22049iACT10,ZCT1#200004-200103

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90179-14015iACT10,ZCT1#200205

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-12070iACT10,ZCT1#200004-200205

main48684-52010iACT10,ZCT1#200212

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-12070iACT10,ZCT1#200103-200205

main48684-52010iACT10,ZCT1#200212

48811BAR, STABILIZER, FRONT

main48811-32290iACT10,ZCT10200004-200205

main48811-32300iZCT15200205

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-20280×2iACT10,ZCT1#200004-200205

48820LINK ASSY, FRONT STABILIZER

main48820-32010×2iACT10,ZCT1#200004-200205

48820ANUT(FOR FRONT STABILIZER LINK)

main90179-10183×4iACT10,ZCT1#200004-200205

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-26210iACT10,ZCT1#200004-200205

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-26210iACT10,ZCT1#200004-200205

9011908C04

main90119-08C04

9017810026

main90178-10026

9017910095

main90179-10095

9161160822

main91611-60822

31 parts on this diagram · 1 diagram in section
