Toyota OPA — FRONT SEAT & SEAT TRACK

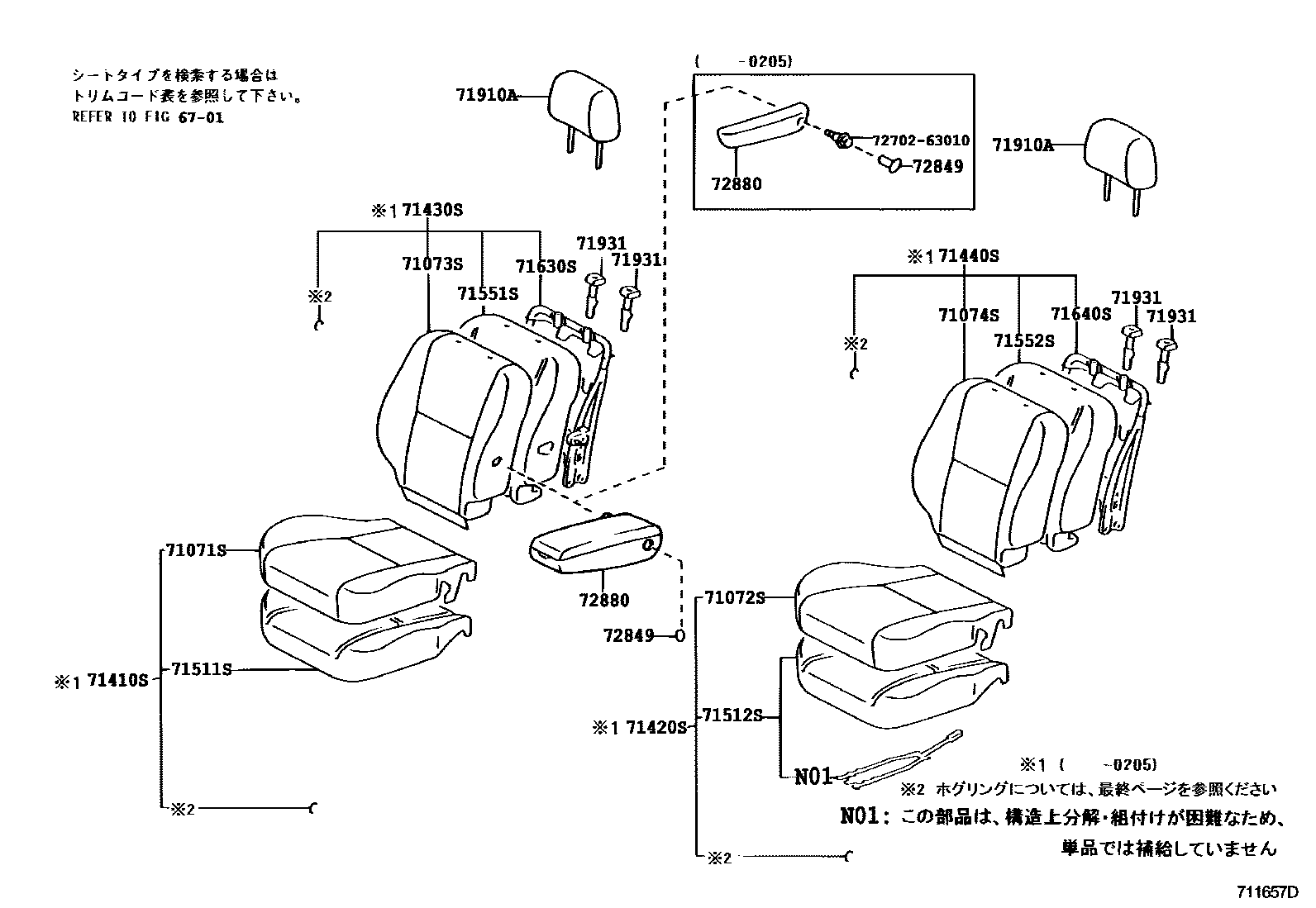

Parts diagram
6701
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-63010-B0i200004-200108
main71071-63011-B1i200108-200205
sub71071-63011
main71071-63011-B2i200205-200504
sub71071-63011
main71071-63020-B1i200004-200108
main71071-63021-B2i200108-200205
sub71071-63021
main71071-63021-B4i200205-200504
sub71071-63021
main71071-63030-B1i200008-200205
sub71071-63030
main71071-63030-B2i200205-200504
sub71071-63030
main71071-63040-B1i200004-200205
sub71071-63040
main71071-63040-B2i200205-200504
sub71071-63040
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-63010-B2i200004-200108
main71072-63011-B3i200108-200205
sub71072-63011
main71072-63011-B4i200205-200504
sub71072-63011
main71072-63020-B1i200004-200108
main71072-63021-B2i200108-200205
sub71072-63021
main71072-63021-B4i200205-200504
sub71072-63021
main71072-63030-B0i200008-200205
sub71072-63030
main71072-63030-B1i200205-200504
sub71072-63030
main71072-63040-B1i200004-200205
sub71072-63040
main71072-63040-B2i200205-200504
sub71072-63040
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-63010-B1i200004-200101
main71073-63011-B1i200101-200108
main71073-63012-B2i200108-200205
main71073-63020-B1i200004-200101
main71073-63021-B1i200101-200108
main71073-63022-B2i200108-200205
main71073-63030-B1i200004-200101
main71073-63031-B1i200101-200108
main71073-63032-B2i200108-200205
main71073-63040-B1i200008-200101
main71073-63041-B1i200101-200205
main71073-63050-B1i200004-200101
main71073-63051-B1i200101-200205
main71073-63060-B0i200205-200504
main71073-63070-B1i200205-200504
main71073-63080-B0i200205-200504
main71073-63090-B0i200205-200504
main71073-63100-B0i200205-200504
main71073-63110-B0i200205-200504
main71073-63120-B0i200205-200504
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-63010-B4i200004-200101
main71074-63011-B4i200101-200108
main71074-63012-B5i200108-200205
main71074-63012-B5i200108-200504
main71074-63020-B1i200004-200101
main71074-63021-B1i200101-200108
main71074-63022-B2i200108-200504
main71074-63030-B1i200008-200101
main71074-63031-B1i200101-200504
main71074-63040-B0i200205-200504
main71074-63050-B1i200008-200101
main71074-63050-B1i200004-200101
main71074-63051-B1i200101-200504
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71410-63010-B0i200004-200108
main71410-63011-B1i200108-200205
main71410-63020-B0i200004-200108
main71410-63021-B1i200108-200205
main71410-63040-B0i200008-200205
main71410-63050-B0i200004-200205
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
main71420-63010-B0i200004-200108
main71420-63011-B1i200108-200205
main71420-63020-B0i200004-200108
main71420-63021-B1i200108-200205
main71420-63030-B0i200008-200205
main71420-63040-B0i200004-200205
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71430-63010-B1i200004-200101
sub71430-63011
main71430-63011-B0i200101-200108
main71430-63012-B1i200108-200205
main71430-63020-B1i200004-200101
sub71430-63021
main71430-63021-B0i200101-200108
main71430-63022-B1i200108-200205
main71430-63030-B1i200004-200101
sub71430-63031
main71430-63031-B0i200101-200108
main71430-63032-B1i200108-200205
main71430-63040-B1i200008-200101
sub71430-63041
main71430-63041-B0i200101-200205
main71430-63050-B1i200004-200101
sub71430-63051
main71430-63050-B1i200008-200101
sub71430-63051
main71430-63051-B0i200101-200205
main71430-63051-B0i200101-200205
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71440-63010-B3i200004-200101
sub71440-63011
main71440-63011-B0i200101-200108
main71440-63012-B1i200108-200205
main71440-63020-B1i200004-200101
sub71440-63021
main71440-63021-B0i200101-200108
main71440-63022-B1i200108-200205
main71440-63030-B1i200008-200101
sub71440-63031
main71440-63031-B0i200101-200205
main71440-63031-B0i200108-200205
main71440-63040-B1i200008-200101
sub71440-63041
main71440-63040-B1i200004-200101
sub71440-63041
main71440-63041-B0i200101-200205
main71440-63041-B0i200101-200205
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-63010i200004-200504
main71511-63020i200008-200205
main71511-63020i200004-200205
main71511-63020i200205-200504
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71502-12020i200108-200504
main71502-63011i200004-200108
main71502-63020i200004-200006
main71502-63021i200006-200108
sub71502-52030
main71502-63022i200004-200205
main71502-63022i200108-200205
main71502-63022i200205-200504
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-63010i200005-200101
sub71551-63012
main71551-63012i200101-200504
main71551-63020i200004-200101
sub71551-63021
main71551-63021i200101-200205
main71551-63030i200008-200101
sub71551-63031
main71551-63031i200101-200205
main71551-63050i200205-200504
main71551-63060i200205-200504
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71551-63010i200004-200101
sub71551-63012
main71551-63012i200101-200504
main71551-63030i200008-200101
sub71551-63031
main71551-63031i200101-200504
71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71630-47010i200004-200101
main71630-47010i200004-200101
main71630-63020i200004-200101
sub71630-63021
main71630-63021i200101-200205
main71630-63030i200101-200504
main71630-63040i200205-200504
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71640-63010i200004-200101
sub71640-63011
main71640-63011i200101-200504
71910AHEADREST ASSY, FRONT SEAT
main71910-63010-B1i200004-200108
main71910-63010-B1i200004-200108
main71910-63011-B4i200108-200504
main71910-63011-B4i200108-200504
main71910-63020-B0i200004-200108
main71910-63020-B0i200004-200108
main71910-63021-B4i200108-200504
main71910-63021-B4i200108-200504
main71910-63030-B3i200004-200108
main71910-63030-B3i200004-200108
main71910-63031-B4i200108-200504
main71910-63031-B4i200108-200504
main71910-63040-B1i200008-200504
71931SUPPORT, FRONT SEAT HEADREST
main71930-47010-B1i200004-200504
sub71930-47010
sub71930-44020
main71930-47010-B1i200004-200504
sub71930-47010
sub71930-44020
main71930-47010-B2i200008-200504
sub71930-47010
sub71930-44020
main71930-47010-B2i200008-200504
sub71930-47010
sub71930-44020
main71931-47010-B1i200004-200504
sub71931-47010
sub71931-42020
main71931-47010-B1i200004-200504
sub71931-47010
sub71931-42020
main71931-47010-B2i200008-200504
sub71931-47010
sub71931-42020
main71931-47010-B2i200008-200504
sub71931-47010
sub71931-42020
72849CAP, SEAT ARMREST, NO.2
main72849-63010-B0i200004-200205
LT.GRAY,TRIM1#
main72849-63020-B0i200205-200504
main72849-63020-B1i200205-200504
72880ARMREST ASSY, SEAT, C RH
main72880-63010-B0i200004-200108
LT. GRAY,TRIM1#
main72880-63011-B1i200108-200205
110B,TRIM1#
main72880-63020-B0i200004-200108
LT. GRAY,TRIM1#
main72880-63021-B1i200108-200205
LT.GRAY,TRIM1#
main72880-63030-B1i200205-200504
main72880-63040-B2i200205-200504
main72880-63050-B1i200205-200504
7270263010BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-63010

20 parts on this diagram · 3 diagrams in section
