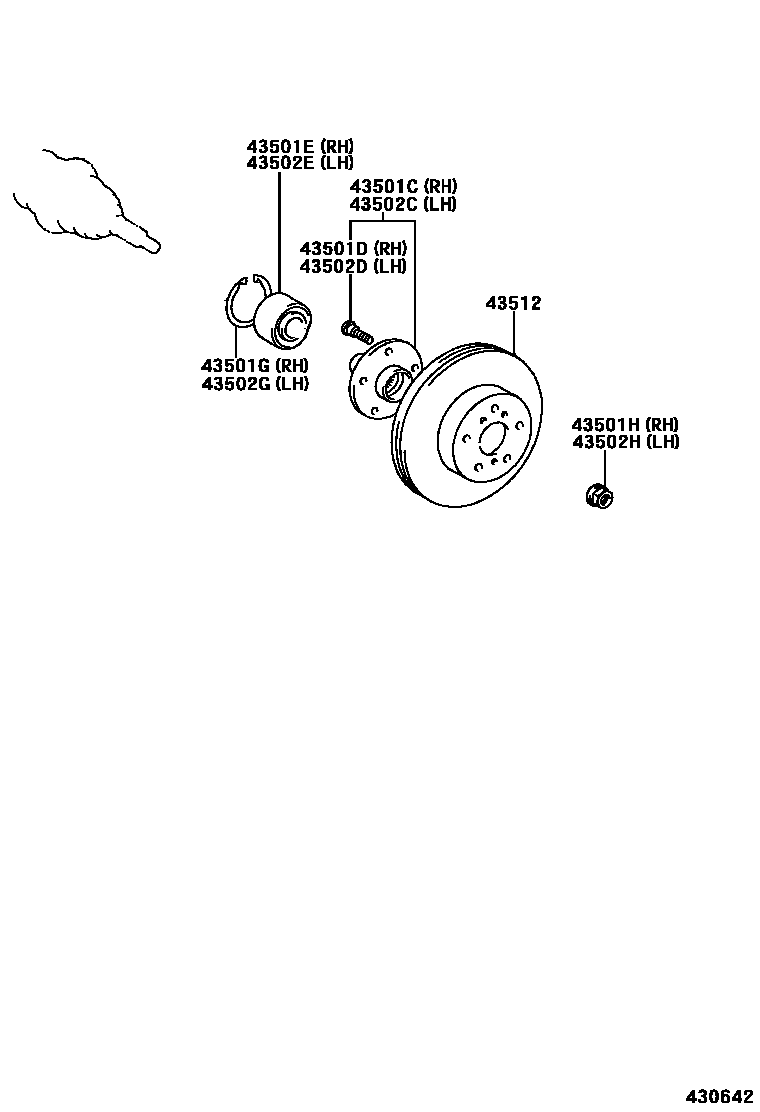

Toyota OPA — FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-32080iACT10,ZCT1#200004-200504

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iACT10,ZCT1#200004-200205

43501EBEARING (FOR FRONT AXLE HUB RH)

main90363-40066iACT10,ZCT1#200004-200205

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-79002iACT10,ZCT1#200004-200205

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iACT10,ZCT1#200004-200205

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-32080iACT10,ZCT1#200004-200504

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iACT10,ZCT1#200004-200205

43502EBEARING (FOR FRONT AXLE HUB LH)

main90363-40066iACT10,ZCT1#200004-200205

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-79002iACT10,ZCT1#200004-200205

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iACT10,ZCT1#200004-200205

43512DISC, FRONT

main43512-20711iZCT15;ACT10,ZCT10..I200401

main43512-32300iZCT10;ACT10..A200004-200402

sub43512-32301

main43512-32301iZCT10200402

sub43512-20701

main43512-63010iACT10,ZCT15200205-200401

sub43512-20711

main43512-63010iZCT15;ACT10..I200004-200205

sub43512-20711

11 parts on this diagram · 1 diagram in section
