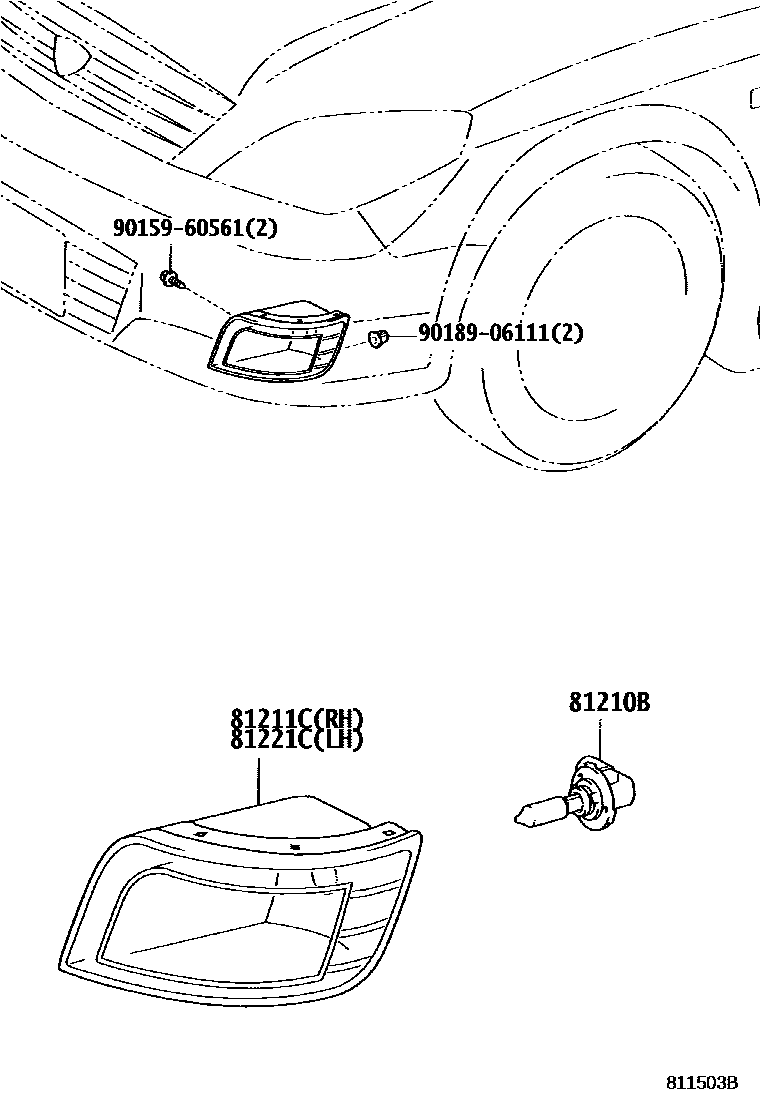

Toyota OPA — FOG LAMP

81210BBULB, FOG LAMP

main90080-81040iACT10,ZCT1#..I200004-200205

sub90981-13047

main90981-13047iACT10,ZCT1#..I200205

81211CLAMP UNIT, FOG LAMP, RH

main81211-63010iACT10,ZCT1#..I200004-200205

sub81211-63020

main81211-63020iACT10,ZCT1#..I200205

81221CLAMP UNIT, FOG LAMP, LH

main81221-63010iACT10,ZCT1#..I200004-200205

sub81221-63020

main81221-63020iACT10,ZCT1#..I200205

9015960561

main90159-60561

9018906111

main90189-06111

5 parts on this diagram · 1 diagram in section
