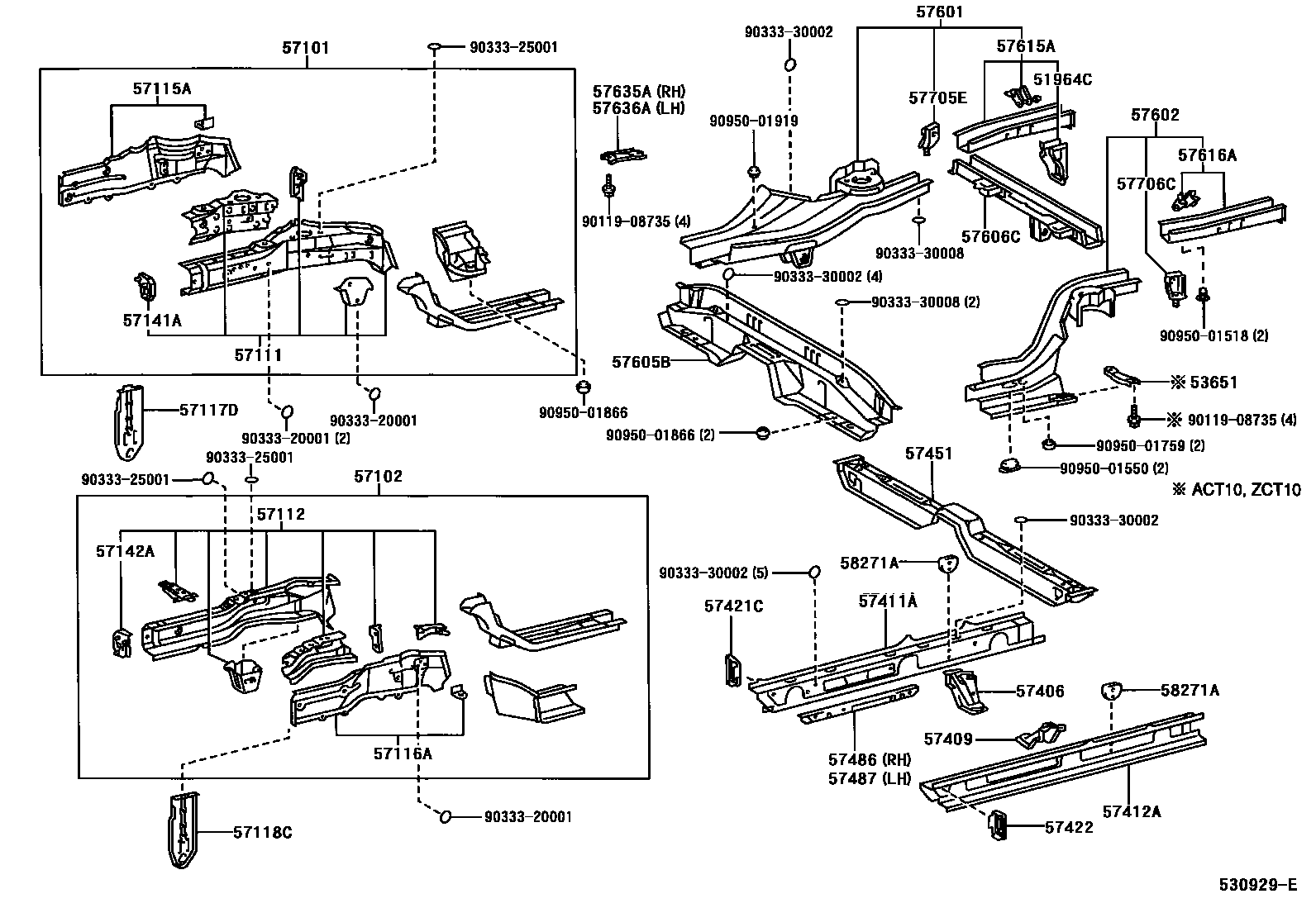

Toyota OPA — FLOOR SIDE MEMBER
51964CHOOK, TRANSPORT, REAR LH
53651BRACE, REAR FLOOR SIDE MEMBER
57101MEMBER SUB-ASSY, FRONT SIDE, RH
57102MEMBER SUB-ASSY, FRONT SIDE, LH
57111MEMBER, FRONT SIDE, RH
57112MEMBER, FRONT SIDE, LH
57115APLATE, FRONT SIDE MEMBER, OUTER RH
57116APLATE, FRONT SIDE MEMBER, OUTER LH
57117DRETAINER, FRONT BUMPER ARM, RH
57118CRETAINER, FRONT BUMPER ARM, LH
57141ASUPPORT, FRONT BUMPER ARM, RH
57142ASUPPORT, FRONT BUMPER ARM, LH
57406MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57409MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57411AMEMBER, FLOOR SIDE, INNER RH
57412AMEMBER, FLOOR SIDE, INNER LH
57421CPLATE, FLOOR SIDE RAIL, RH
57422PLATE, FLOOR SIDE RAIL, LH
57451MEMBER, FRONT FLOOR CROSS
57486REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH
57487REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57615AMEMBER, REAR FLOOR SIDE, REAR RH
sub57615-63902
57616AMEMBER, REAR FLOOR SIDE, REAR LH
sub57616-63902
57635AREINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR RH
57636AREINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR LH
57705EBRACKET SUB-ASSY, REAR SUSPENSHION MEMBER MOUNTING, RR RH
57706CBRACKET SUB-ASSY, REAR SUSPENSION MEMBER MOUNTING, RR LH
58271AREINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.3
9011908735
main90119-08735
9033320001
main90333-20001
9033325001
main90333-25001
9033330002
main90333-30002
9033330008
main90333-30008
9095001518
main90950-01518
9095001550
main90950-01550
9095001759
main90950-01759
9095001866
main90950-01866
9095001919
main90950-01919
42 parts on this diagram · 2 diagrams in section
