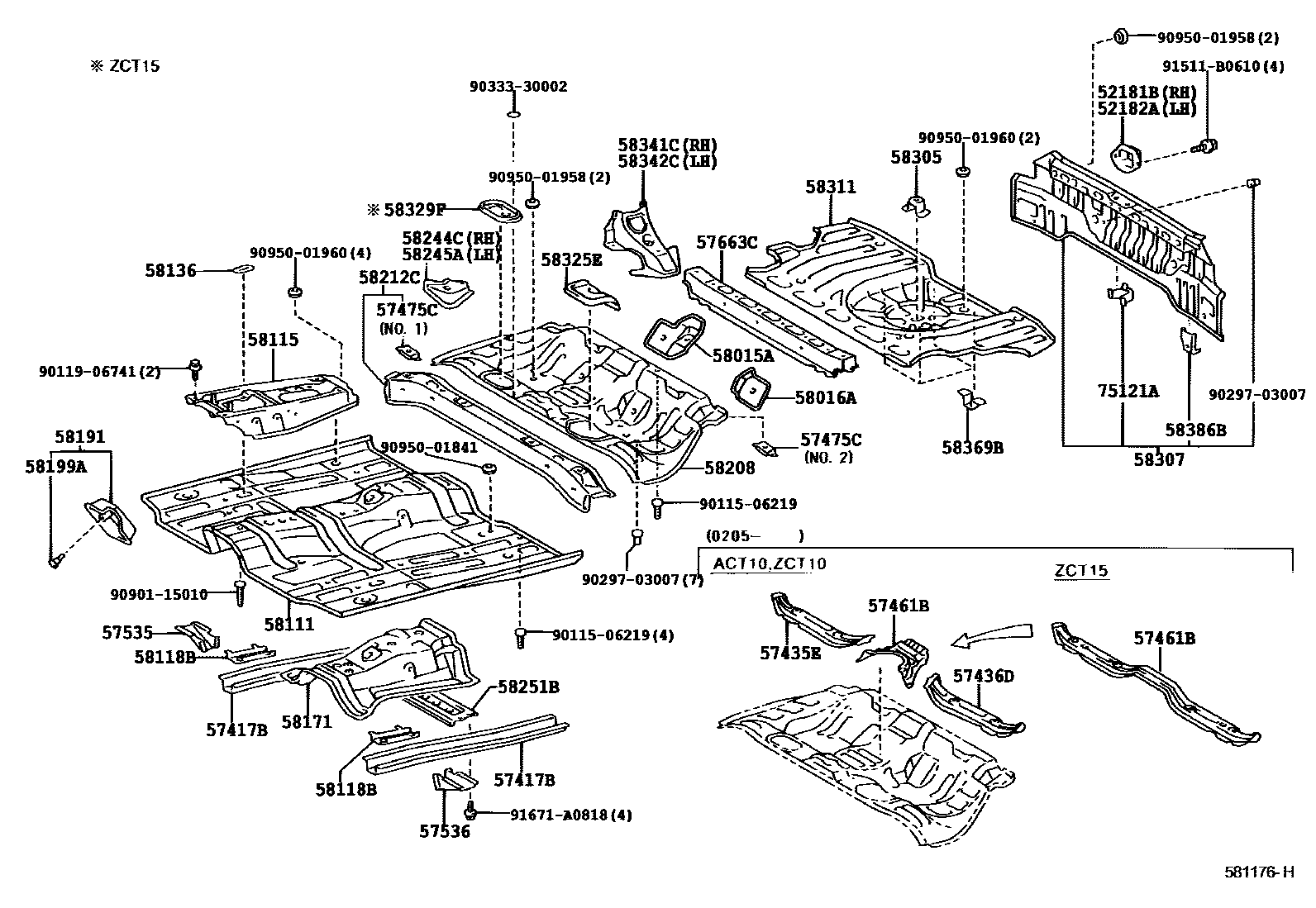

Toyota OPA — FLOOR PAN & LOWER BACK PANEL
52181BARM, REAR BUMPER, RH
52182AARM, REAR BUMPER, RH
57417BREINFORCEMENT, FRONT FLOOR UNDER
57435EMEMBER, CENTER FLOOR SIDE, RH
57436DMEMBER, CENTER FLOOR SIDE, LH
57461BMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1
57475CPLATE, FRONT FLOOR CROSSMEMBER
57535BRACE, FRONT FLOOR, RH
57536BRACE, FRONT FLOOR, LH
57663CMEMBER, REAR FLOOR CROSS, CENTER
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT
58118BREINFORCEMENT, FRONT FLOOR PANEL, NO.2
58136COVER, FRONT FLOOR HOLE
58171REINFORCEMENT, PARKING BRAKE BASE
58191FOOTREST, FRONT FLOOR
58199ACLIP, FOOTREST, NO.2
58212CPAN, CENTER FLOOR, FRONT
58244CBRACKET, REAR SEAT CUSHION MOUNTING, RH
58245ABRACKET, REAR SEAT HINGE, CENTER NO.1
58251BBRACE, FLOOR PANEL, FRONT
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58329FCOVER, REAR FLOOR SERVICE HOLE, NO.2
58341CBRACKET, REAR ABSORBER MOUNTING, NO.1 RH
58342CBRACKET, REAR ABSORBER MOUNTING, NO.1 LH
58369BBRACKET, FUEL TUBE, NO.3
58386BBRACKET, REAR BUMPER COVER, NO.2
75121ABRACKET, REAR LICENSE PLATE
9011506219
main90115-06219
9011906741
main90119-06741
9029703007
main90297-03007
9033330002
main90333-30002
9090115010
main90901-15010
9095001841
main90950-01841
9095001958
main90950-01958
9095001960
main90950-01960
91511B0610
main91511-B0610
91671A0818
main91671-A0818
44 parts on this diagram · 1 diagram in section
